50-1000PCS 2W 6V 3V 1W 350mA 3535 SMD LED Replace LG Innotek LCD TV Back Light Beads TV Backlight Diode Repair Application
3535 6V 2W:

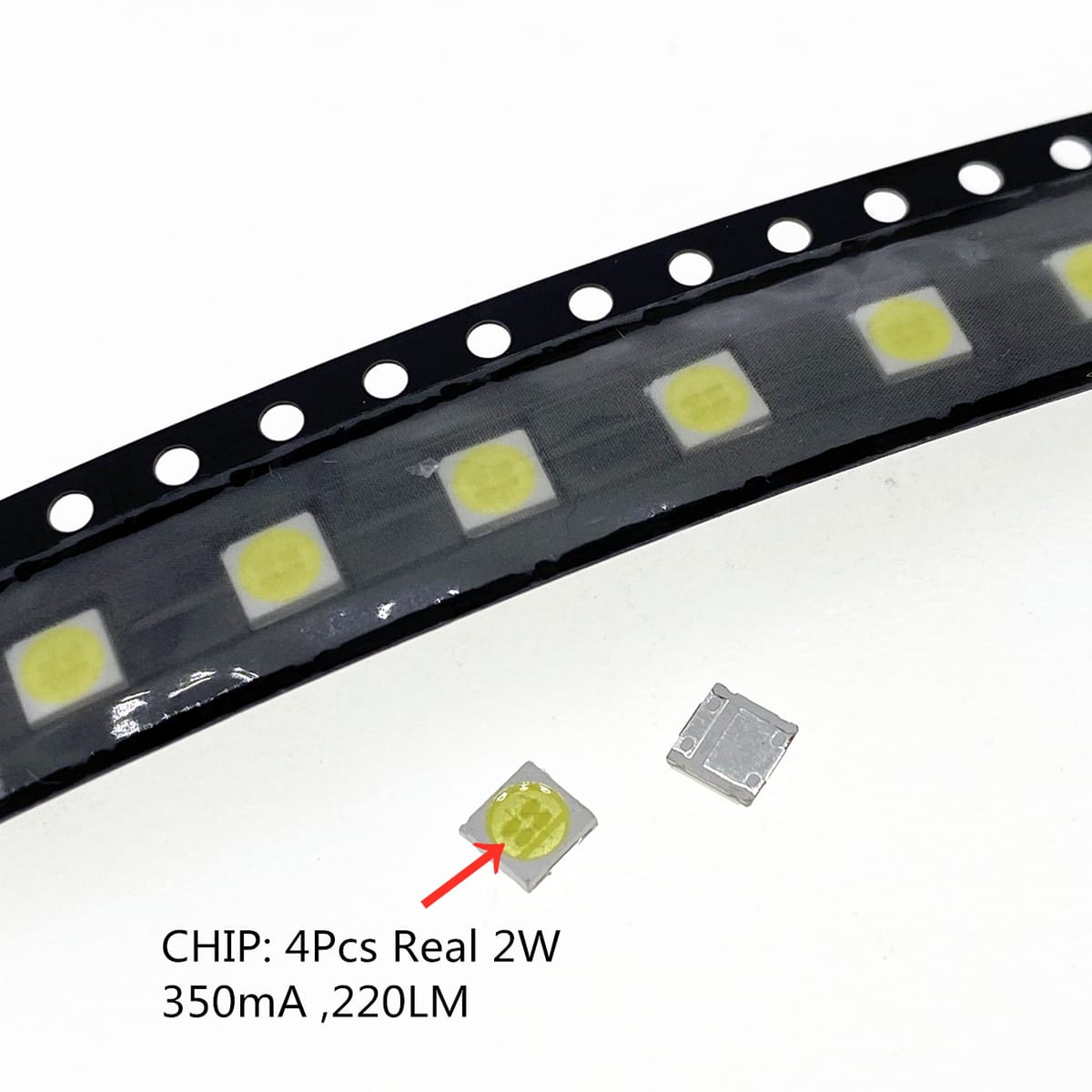

Notice: 3535 6V2W is high quality with 4 Chips, only 4 Chips can reach 350mA , Real 2W (220LM)!
Lead Frame Type LED Package: 3.5×3.5×0.65 mm L×W×H d=mm
Forward Current (IF ): 500mAPulse Forward Curren t1 (IFp): 800mAReverse Current (IR): 50mAReverse Voltage (VR): V (mA)Power Dissipation (PD): 2WOperatin Tgemperature (Topr): -40 - +85 °CStorage Temperature (Tstg): -40 - +100 °CSoldering Temperature (Tsld): Reflow Soldering:260 °Cfor 10secsHand Soldering:350 °Cfor 3secsJunctio Tnemperature (Tj ): 162°CForward Voltage (VF): 6.0-6.8V (350mA)Luminous Flux (LM): 150lm (350mA)Luminous Intensity ( IV ) : cd (350mA)Wavelength (nm) : -nm mACIE : x=0.255 y=0.223 (350mA)Color Correlated Temperature (CCT):CRI :Viewing angle : 120°
,
