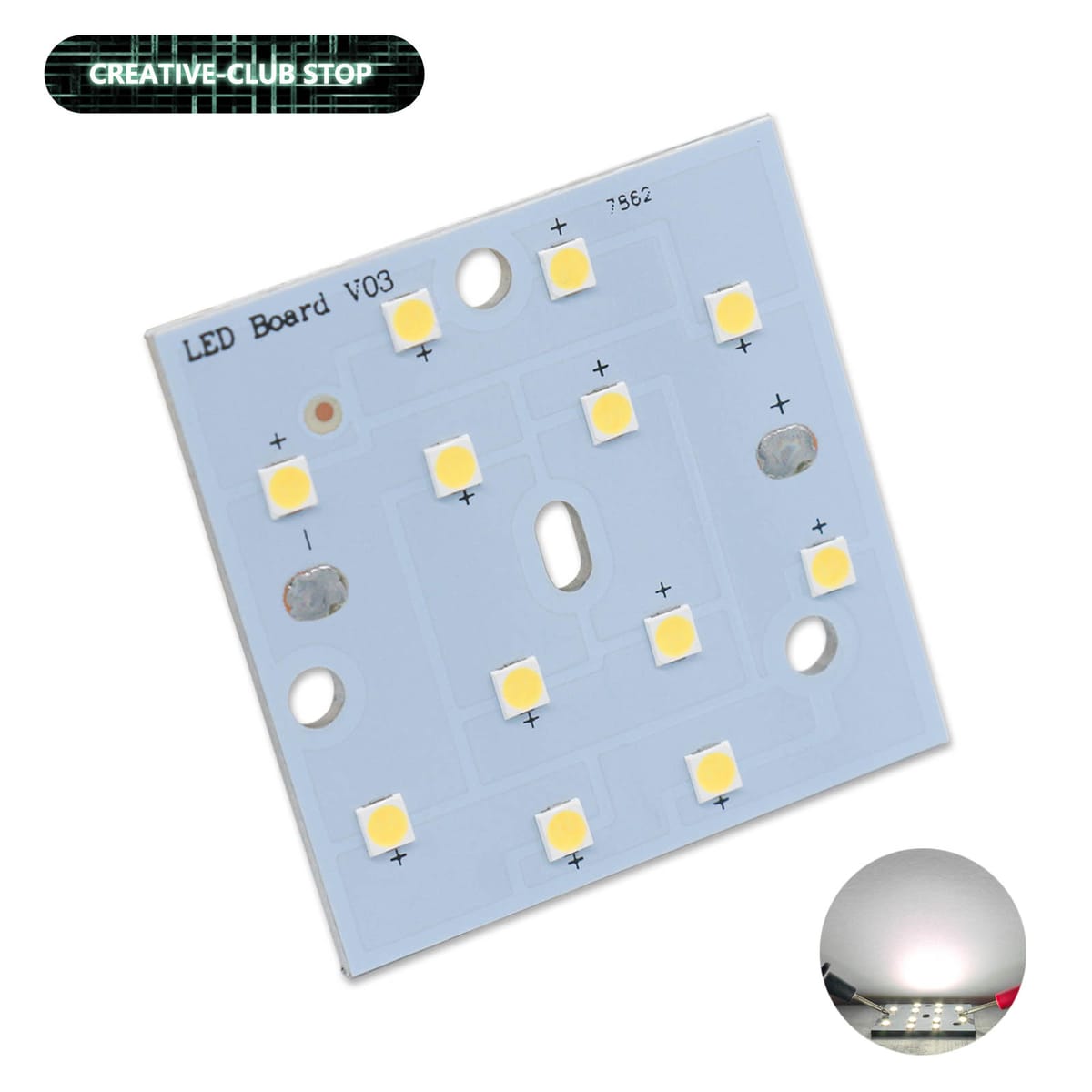

42*42mm SMD DC24V Highlight LED Lamp Board Light Source 300mA Universal Lamp Beads 8W White Light High Heat Dissipation Aluminum

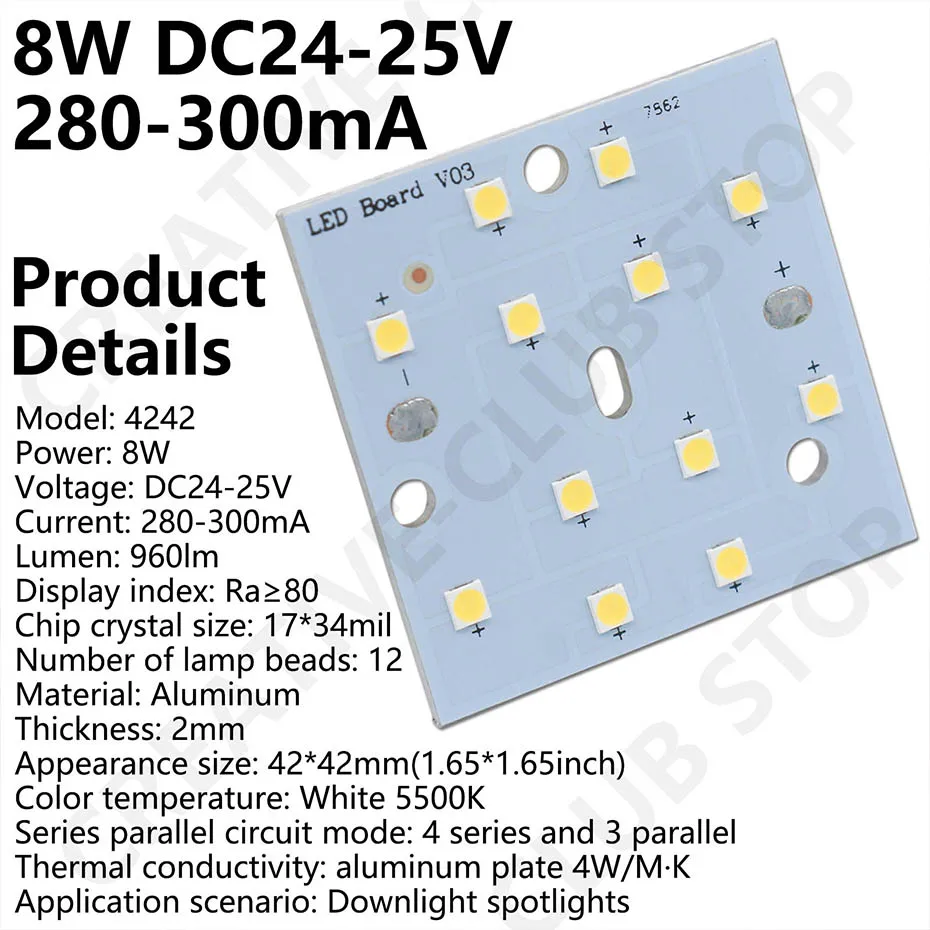

Product details
Model: 4242
Power: 8W
Voltage: DC24-25V
Current: 280-300mA
Lumen: 960lm
Display index: Ra≥80
Chip crystal size: 17*34mil
Number of lamp beads: 12
Material: Aluminum
Thickness: 2mm

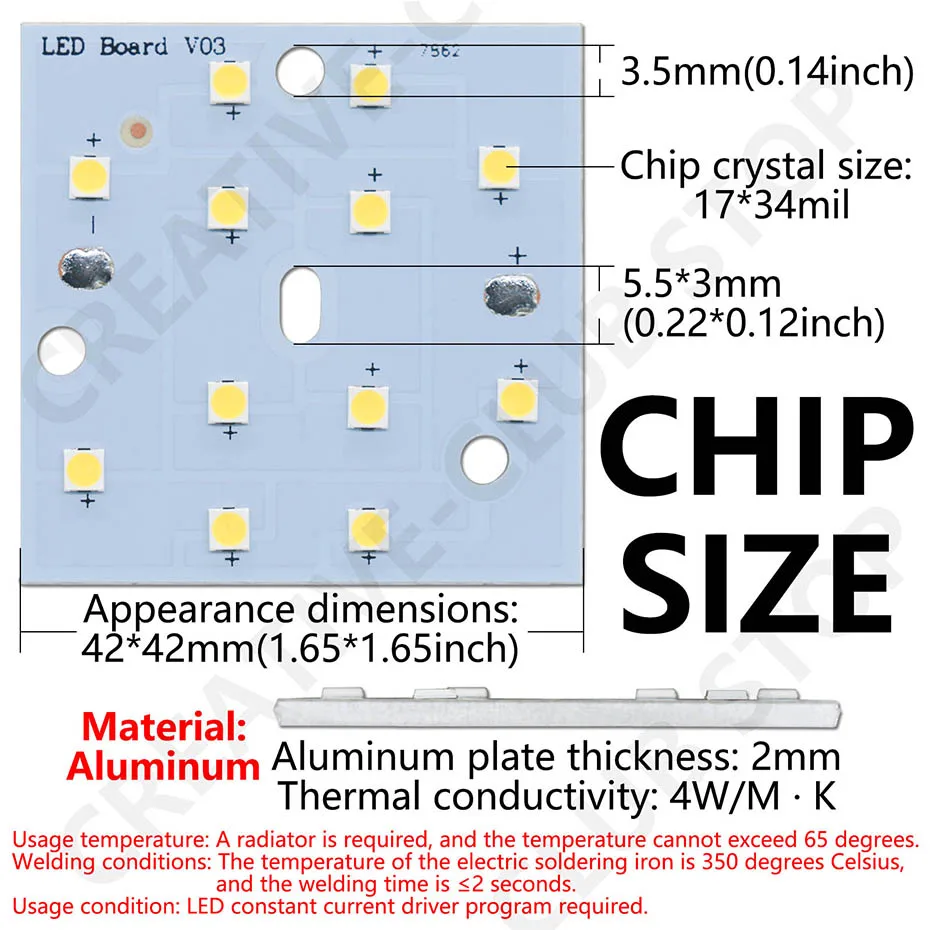

Appearance size: 42*42mm(1.65*1.65inch)

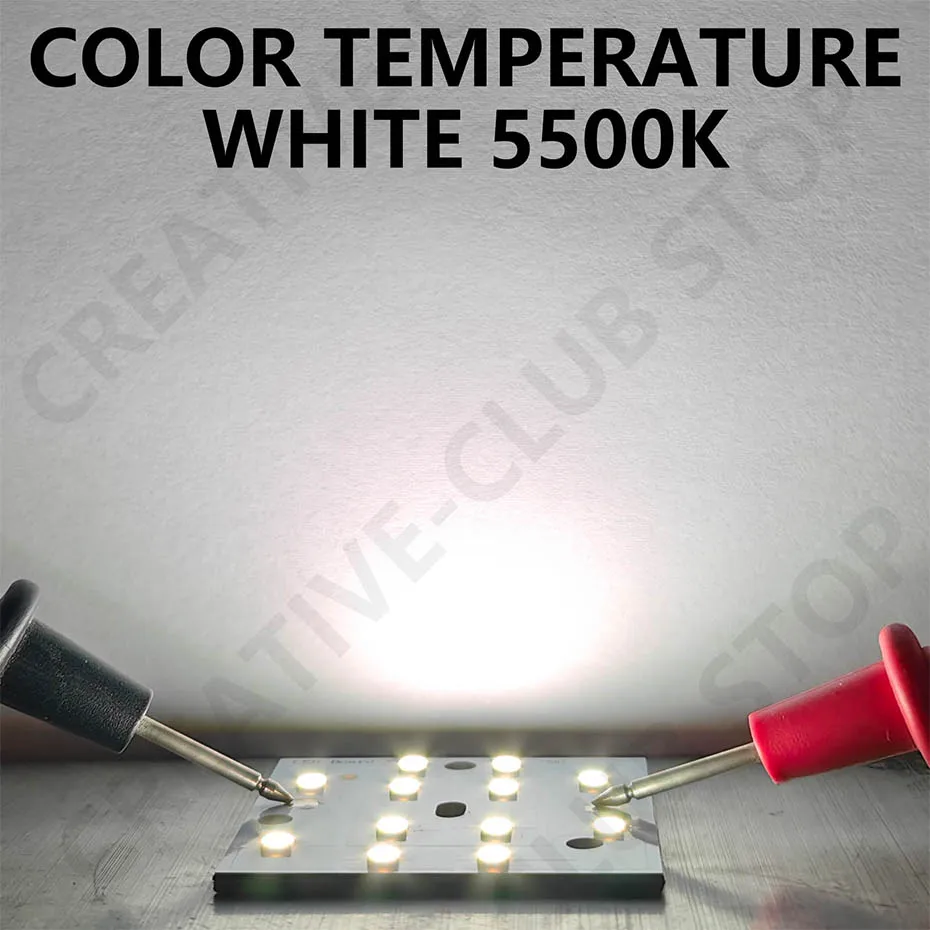

Color temperature: White 5500K
Series parallel circuit mode: 4 series and 3 parallel

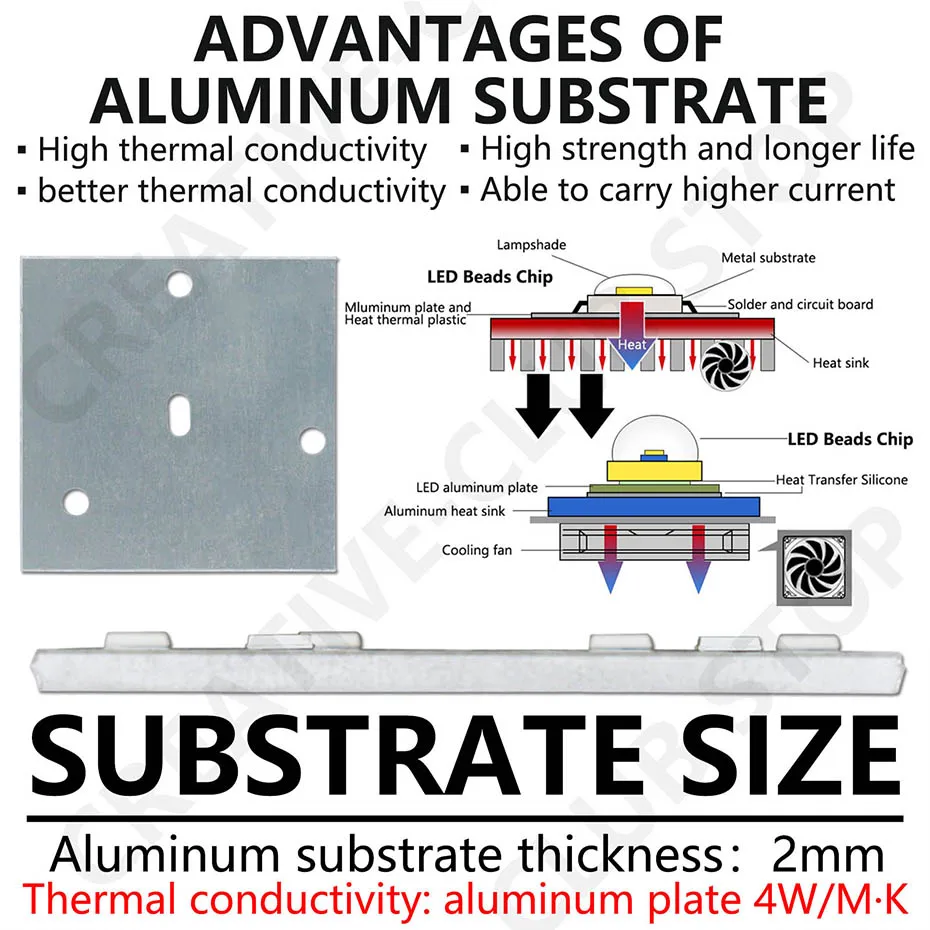

Thermal conductivity: aluminum plate 4W/M·K
Application scenario: Downlight spotlights
Usage temperature: A radiator is required, and the temperature cannot exceed 65 degrees.
Welding conditions: The temperature of the electric soldering iron is 350 degrees Celsius, and the welding time is ≤2 seconds.
Usage condition: LED constant current driver program required.
,
