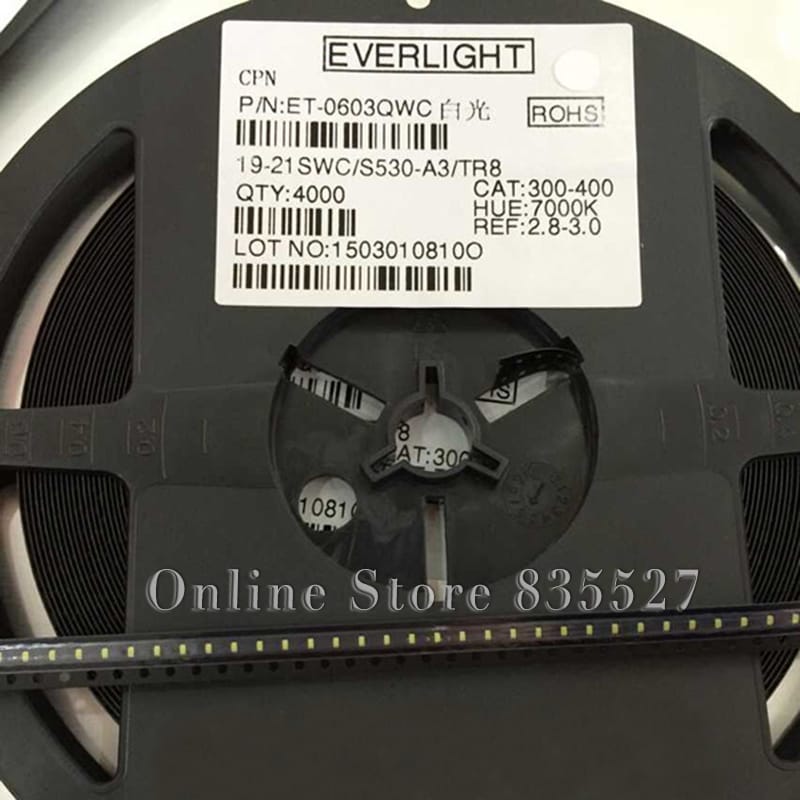

4000PCS/LOT ( Make EVER LIGHT ) 1608 0603 white 300-400mcd SMD LED lamp beads bright LED light emitting diode
This shop franchise IC LED diode / transistor / capacitor / resistance and other electronic components, a wide range of products, can not be recorded, please consult the owner!! You only need give list for the parts, then I will offer the best price to you.
0603 highlight white
I. features:L emitting color: whiteL core material: InGaN/GaN blueL 1.6mm x 0.8 mm * 0.8 mmL has high light intensity, low power consumption, high reliability and long service lifeL complies with EU Directive on RoHS2. use:Mobile phones, LCD backlight, automotive instrument lighting, and surface mount electronic products.3. limit parameter (TA=25 DEG C):
| parameter | minimum value | Maximum value | unit |
| 正向电流 IF |
| 25 | mA |
| 正向脉冲电流 IFP* |
| 100 | mA |
| 反向电压 VR |
| 5 | V |
| 工作温度 TOPR | -30 | +85 | ℃ |
| 贮存温度 TSTG | -40 | +85 | ℃ |
| 功 耗 PD |
| 120 | mW |
* Note: pulse width 0.1ms, duty cycle 1/10.
4. photoelectric parameters（TA=25℃）：
| parameter | condition | unit | minimum value | Typical value | Maximum value | |
| 正向电压VF | IF=20mA | V | 3.0 | 3.3 |
| |
| 反向电流IR | VR=5V | μA |
|
| 50 | |
| 色度坐标 | X | IF=20mA |
|
| 0.3 |
|
| Y |
| 0.3 |
| |||
| 半波宽度△λ | IF=20mA |
|
| 30 |
| |
,
