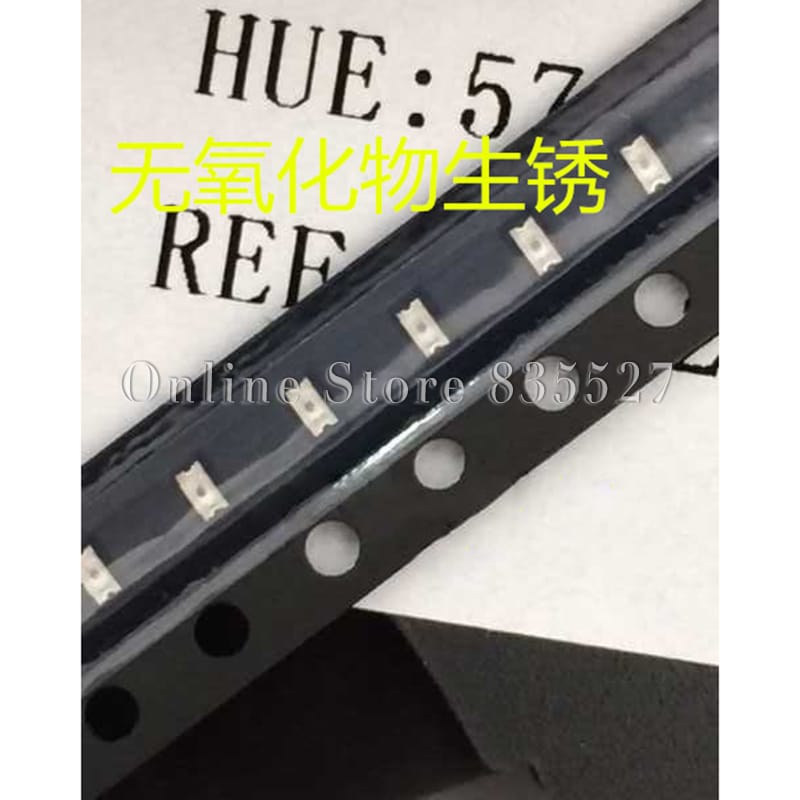

4000pcs/lot LED 0603 1608 SMD light beads bright ordinary green / yellow green LED light emitting diode
This shop franchise IC LED diode / transistor / capacitor / resistance and other electronic components, a wide range of products, can not be recorded, please consult the owner!! You only need give list for the parts, then I will offer the best price to you.
I. features:L. luminous color: yellow greenL. core material:L. 1.6mm x 0.8 mm * 0.55 mm LEDL. has high light intensity, low power consumption, high reliability and long service lifeL. complies with EU Directive on RoHS2, use:Mobile phones, LCD backlight, automotive instrument lighting, and surface mount electronic products.3, limit parameter (TA=25 DEG C):
| parameter | minimum value | Maximum value | unit |
| 正向电流 IF |
| 25 | mA |
| 正向脉冲电流 IFP* |
| 100 | mA |
| 反向电压 VR |
| 5 | V |
| 工作温度 TOPR | -30 | +85 | ℃ |
| 贮存温度 TSTG | -40 | +85 | ℃ |
| 功 耗 PD |
| 120 | mW |
* Note: pulse width 0.1ms, duty cycle 1/10.
4. Photoelectric parameters（TA=25℃）：
| Parameter name | condition | unit | minimum value | Typical value | Maximum value | |
| 正向电压VF | IF=20mA | V |
| 3.2 | 4.0 | |
| 反向电流IR | VR=5V | μA |
|
| 50 | |
| 波段nm | IF=20mA |
| 568 |
|
| |
|
|
|
| 575 | |||
| 光 强IV | IF=20mA | mcd | 40 | 50 | 60 | |
5.Outline size:
,
