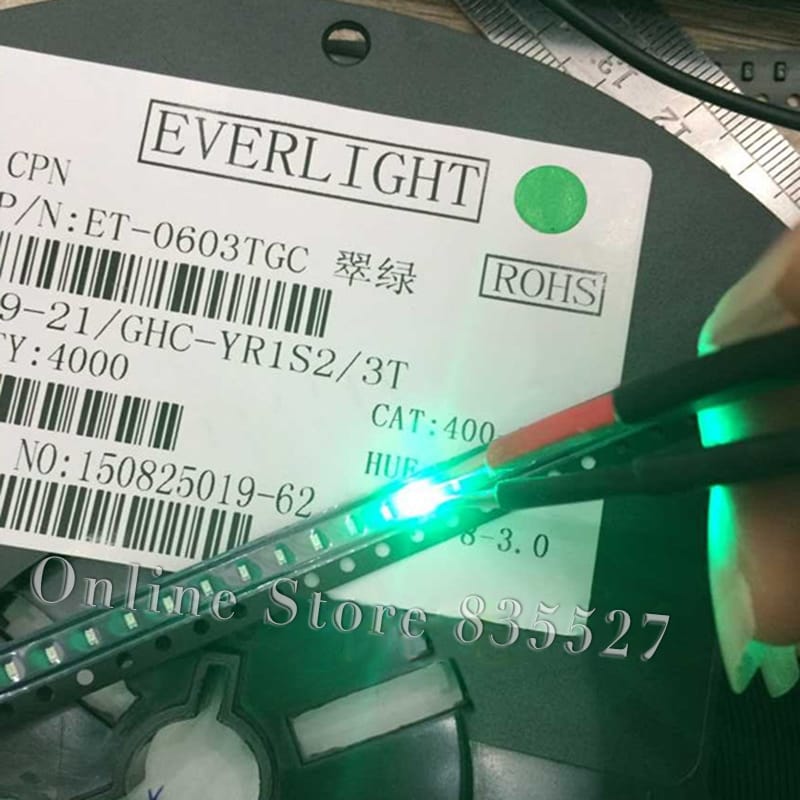

4000pcs/lot LED 0603 1608 SMD light beads bright emerald green LED light emitting diode
This shop franchise IC LED diode / transistor / capacitor / resistance and other electronic components, a wide range of products, can not be recorded, please consult the owner!! You only need give list for the parts, then I will offer the best price to you.
L. core material: InGaN/GaN greenL. colorless transparent packageL.1.6mm x 0.8 mm * 0.4 mm LEDL. has high light intensity, low power consumption, high reliability and long service lifeL. complies with EU Directive on RoHS One, uses:Mobile phones, LCD backlight, automotive instrument lighting, and surface mount electronic products.Two, limit parameter (TA=25 DEG C):
| 参数 | 最小值 | 最大值 | 单位 |
| 正向电流 IF |
| 25 | mA |
| 正向脉冲电流 IFP* |
| 100 | mA |
| 反向电压 VR |
| 5 | V |
| 工作温度 TOPR | -30 | +85 | ℃ |
| 贮存温度 TSTG | -40 | +85 | ℃ |
| 功 耗 PD |
| 120 | mW |
*Note: pulse width 0.1ms, duty cycle 1/10
三、 Photoelectric parameters（TA=25℃）：
| 参数名称 | 条件 | 单位 | 最小值 | 典型值 | 最大值 |
| 正向电压VF | IF=20mA | V |
| 3 |
|
| 反向电流IR | VR=5V | μA |
|
| 50 |
| 主波长λD | IF=20mA | nm |
| 520 |
|
| 半波宽度△λ | IF=20mA | nm |
| 30 |
|
| 光 强IV | IF=20mA | mcd |
| 400 |
|
,
