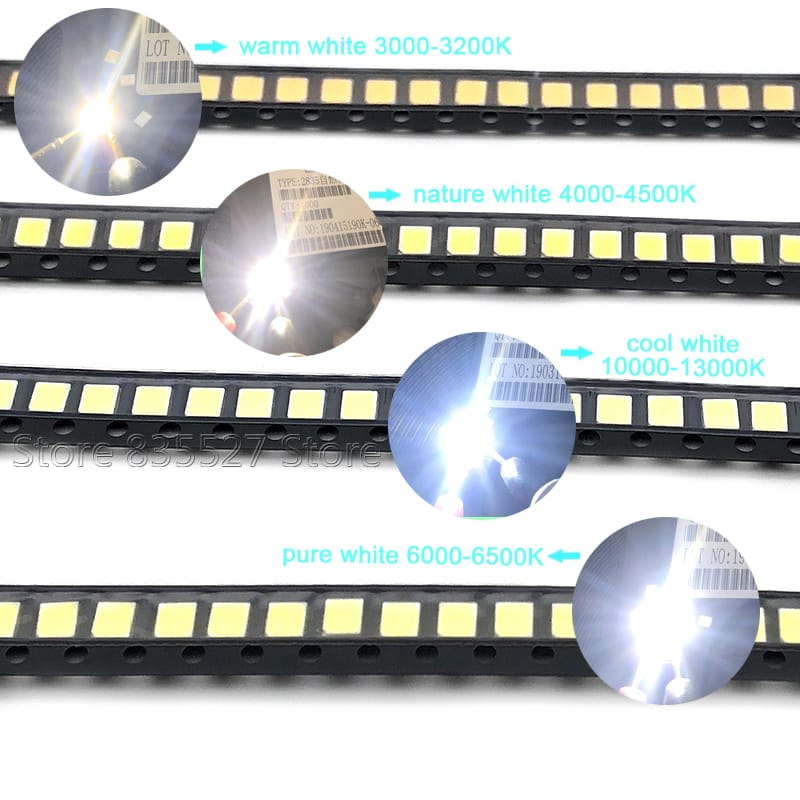

4 colors* 50pcs=200pcs 2835 SMD LED pure/natural/warm/cool white LED 23-25LM bright lamp beads Light emitting diode
Features:
◆Super high flux output and high luminance
◆Extremely wide viewing angle
◆Suitable for all SMT assembly and solder process
◆Available on tape and reel
◆Package:15000pcs/reel
◆ROHS compliant
◆ABSOLUTE MAXIMUM RATING (Ta=25°)
Item | Symbol | Value | Unit |
Peak Forward Current | IFp | 150 | mA |
Reverse Voltage | VR | 5.0 | V |
Continuous Forward Current | IF | 60 | mA |
Recommend Operating Current | IF | 55 | mA |
Operating Temperature | Topr | -40 to 85 | ° |
Storage Temperature | Tstg | -40 to 100 | ° |
Lead Soldering Temperature | Tsol | 260° For 3 Seconds | |
◆CHARACTERISTICS (Ta=25°)
Parameter | Condition | Symbol | Min | Typ | Max | Units |
Power Dissipation | IF=60mA | Pd | - | 200 | - | mw |
Correlated Color Temperature | IF=60mA | CCT | 2750 | / | 12000 | K |
Forward Voltage | IF=60mA | VF | 2.8 | 3.1 | 3.8 | v |
Reverse Current | VR=5V | IR | / | / | 10 | μA |
Chromaticity Coordinates | IF=60mA | X | / | 0.31 | / |
|
IF=60mA | Y | / | 0.327 | / |
| |
Luminous Flux | IF=60mA | φv | 21 | 23 | 26 | LM |
Luminous Intensity | IF=60mA | IV | 5000 | / | 8000 | mcd |
Color Rending Index | IF =60mA | CRI | / | 70 | / | Ra |
Full Viewing Angle | IF=60mA | 2θ1/2 | / | 120 | / | deg |
REMARK:1:1
Date | 2012-10-15 | Page | 1/1 | Model No. | SD2835WN | CHECKED | 汪友刚 |
REV No. | A0 | Document No. | 190283500 | CUSTOMER |
| APPROVED | 袁玉成 |
NOTE: Testing tolerance: VF±0.1V, IV(Φv) ±10%, 2θ1/2 ±10% ,CCT(λD)±15%;
- Specifications: 2835 0.2W SMD LED light
- Color: cool white
- Color temperature: 10000-13000K
- Brightness: 22-24LM (lumens)
- Voltage: 3.2V - 3.4V
- Power: 0.2W
- Electric current: 60ma
- Specifications: 2835 0.2W SMD LED light
- Color: pure white
- Color temperature: 6000-6500K
- Brightness: 22-24LM (lumens)
- Voltage: 3.0V - 3.2V
- Power: 0.2W
- Electric current: 60ma
- Specifications: 2835 0.2W SMD LED light
- Color: nature white
- Color temperature: 4000-4300K
- Brightness: 23-25LM (lumens)
- Voltage: 3.2V - 3.4V
- Power: 0.2W
- Electric current: 60ma
- Specifications: 2835 0.2W SMD LED light
- Color: warm white
- Color temperature: 2800-2900K
- Brightness: 23-25LM (lumens)
- Voltage: 3.0V - 3.2V
- Power: 0.2W
- Electric current: 60ma
Filming in kind, what you see is what you get
