3W Light High Power Chip LED Lamp Beads Scann Print Banknote Detection Anti counterfeit Detection Purple Cured 395-400nm UV LED

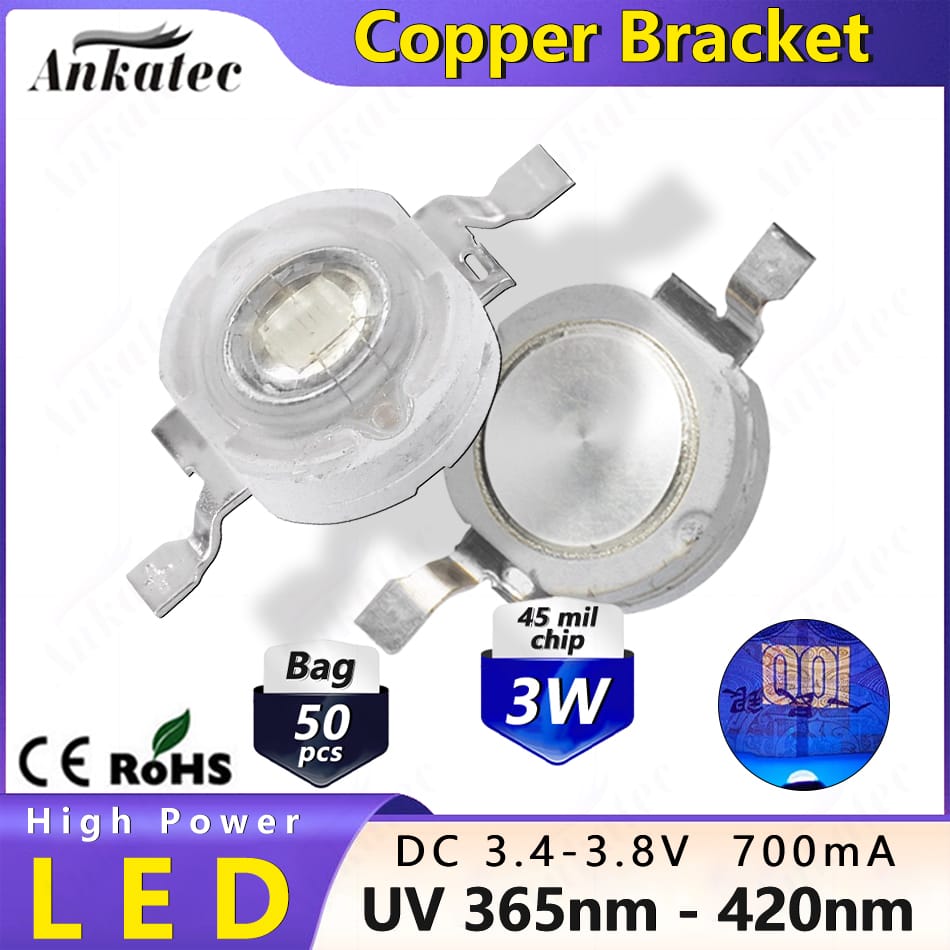

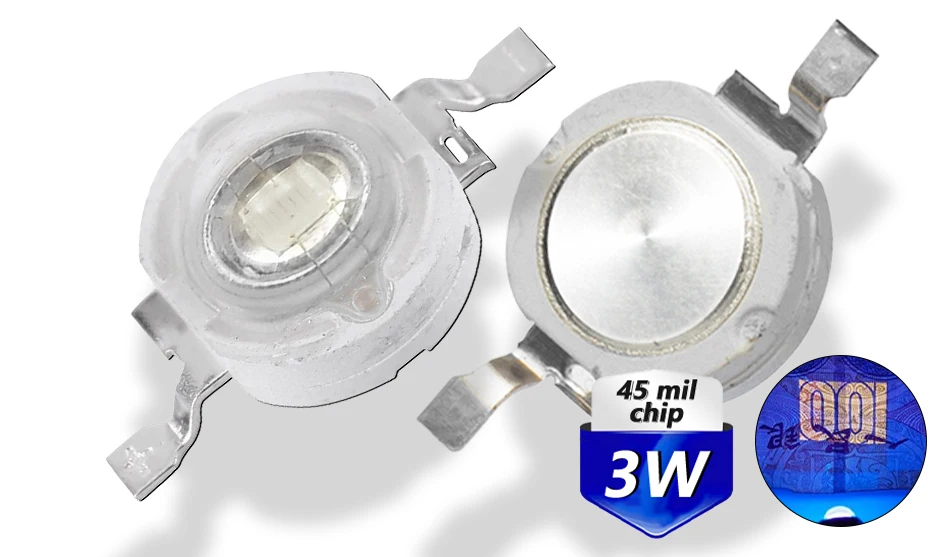

50 of High Power LED Chip 3W Purple Ultraviolet Lamp Beads (UV 365~420nm / 700mA / DC 3.4V - 3.8V / 3 Watt) SMD COB Light Emitter Components Diode For Medical / Printing / Curing DIY UV Lighting
Product features:

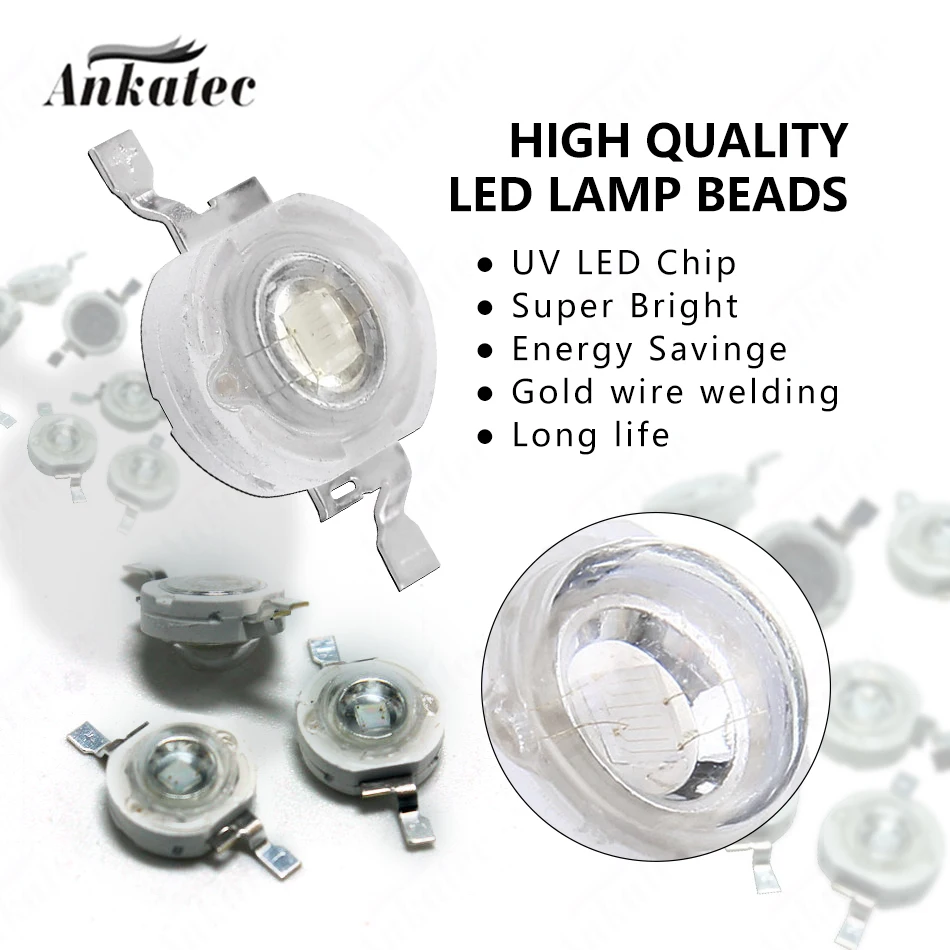

●. High quality LED high-power Chip lamp beads,small light decay,high brightness and long service life.
●. Used for DIY UV lighting fixtures, widely used

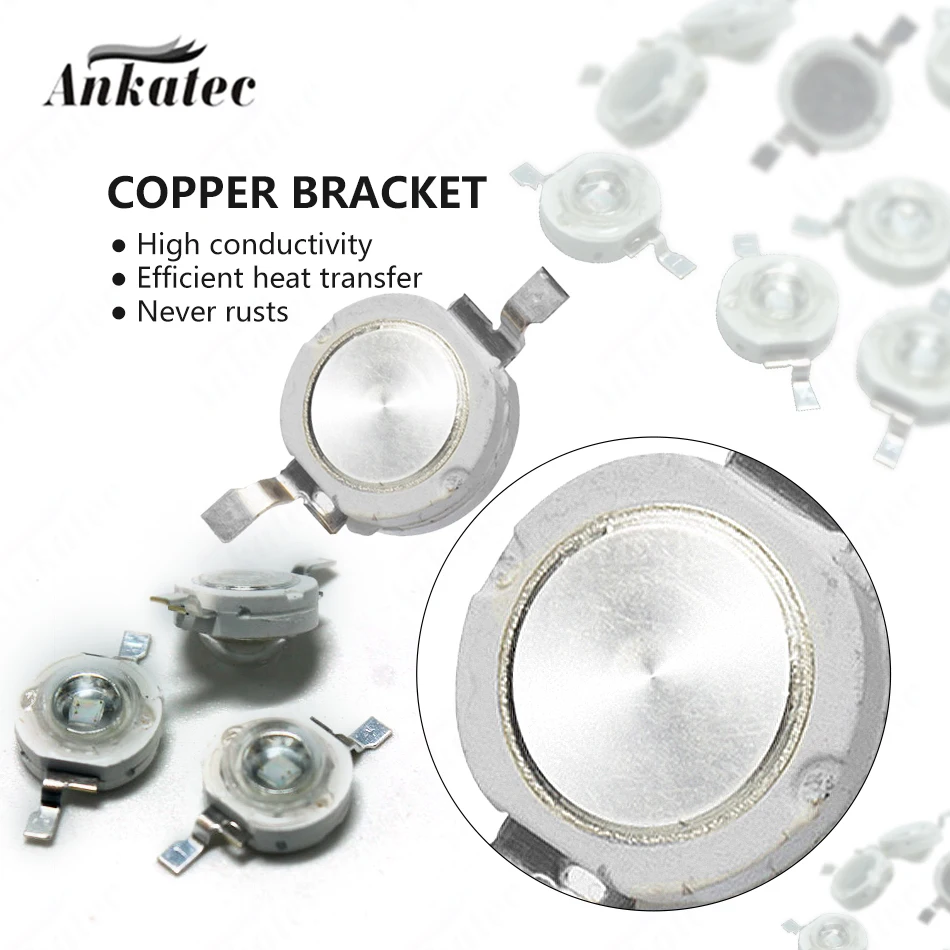

●. The lamp bead chip adopts 99.99% gold wire welding and copper bracket, making them easy to dissipate heat. Strong light transmittance
●. With high brightness,low power consumption and long life. Instant start,no strobe,sturdy and shockproof.
●. Allows you to solder it into any configuration you want.
●. Light weight,small size,easy to store and use.
Product specifications:
●.Name：LED high-power lamp beads
●.Features：UV Fluorescent Linght
●.Application：Medical / Printing / Curing
●.Power：3W
●.Current：700mA
●.Voltage：3.4-3.8V
●.Wavelength：365~420nm
●.Beam angle：120 degrees
●.LED chip：45*45 mil

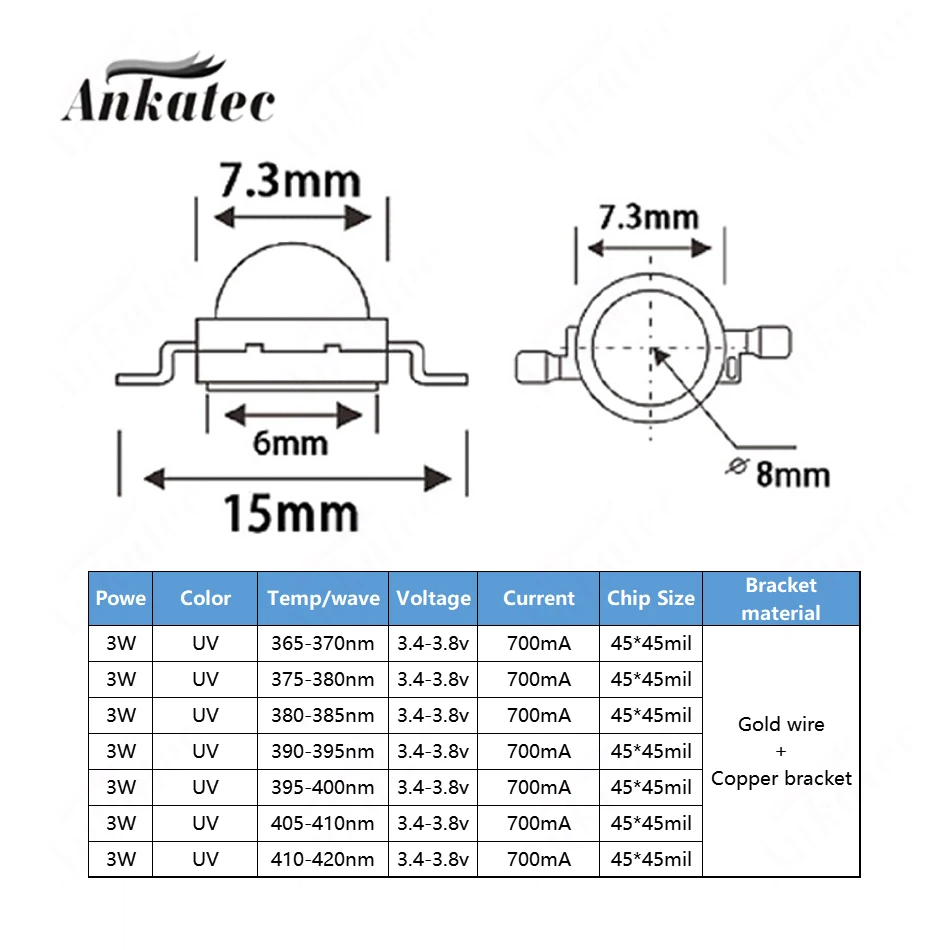

●.Dimension：As shown in the figure
●.Bracket material：With Double Golden Wire (99.99%) and Copper Frame
Kindly Reminder:
●.Light and different monitors may cause the color of the item to be somewhat different from the real thing. The allowable error of measurement is +/-1 mm.
●.Constant current LED drivers are recommended for high power LEDs.
Working temperature should be less than 60 Degrees Celsius / (140 Fahrenheit) with a Heat Sink System.
Please refer to the positive (anode +) and negative (cathode -) sign on Leds.

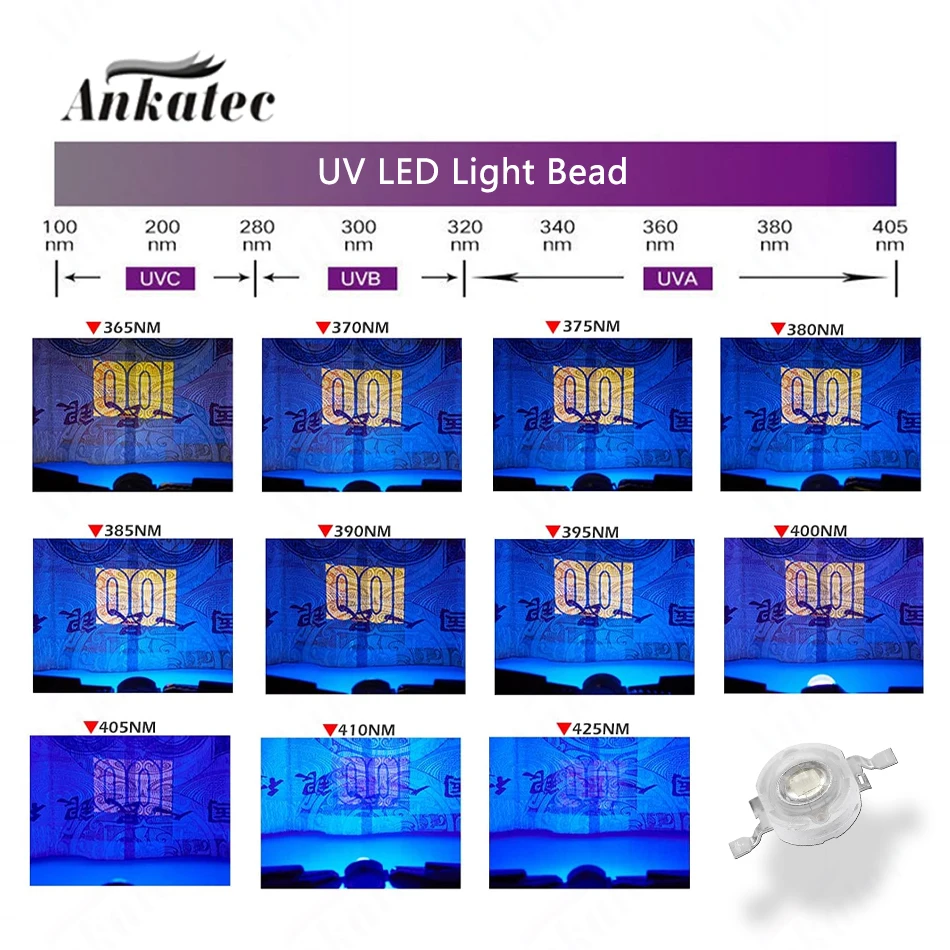

UV LED applications include:
230-400nm: optical sensors and instrumentation
230-280nm: UV ID verification, barcodes
240-280nm: sterilization of surface areas and water
250-405nm: forensic and bodily fluid detection and analysis
270-300nm: protein analysis, drug discovery
300-320nm: medical light therapy
300-365nm: polymer and ink printing
375-395nm: counterfeit detection
390-410nm: superficial/cosmetic sterilization
,
