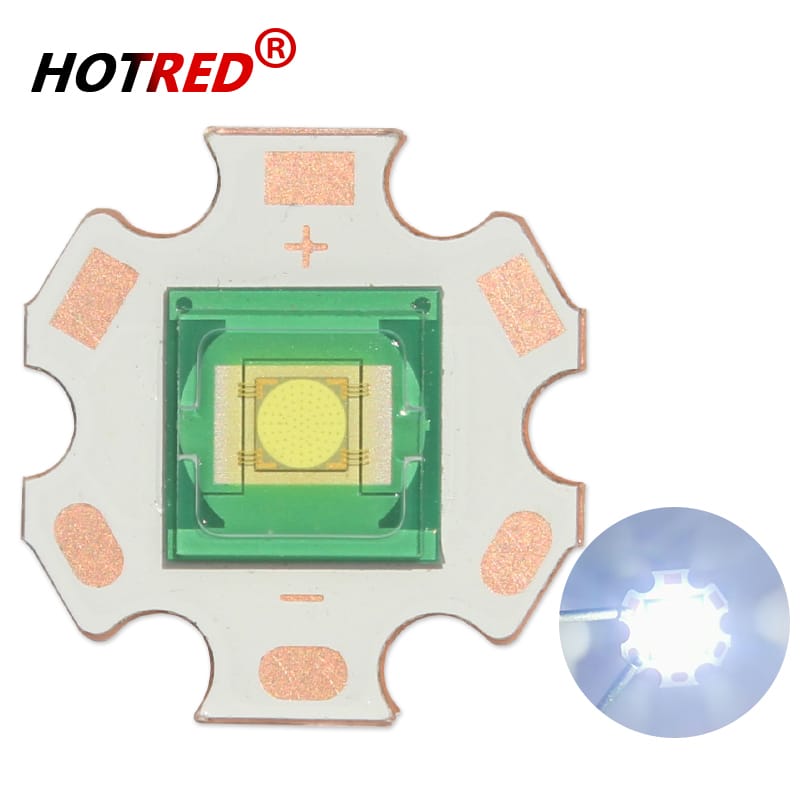

30W LED Diode Laser Light SBT-90 Lamp DC3V 9A 2200lm Cold White XHP9090 Flat Glass Top Chip Beads 3.7V 12V Driver For Flashlight

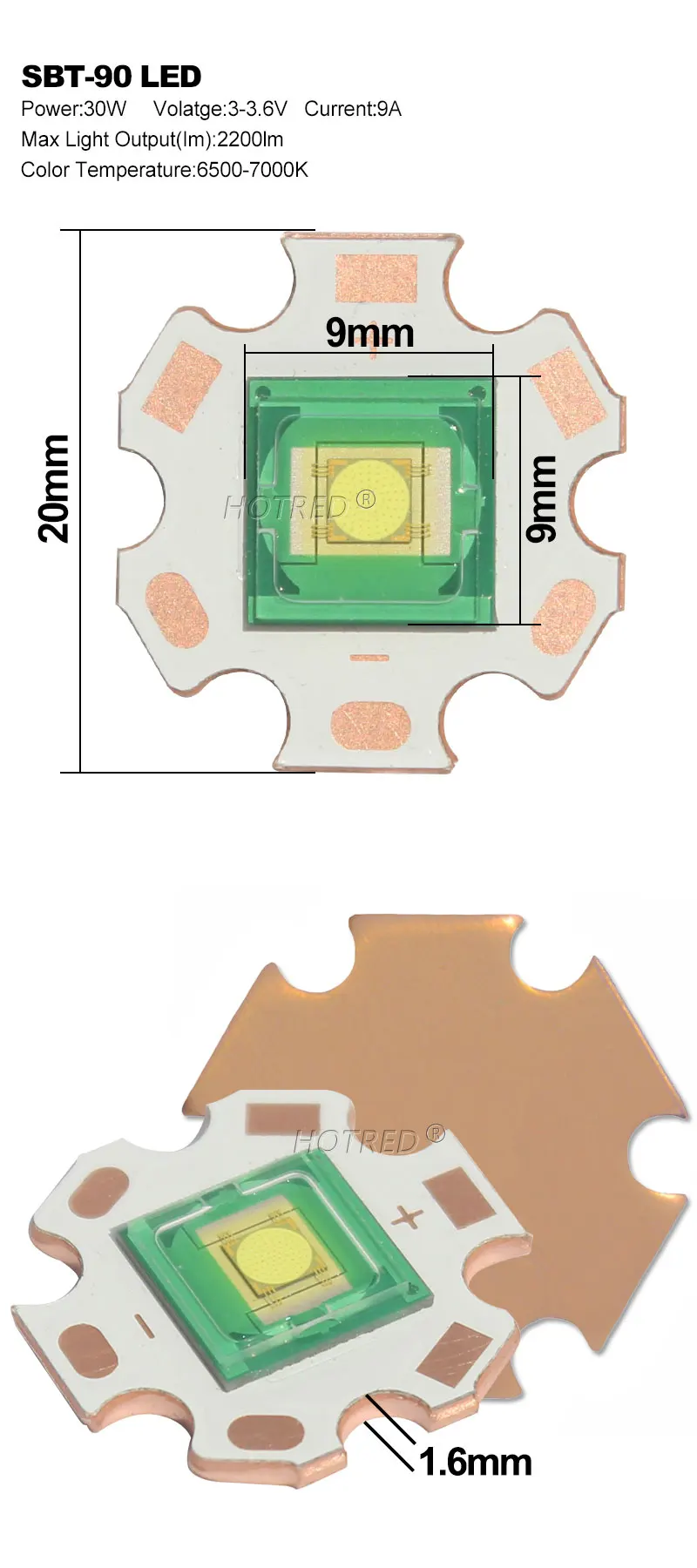

Parameters for SBT-90 LED:
Item No.:OT-SBT-90 LED
Power: 30W
Volatge:3-3.6V
Current: 9A
Max Light Output(Im):2200Im

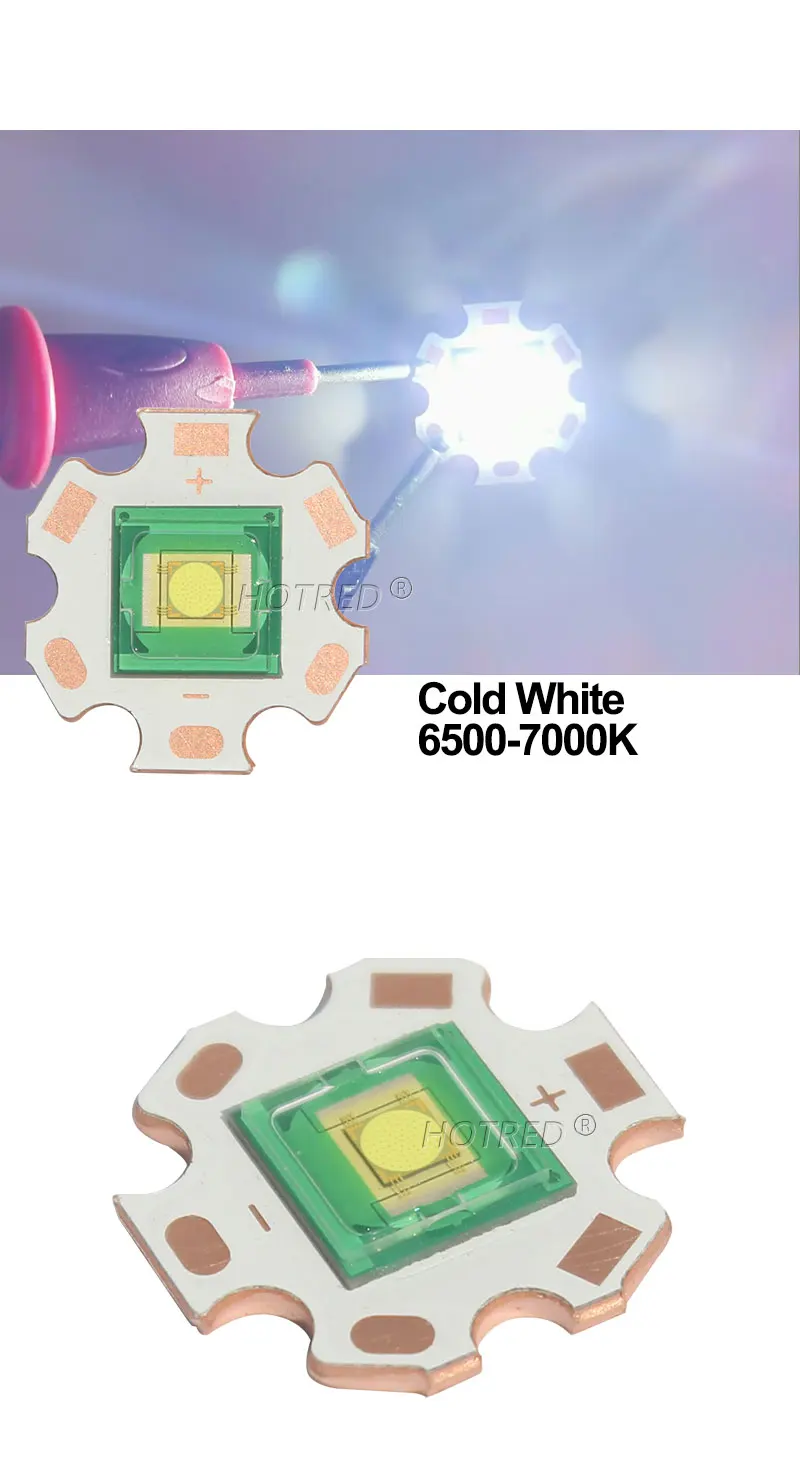

Color Temperature:6500-7000K
View Angle:Flat 120°
PCB Board:Soldered on 20mm Copper PCB Board.
Note:The led needs to work proper driver and heatsink.

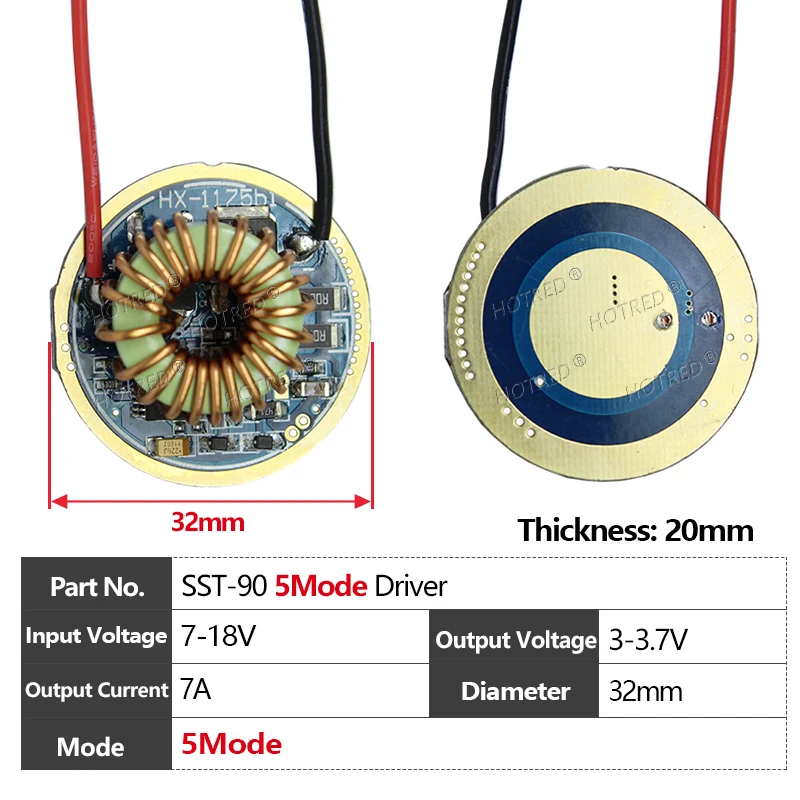

Parameters for SBT-90 LED Driver:
Luminus SBT-90 LED Driver: 1pcs

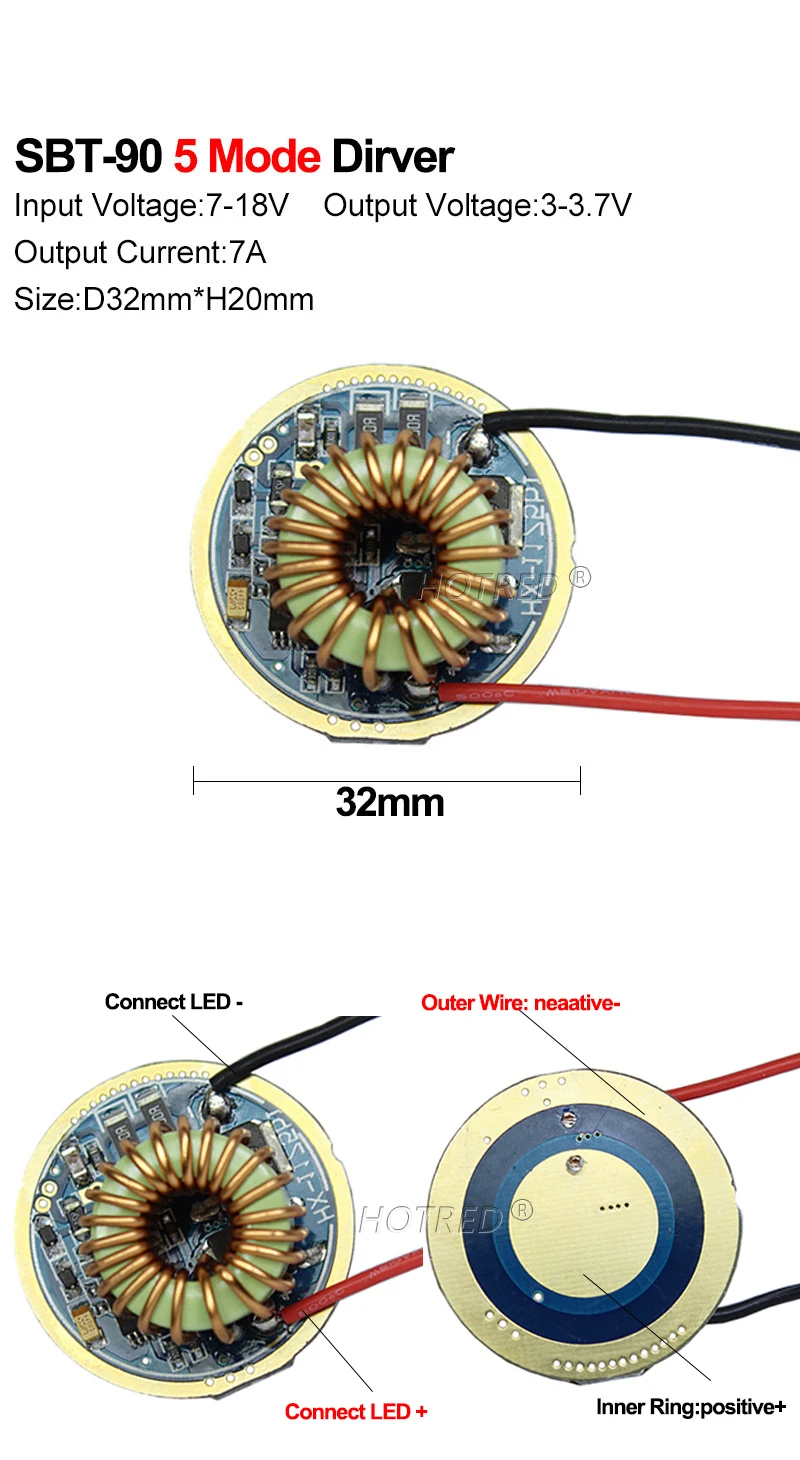

Input Voltage:DC7V-18VCurrent: 7ADimmable function: Yes5 Modes: Low (10%), mid (50%), high (100%), strobe (100%), SOS (100%)TC: 75 degree (MAX)TA: 50 degree (MAX)Size:(D)32*(H)20MMConnection:RED/Led+:LED Output PositiveWhite/Led-:LED Output NegativeDimmable in 5 Modes: Low (10%), mid (50%), high (100%), strobe (100%), SOS (100%)Operating Temperature: -20~80 degreeStorage Temperature: -20~80 degreeFunction: Open circuit, Short circuit and Over loadingApplication: Fit for SBT-90 High Power LED light.Remark:(Note: the red wire is positive and the blue wire is negative, both can attach to the led. On the backside,inside of the circle,it is positive for power supply;outside of the circel,it is negtive for power supply.)Safety information:Supply Voltage of this product is DC3-3.6VNever connect two wires directly in case of short circuitLead wire should be connected correctly according to colors that connecting diagramWarranty of this product is one year, in this period we guarantee replacement or repairing with no charge, but exclude the artificial situation of damage.
,
