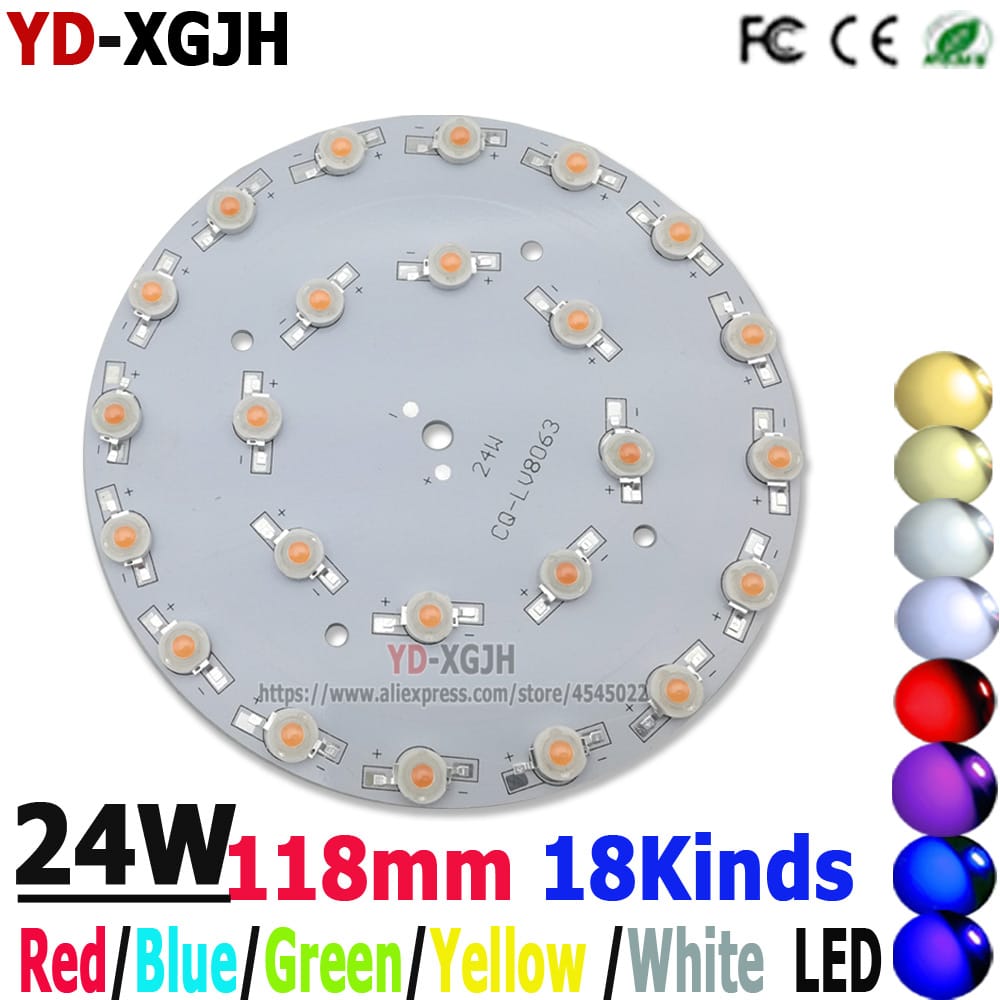

2p High power LED 24W PCB LED lamp beads aluminum plate 1W high power chip light plate with welding finished LED DIY accessories

Production details:

• Portable flashlights and bicycle lights• Stage lighting for entertainment decoration• Guardrail lights, safety warning lights, garden lights• Indoor and outdoor commercial and architectural lighting• Car lights: headlights, angel eye lights, width lights, etc.• No UV radiation Operating voltage: each lamp beads about 3.0-3.5V (Please calculate the total number of beads according to the total voltage)

Lamp beads chip:  Epistar 30mil 1w lamp beads

Light board circuit mode: both single and in series

board width:   Annular 24W 118MM

[Lighting angle] 120degrees

[Working temperature] -20-60 degrees

[Storage temperature] 20-60 degrees

[Brightness attenuation] 3% after 5,000 hours of operation

[Life] 50,000 hours

anti-static  • Static electricity or high voltage can damage the lamp bead. When using the lamp bead, it is recommended to wear anti-static ring or anti-static gloves.  • When soldering iron, the machine is grounded; all drive equipment should be grounded to ensure that the lamp voltage is within the normal range. Heat dissipation  • When the lamp is energized, the higher the current, the greater the heat generated by the lamp bead; the excessively high temperature will damage the lamp bead and the current needs to be controlled properly.  • Need to add heat sink and heat sink, the ambient temperature is controlled at 40~60°C Take the lamp beads  • When taking the lamp beads, it is recommended to use tools such as tweezers.  • Try to avoid touching the surface of the lamp with your hands to prevent contamination of the lamp beads and affect the optical effect.

  • Please take the lamp beads on the side
