20pcs/lot 3W RGB Color High Power LED Bead Light 4pin With 20mm Star Heatsink For DIY

20pcs/lot 3W RGB Color  High Power LED Bead Light 4pin With 20mm Star Heatsink For DIY

20pcs/lot 3W RGB Color  High Power LED Bead Light 4pin With 20mm Star Heatsink For DIY

item picture

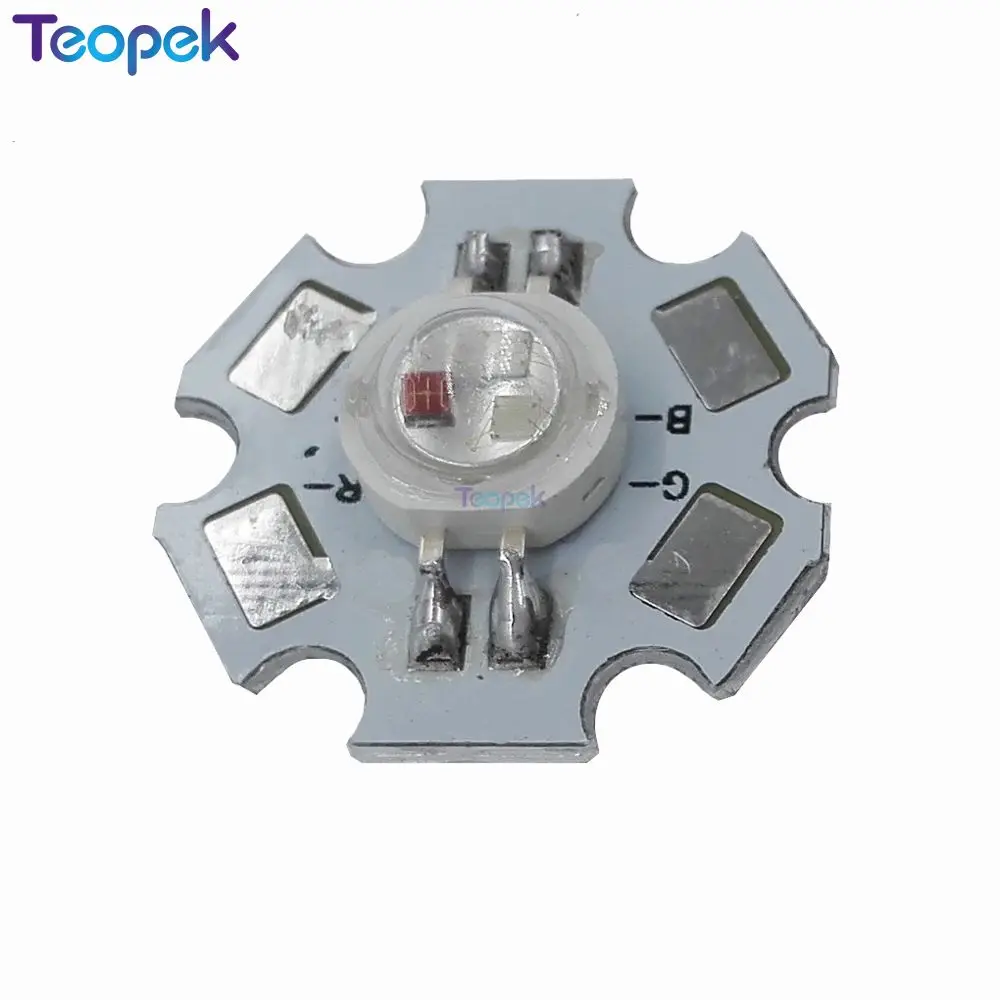

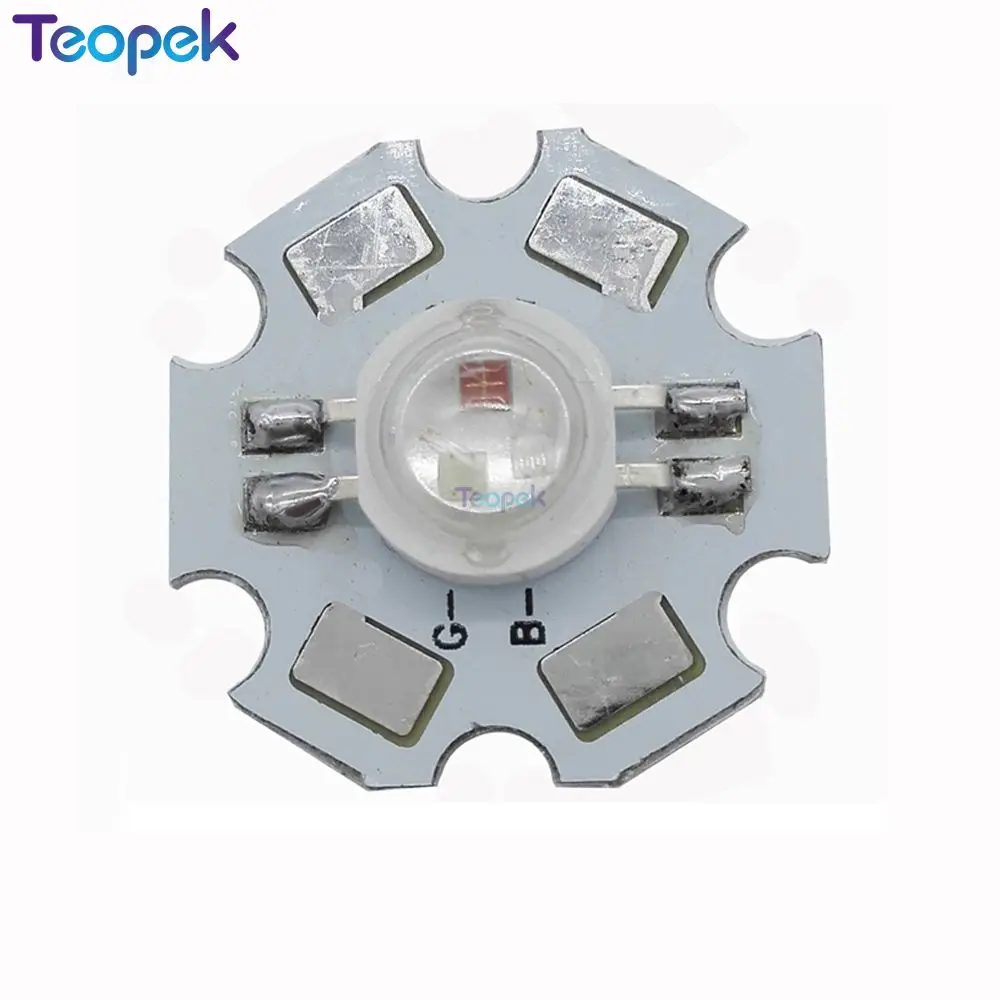

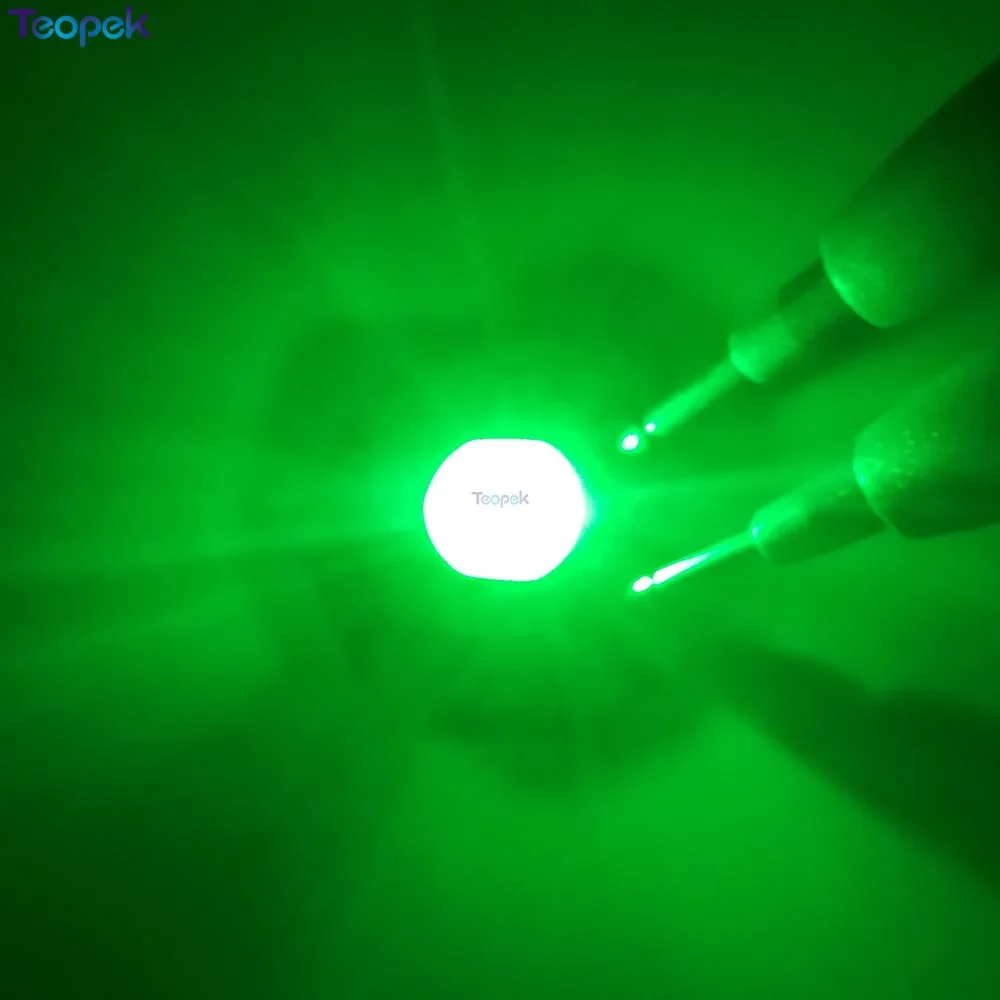

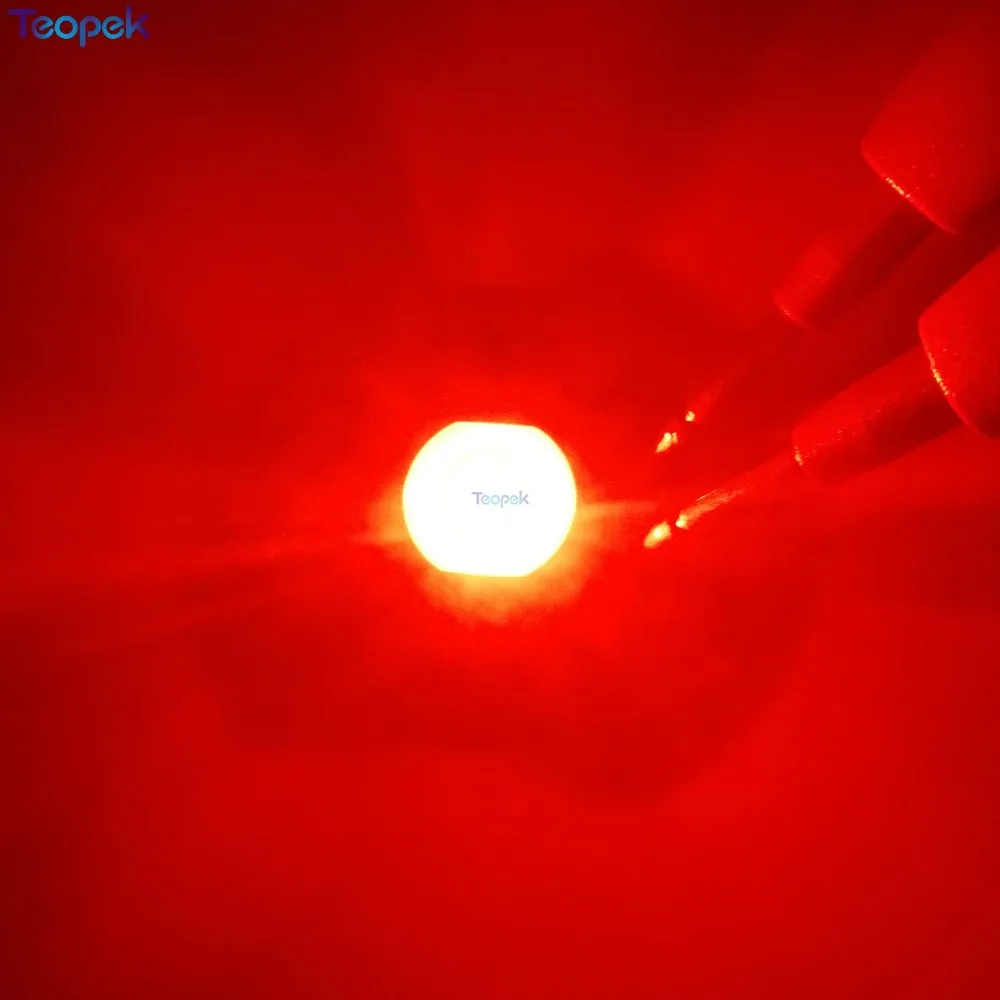

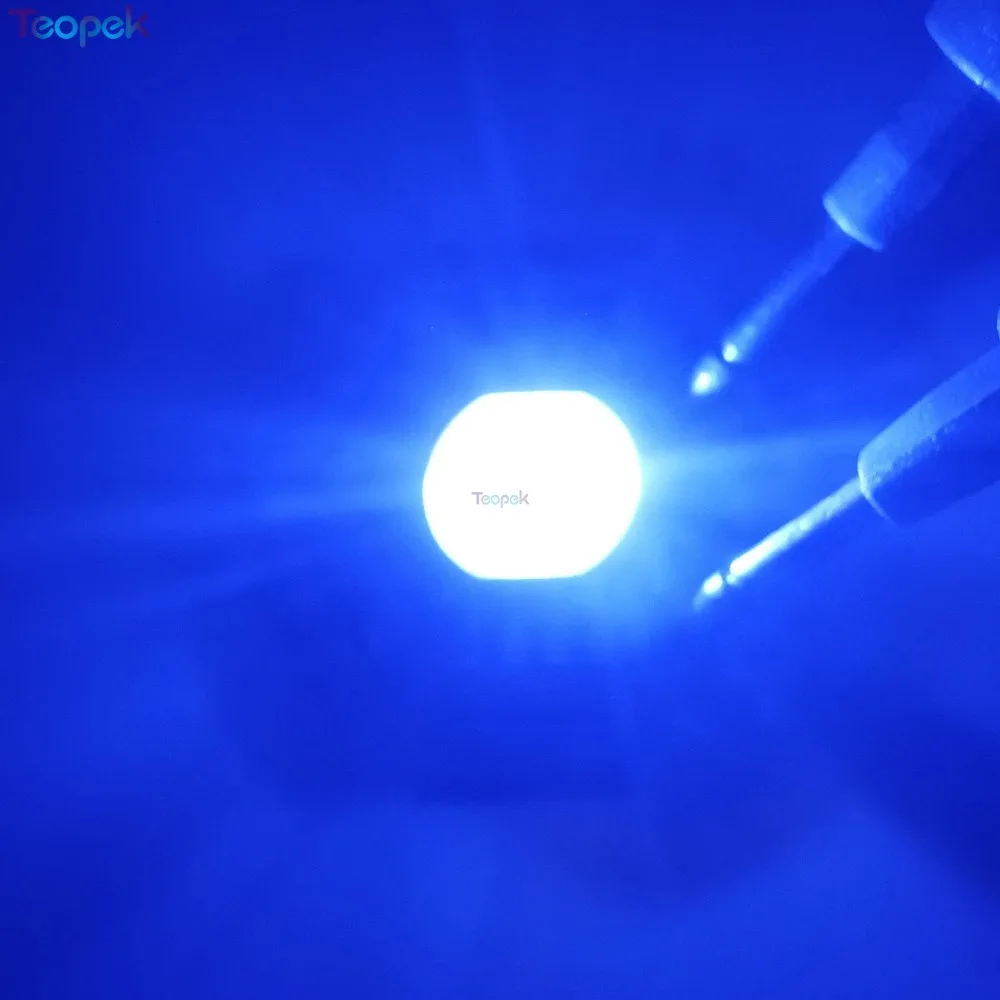

IMG_20160311_155842IMG_20160311_155902IMG_20180613_165601IMG_20180613_165618IMG_20180613_165647





Technical Parameters For Royal Blue :

- Emitted Color : Red , Green , Blue
- DC Forward Voltage (VF):
       Red: 2.2~2.4Vdc
       Green: 3.2~3.4Vdc
       Blue: 3.2~3.4Vdc
- DC Forward Current (IF): 350mA
-Wave Lenght: RED 620~630nm  GREEN 520~530nm  BLUE 460~465nm
- Intensity Luminous (Iv):
      Red 25-35LM
      Green 40-50LM
      Blue 25-35LM
- Beam Angle: 140 degrees
- LifeSpan Time: > 100,000 hours
