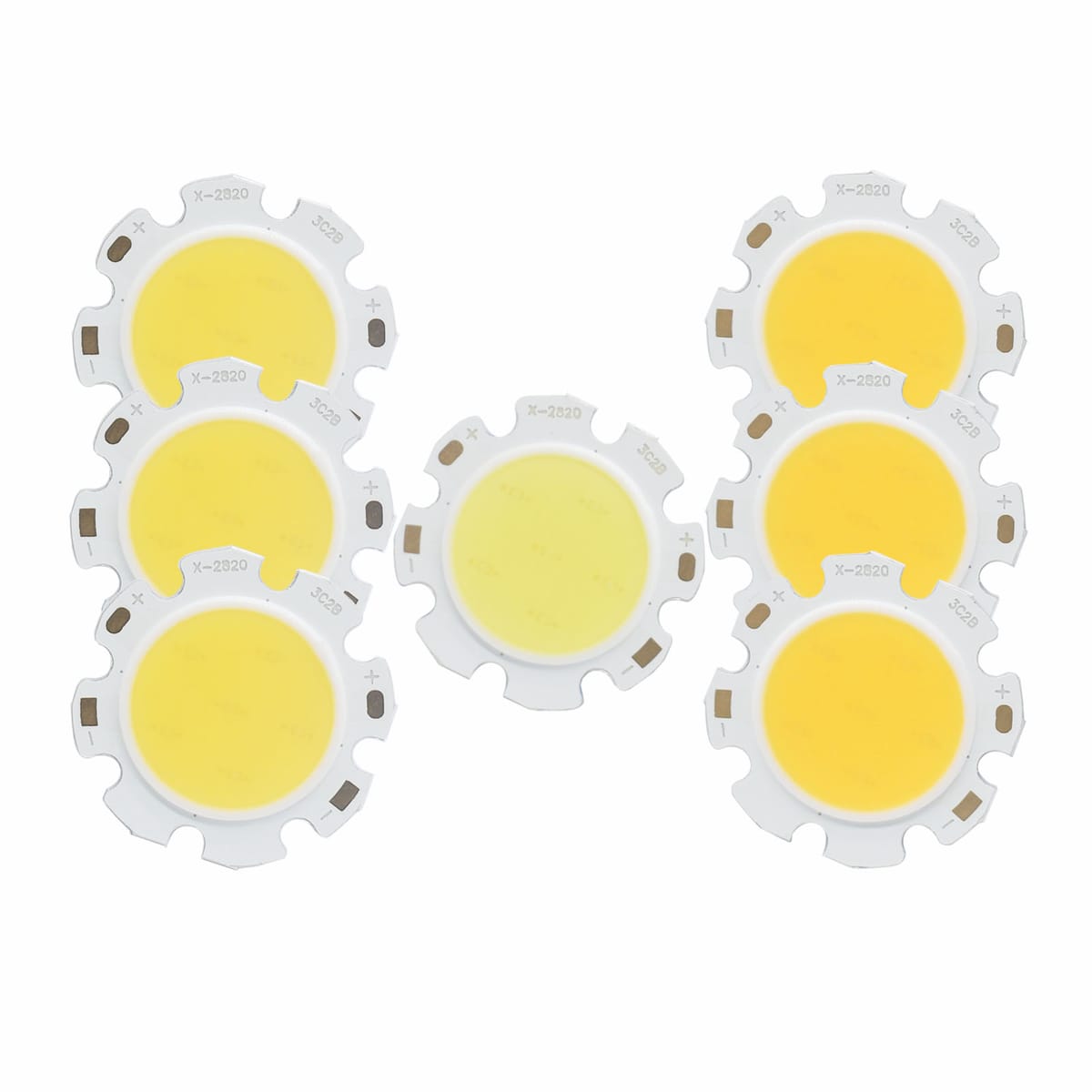

20pcs High Power 3W 5W 7W 10W Bridgelux LED COB Chip Ra80 28mm 300mA Lamp Beads Diode For Light Lamp Spotlight Down Light Lamps

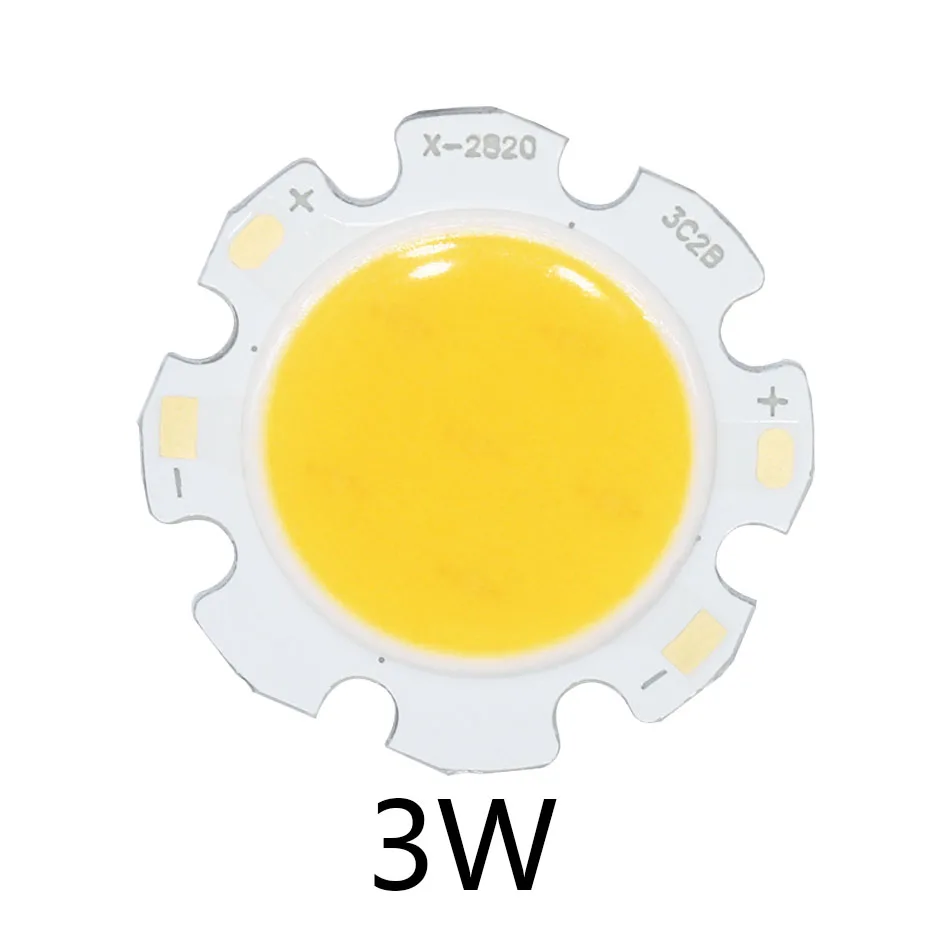

Power：3W
Current : 300mA(max)
CRI: Ra≥80
Crystal Size : 18*35mil
Serial/Parallel: 3C/2B
LED Number=6pcs Bridgelux Crystals
Voltage ：DC9-12V
Lumen=360-390LM
Chip thickness=1mm=0.04inch

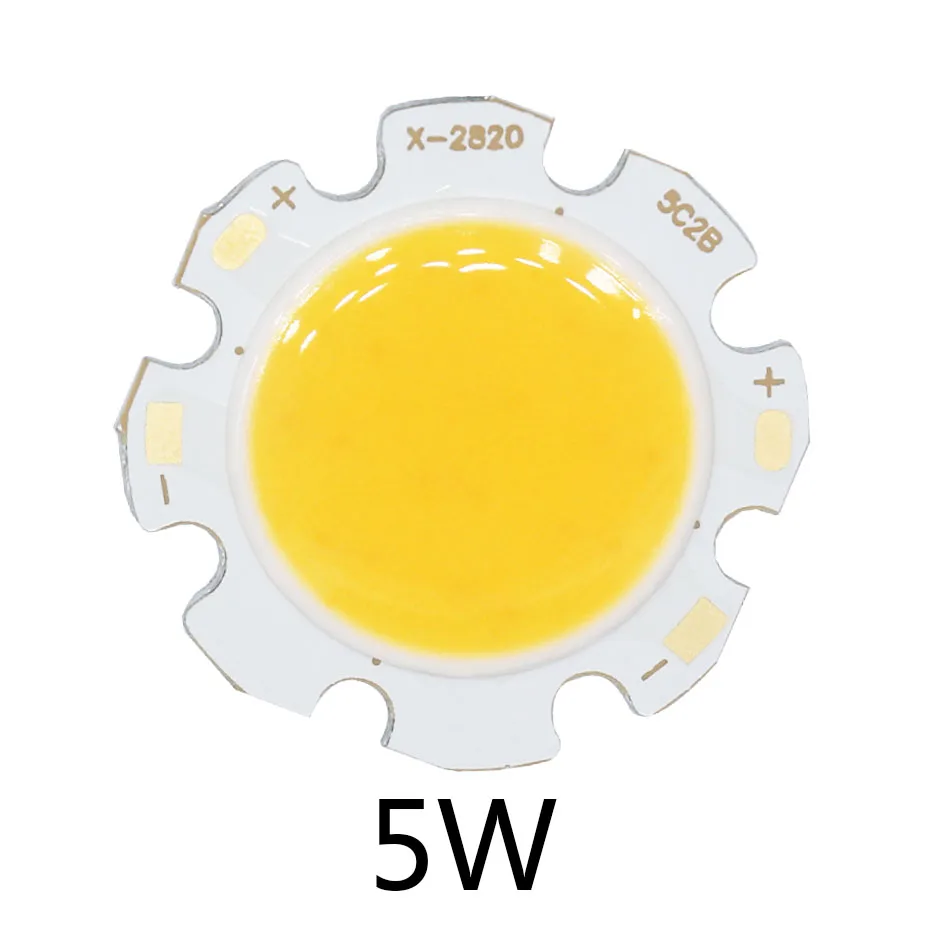

Power：5W
Current : 300mA(max)
CRI: Ra≥80
Crystal Size : 18*35mil
Serial/Parallel: 5C/2B
LED Number=10pcs Bridgelux Crystals
Voltage ：DC15-18V
Lumen=600-650LM
Chip thickness=1mm=0.04inch

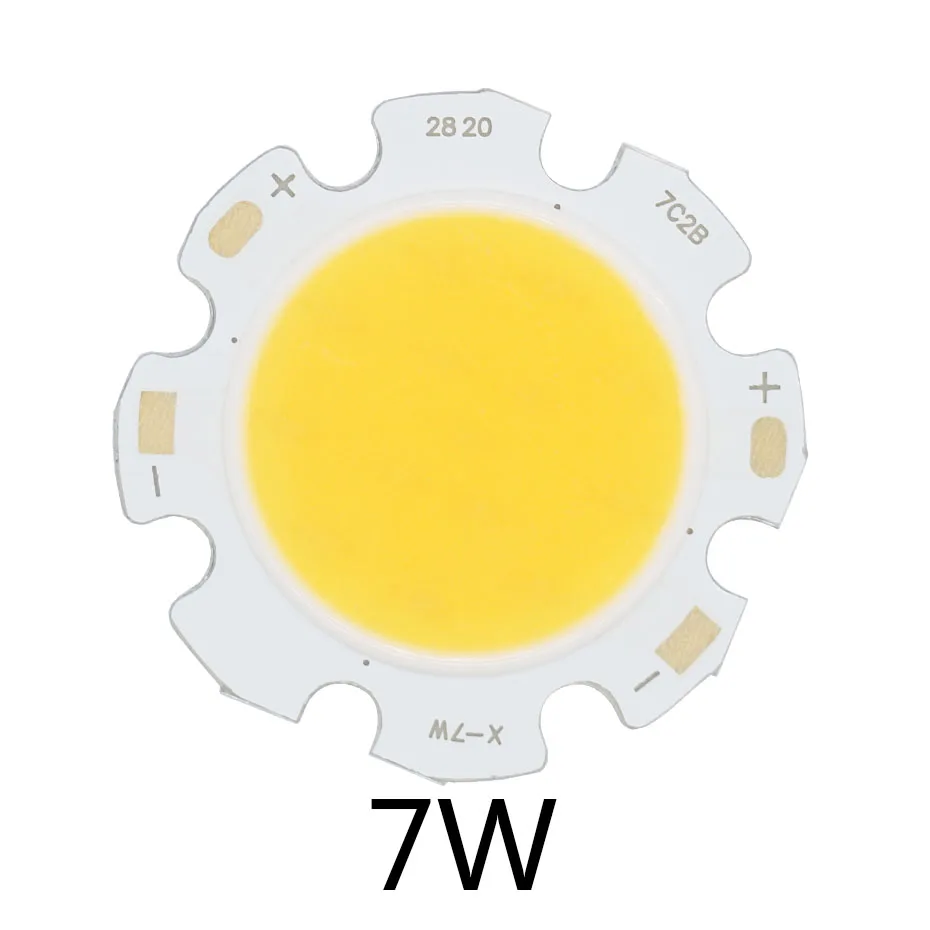

Power：7W
Current : 300mA(max)
CRI: Ra≥80
Crystal Size : 18*35mil
Serial/Parallel: 7C/2B
LED Number=14pcs
Bridgelux Crystals
Voltage ：DC21-24V
Lumen=840-910LM
Chip thickness=1mm=0.04inch

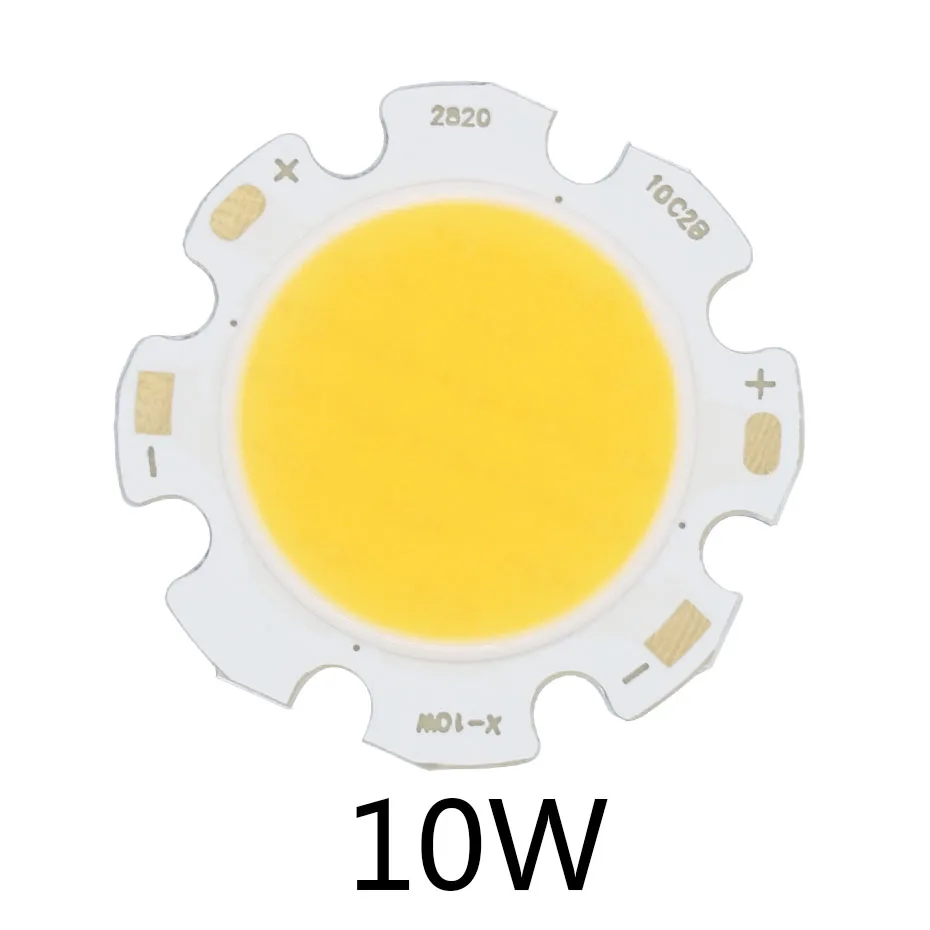

Power：10W
Current : 300mA(max)
CRI: Ra≥80
Crystal Size : 18*35mil
Serial/Parallel: 10C/2B
LED Number=20pcs Bridgelux Crystals
Voltage ：DC30-33V
Lumen=1200-1300LM
Chip thickness=1mm=0.04inch
Product advantages:
1. Imported chips Bridgelux
2. High brightness and Long-life
3. The superconducting aluminum substrate conducts heat well
,
