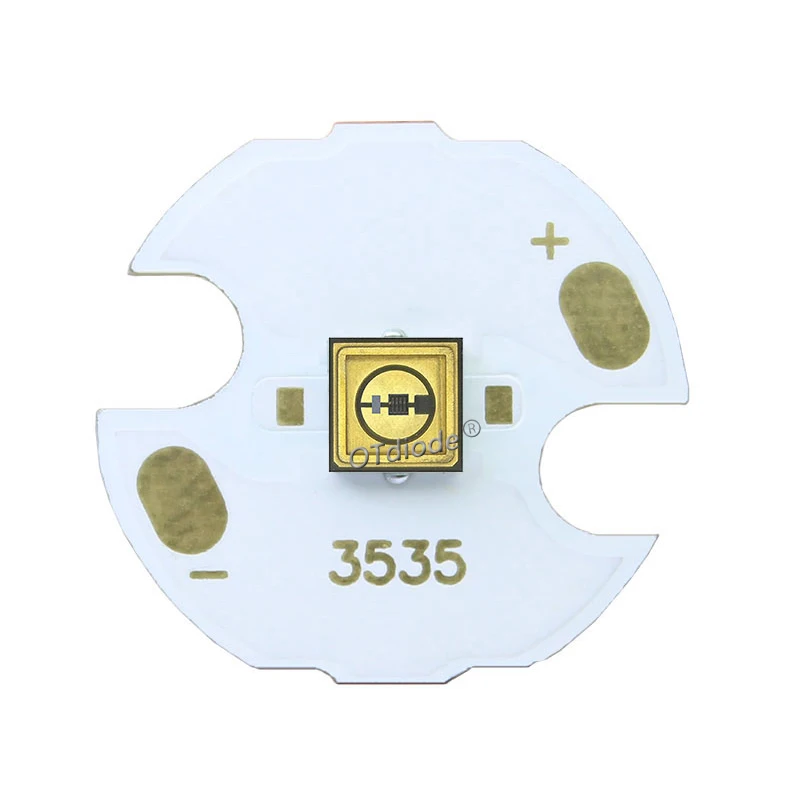

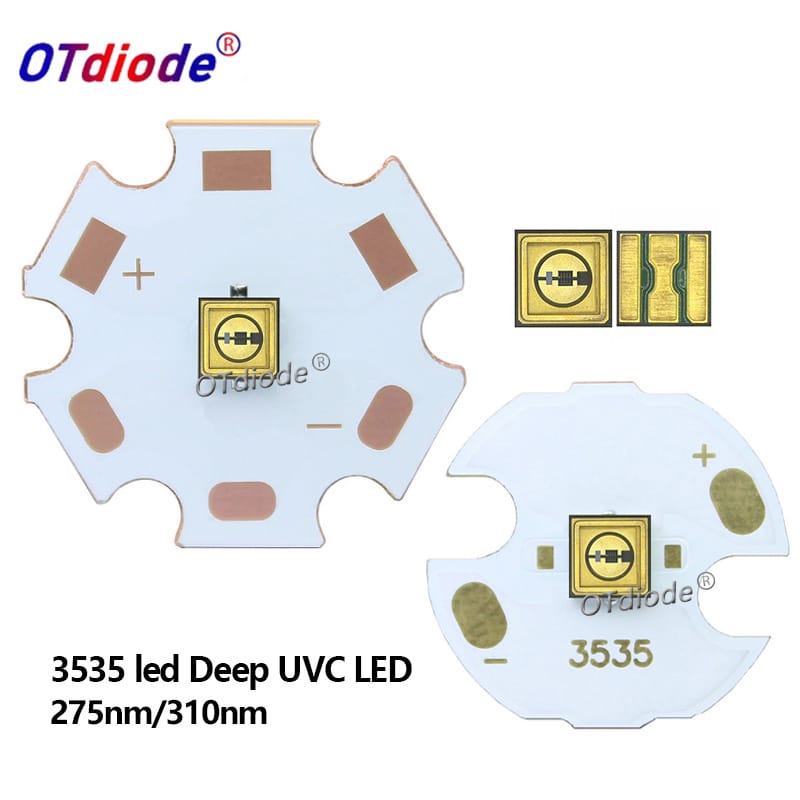

1PCS 265nm 275nm 310nm UVC LED Lamp beads 0.1W 5-7V SMD With 16/20mm Copper PCB Deep UV light Sterilization

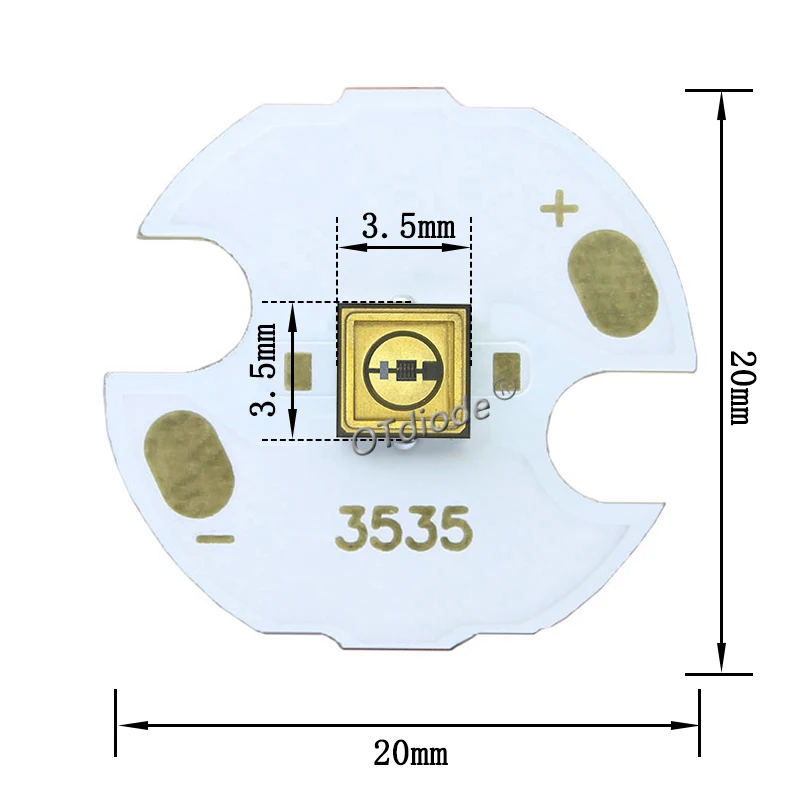

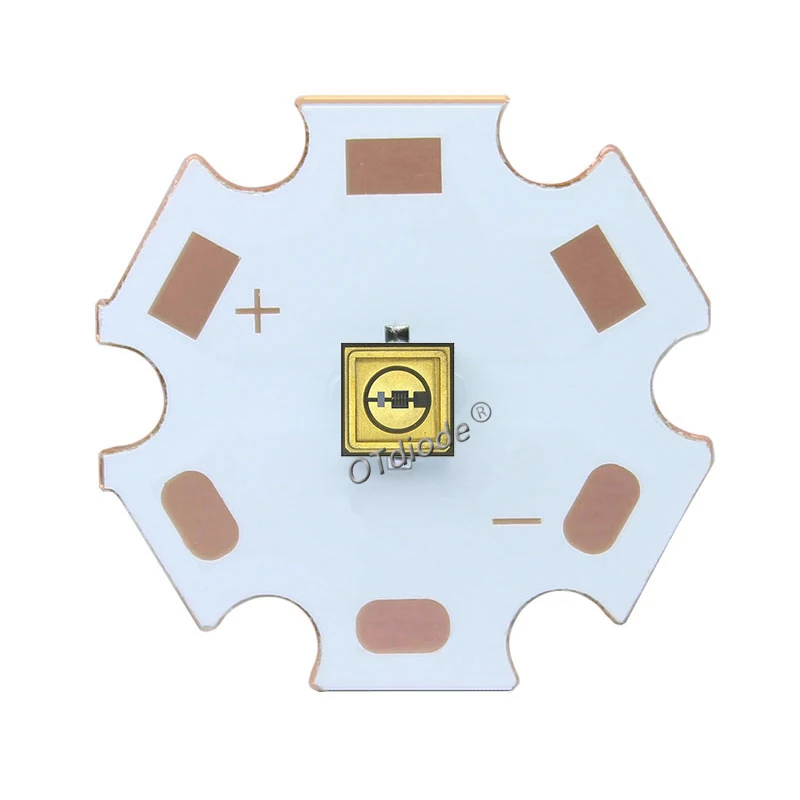

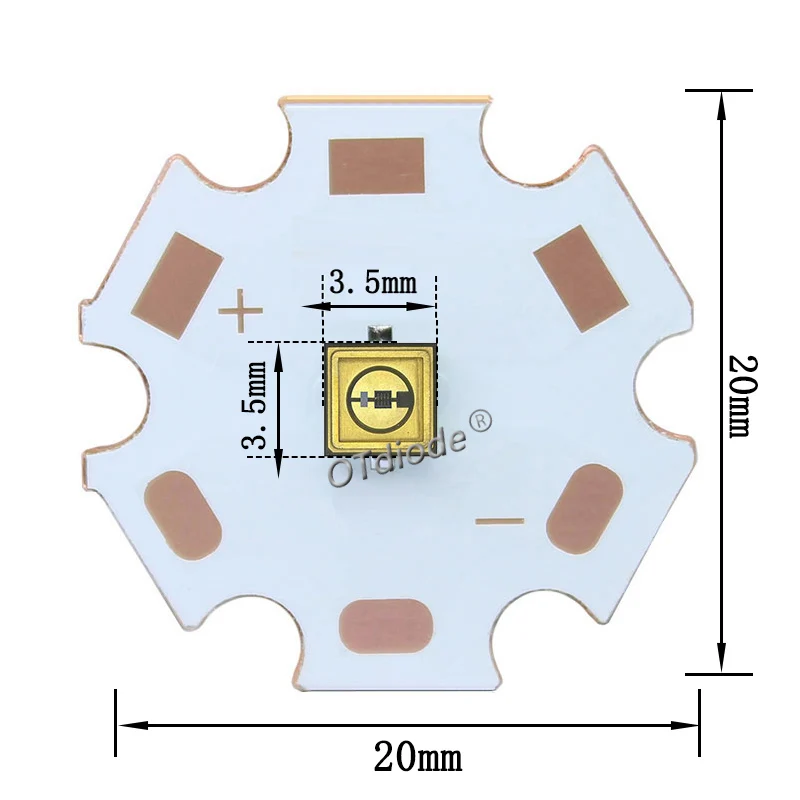

UVC Deep UV light Sterilization LED 3535 0.1W 275nm 310nm violet ultraviolet 5-7V with 20mm Copper PCB

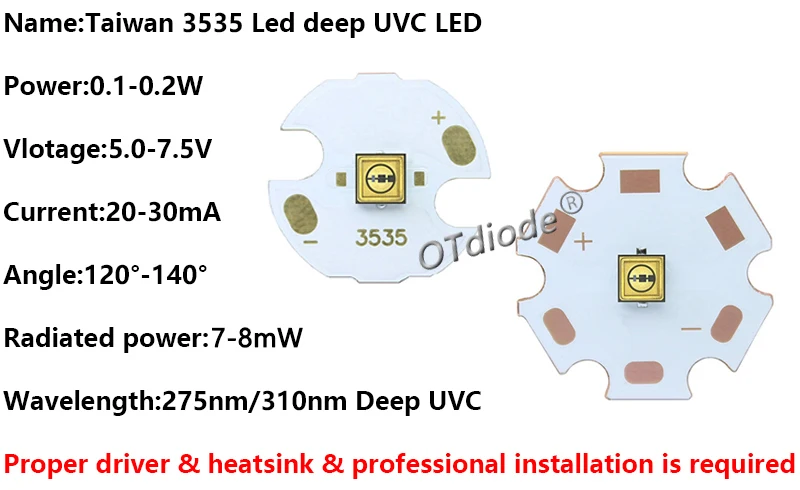

DESCRIPTION———————————————————————————————————————————————————Technical Parameters of Item

Power: 0.1-0.2W
Voltage: 5.0-7.5V
Current: 20-30mA
Radiant flux:7-8mW
View angle: 120-140degrees
Wavelength:275nm/310nm Deep UVC
Life Span: 50,000 Hours

Product Feature

a. Efficient: sterilization effect can be up to 99.9% in short time.
b. Energy saving: Compared with the traditional lamps, the energy-saving is up to 80%
c. Environmental protection: non-metal gas or harmful substances emitting technologies.
e. Instant start
f: Lifespan: > 10,000 hours

Notes for UVC-LED 275nm -310nm

a. Do not touch the LED, or will affect the normal light-emitting devices
b. Power devices must confirm the positive and negative, reversing polarity may damage the device
c. Strictly operate in accordance with electrical parameters, too high voltage may damage the device
d. UVC-LED status should be avoided close observation with the naked eye..

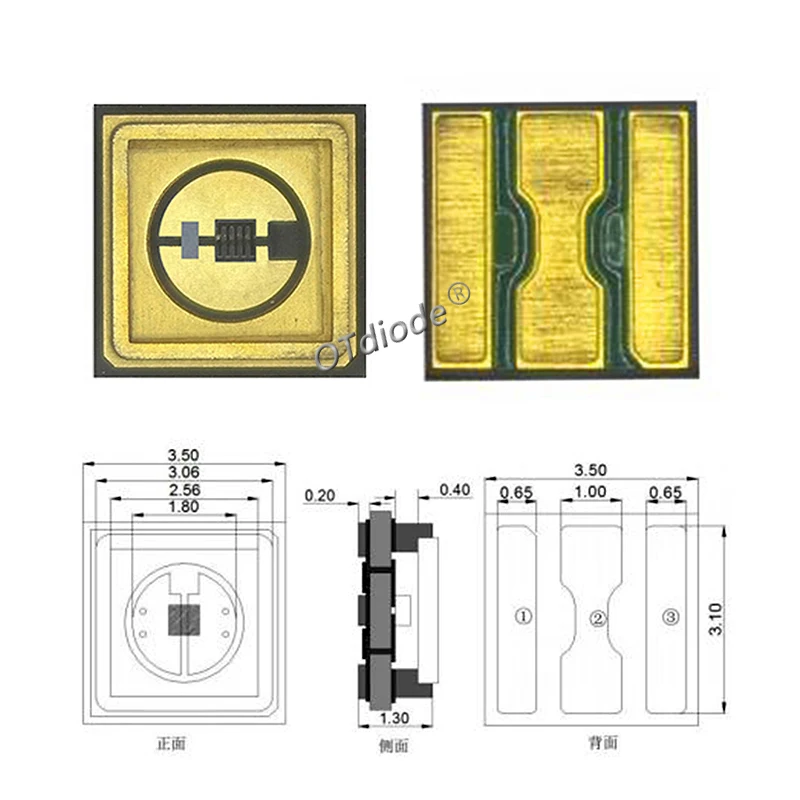

UVC-LED SMD3535 275/310nm Electro-Optical characteristics at 40mA (T=25°C, IF=40mA)

,
