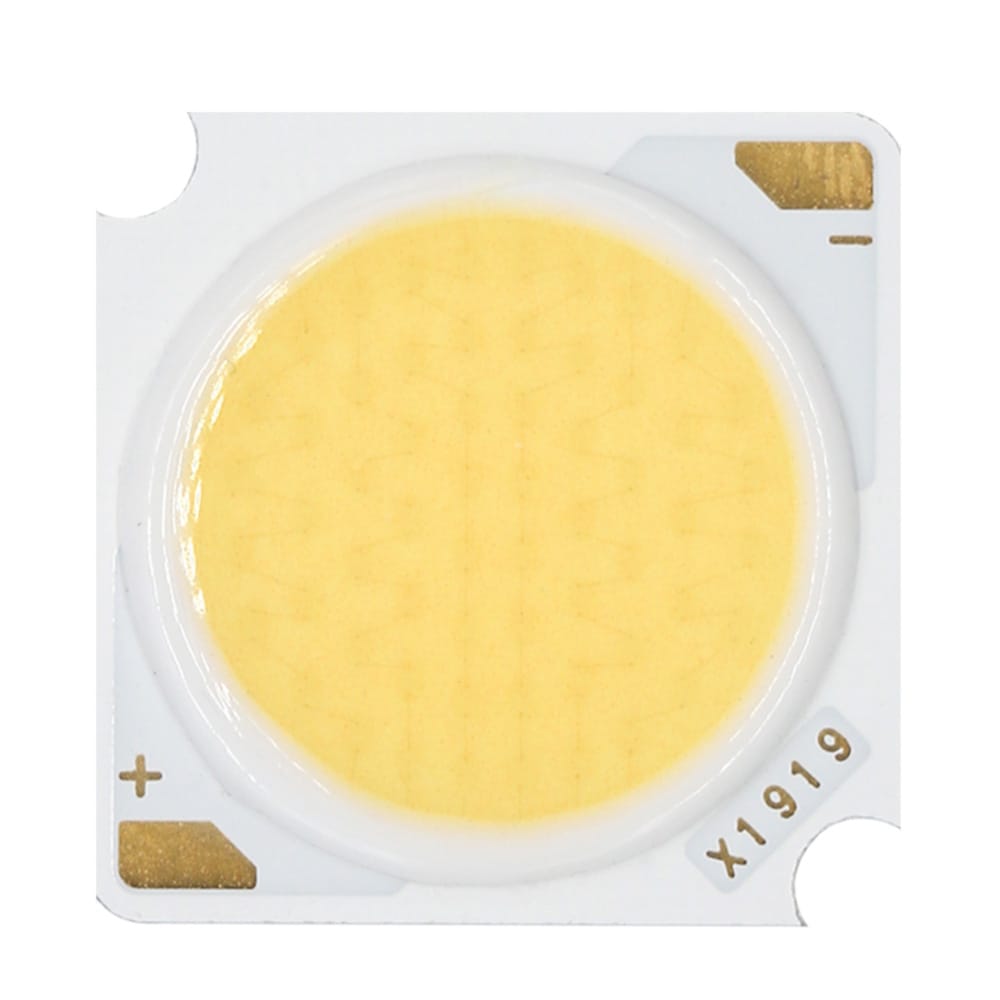

18W 30W 36W RA95 LED Bridgelux Chip Lamp Bead LED Source To Professional Light Bulbs For Photography & High Color Reproduction
modname=ckeditor
Product Details
Power: 18W
Voltage: DC30-32V
Current: 300-450mA±5%
Serial and parallel circuit: 3 series and 12 parallel

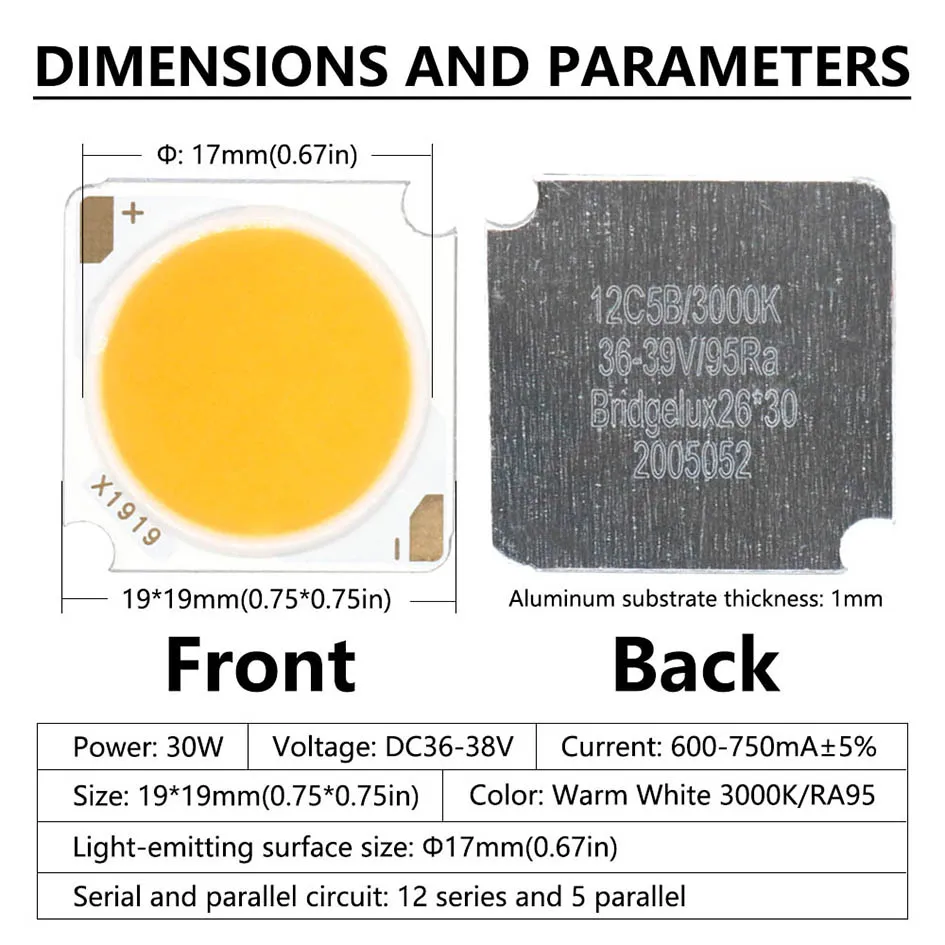

Size: 19*19mm(0.75*0.75in)
Light-emitting surface size: Φ17mm (0.67in)
Color: Warm White 3000K
Critical: RA95
Crystal size: 26*30mil
Crystal name: Bridgelux Chip
Lumens: 2340LM
Aluminum substrate thickness: 1.0mm (0.04in)
Thermal conductivity of aluminum substrate: 6.0W/(m·K)

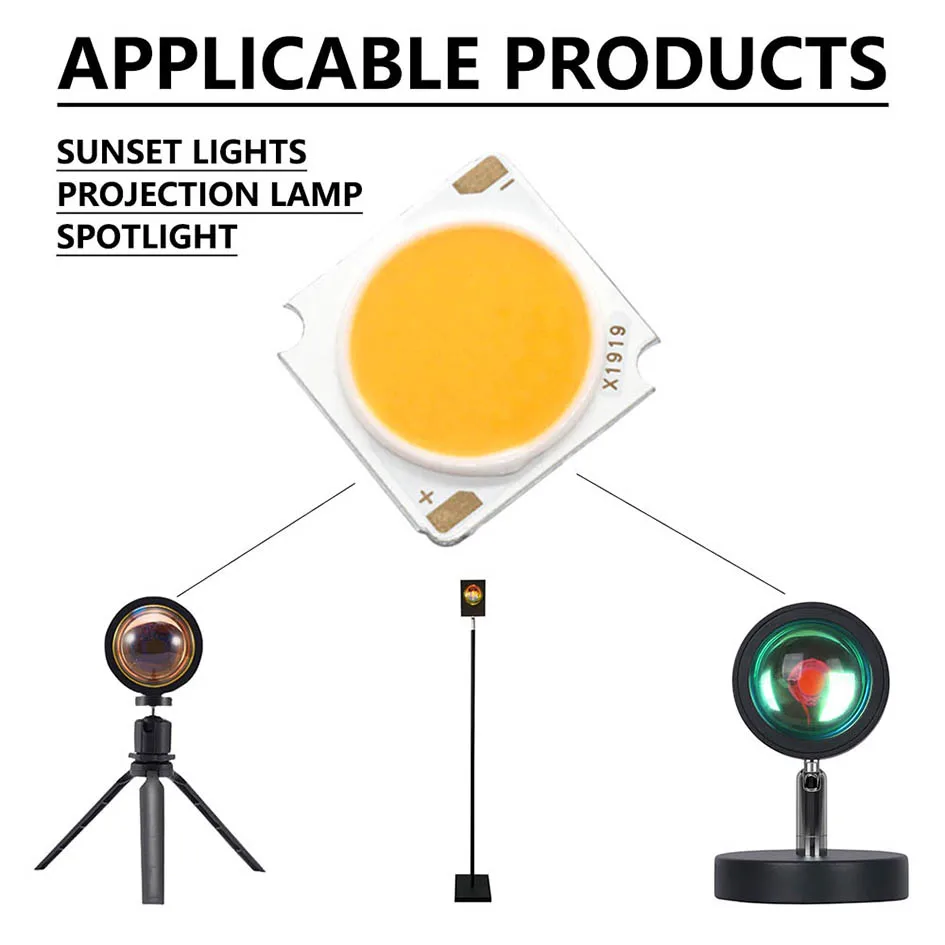

Application places: sunset lights, projection lights
Conditions of use: radiator required
Chip temperature does not exceed 65℃
Power: 30W
Voltage: DC30-32V
Current: 600-750mA±5%
Serial and parallel circuit: 5 series and 12 parallel
Size: 19*19mm(0.75*0.75in)
Light-emitting surface size: Φ17mm (0.67in)
Color: Warm White 3000K
Critical: RA95
Crystal size: 26*30mil
Crystal name: Bridgelux Chip
Lumens: 3900LM
Aluminum substrate thickness: 1.0mm (0.04in)
Thermal conductivity of aluminum substrate: 6.0W/(m·K)
Application places: sunset lights, projection lights
Conditions of use: radiator required
Chip temperature does not exceed 65℃
Power: 36W
Voltage: DC30-32V
Current: 750-900mA±5%
Serial and parallel circuit: 6 series and 12 parallel
Size: 19*19mm(0.75*0.75in)
Light-emitting surface size: Φ17mm (0.67in)
Color: Warm White 3000K
Critical: RA95
Crystal size: 36*30mil
Crystal name: Bridgelux Chip
Lumens: 4680LM
Aluminum substrate thickness: 1.0mm (0.04in)
Thermal conductivity of aluminum substrate: 6.0W/(m·K)
Application places: sunset lights, projection lights
Conditions of use: radiator required
Chip temperature does not exceed 65℃

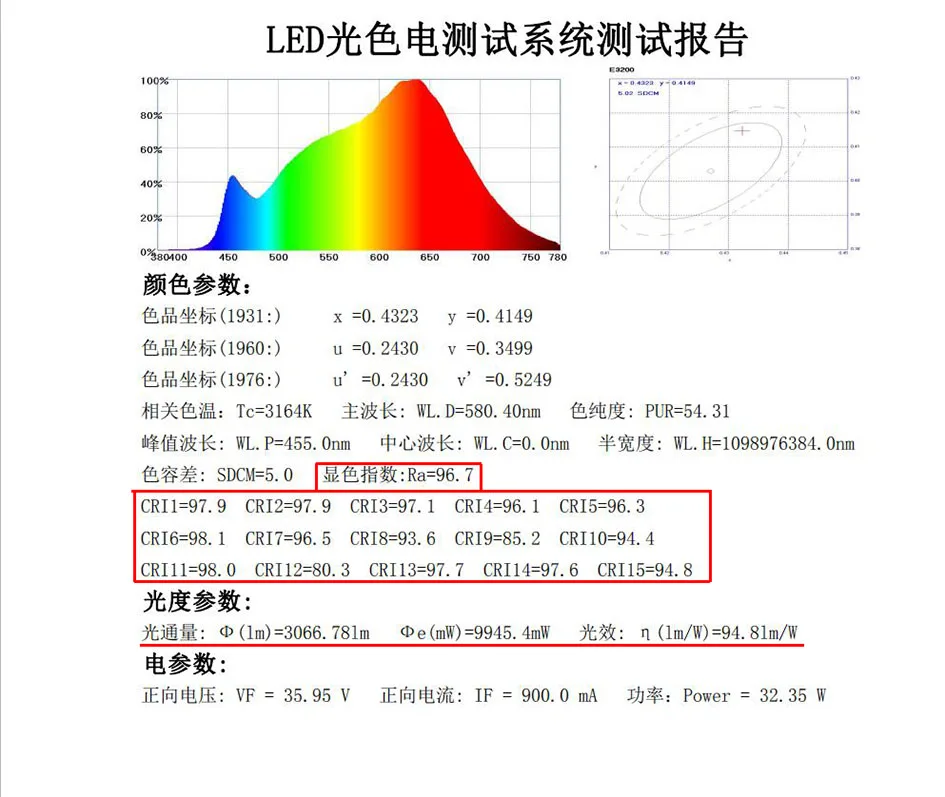

Detailed Data Analysis Report
,
