10X High power six pin RGB LED lamp beads supper brightness 9W/27W rgb led light source with epileds chip free shipping
>Specifications:
Life:> 50000Hr
Chip brand : Epileds Chip size : 9W---30Mil ; 27W---45mil
Other LED material : 99.99% gold wire , Copper stent ,Dow corning resin
Beam angle : 140 degreeWarranty: 3 years9W :
Lens Color | Emitting Color | Forward Current(IF) | Forward Voltage(VF) | wave(λd) /Color Temperature(Tc) | Luminous efficiency |
Water Clear | Red | 350mA | 7.0-9.0V | 620-630nm | 40-45lm/w |
Water Clear | Green | 350mA | 10.0-12.0V | 520-530nm | 75-80lm/w |
Water Clear | Blue | 350mA | 10.0-12.0V | 460-470nm | 15-20lm/w |
27W :
Lens Color | Emitting Color | Forward Current(IF) | Forward Voltage(VF) | wave(λd) /Color Temperature(Tc) | Luminous efficiency |
Water Clear | Red | 700mA | 7.0-9.0V | 620-630nm | 40-45lm/w |
Water Clear | Green | 700mA | 10.0-12.0V | 520-530nm | 75-80lm/w |
Water Clear | Blue | 700mA | 10.0-12.0V | 460-470nm | 15-20lm/w |
>Features:
1).LED chip is fixed on aluminum layer or aluminum base PCB.the heat from chip can be spread out through aluminum layer rapidly.
2).in normal voltage,small attenuation.attenuation below 1% 2000 hours.
3).the uniform light,soft light,no glare,no injury to the eye.
4).The high reliability,no dead lights,no plaque.
5).The free collocation and combination,from a variety of LED lamps,conventient assembly.
6).The environmental protection.

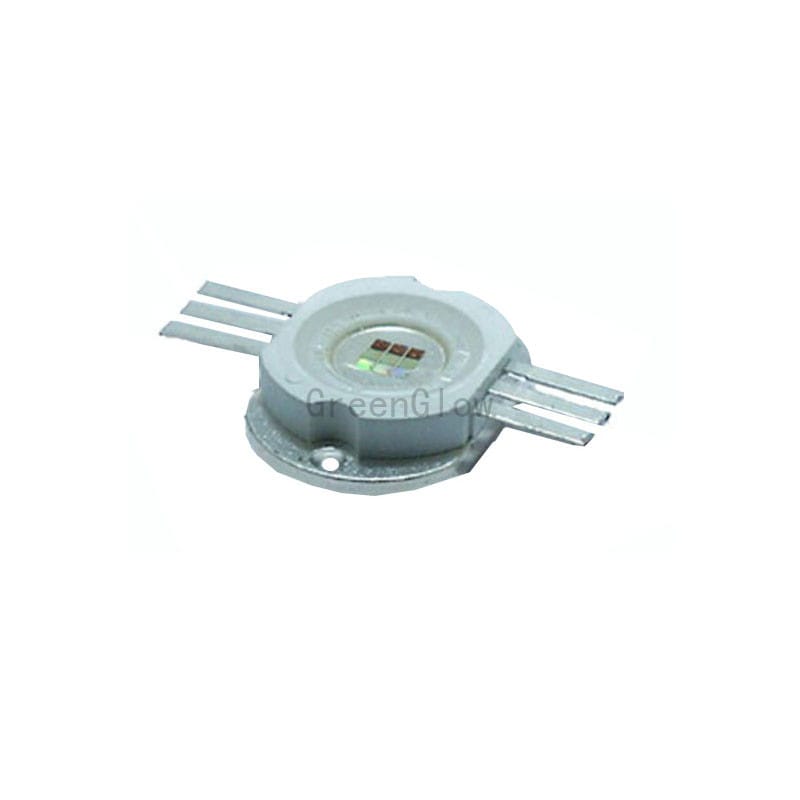

>Item picture:
>Product dimension(unit :mm):
,
