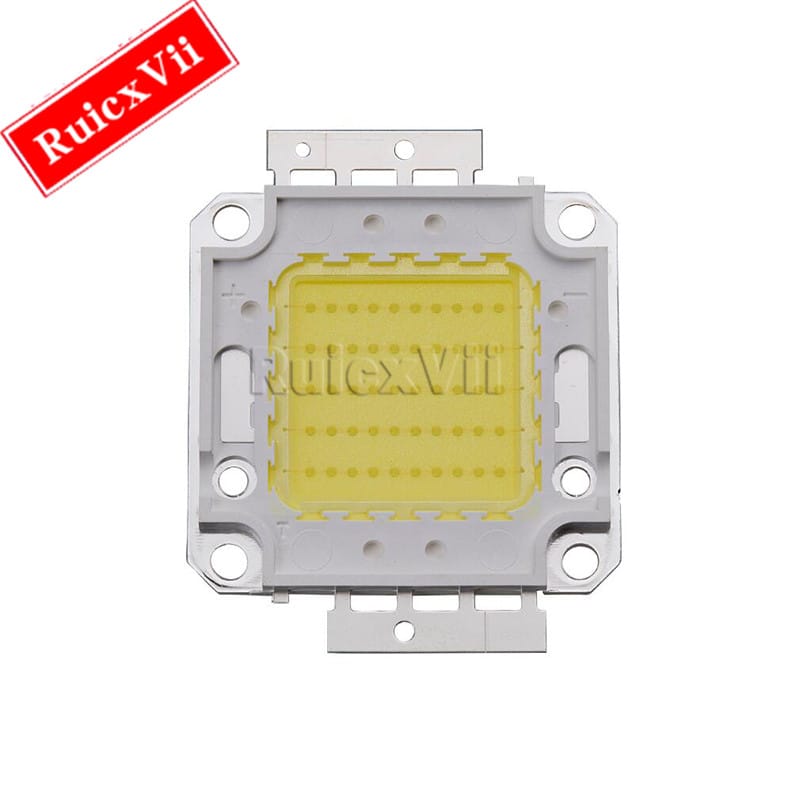

10W20W30W50W100W COB LED Integrated Matrix Diode Lamp Beads DIY Highlighting Spot Light Bulb DC9-12V 30-36V Warm White
10W high-power LED chip
Color temperature: Warm white (2800-3500K) White (6000-6500K)
Luminous flux: 90-110lm/w
Forward current: 850-900mA
Drive voltage: 9-12V
Integration solution: 3 series and 3 parallel connections
High power LED chip 20w 30w 50w 70w 80w 100w
Color temperature: Warm white (2800-3500K) White (6000k-6500K)
Luminous flux: 90-110lm/w
Forward current: 20w (600mA) 30w (900mA) 50w (1500mA) 100w (3000mA)
Drive voltage: 30-36V
Attention: It is necessary to have aluminum heat dissipation fins for heat dissipation, and do not power it without aluminum heat dissipation fins.
,
