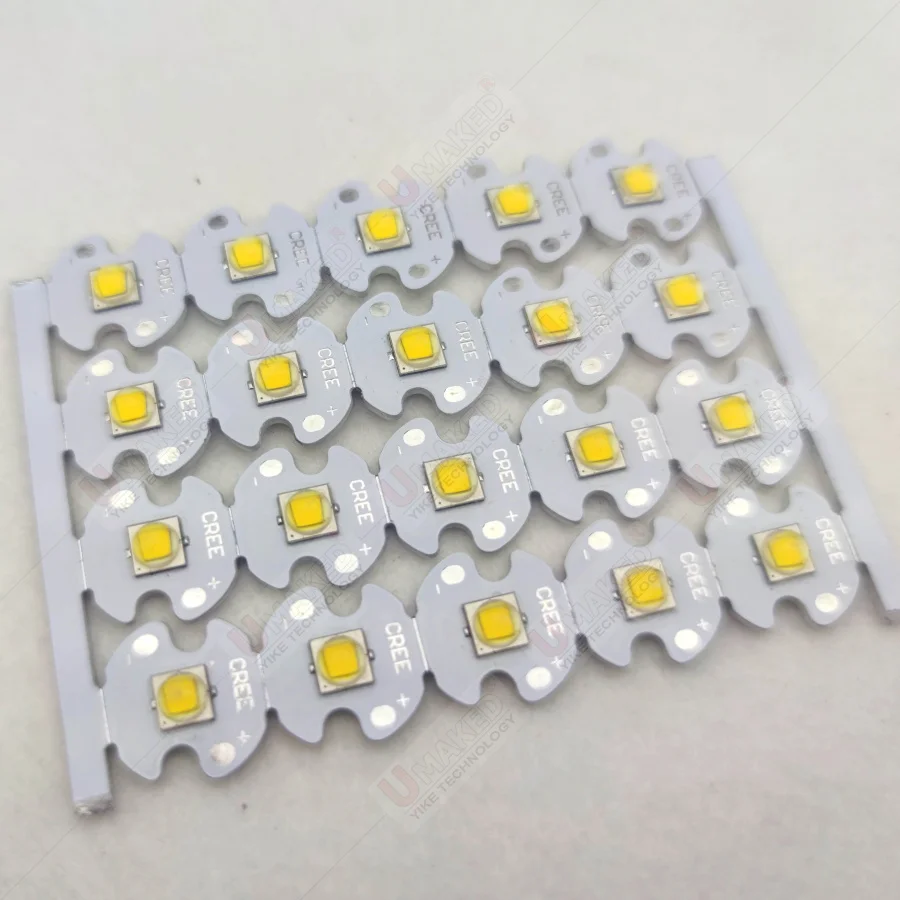

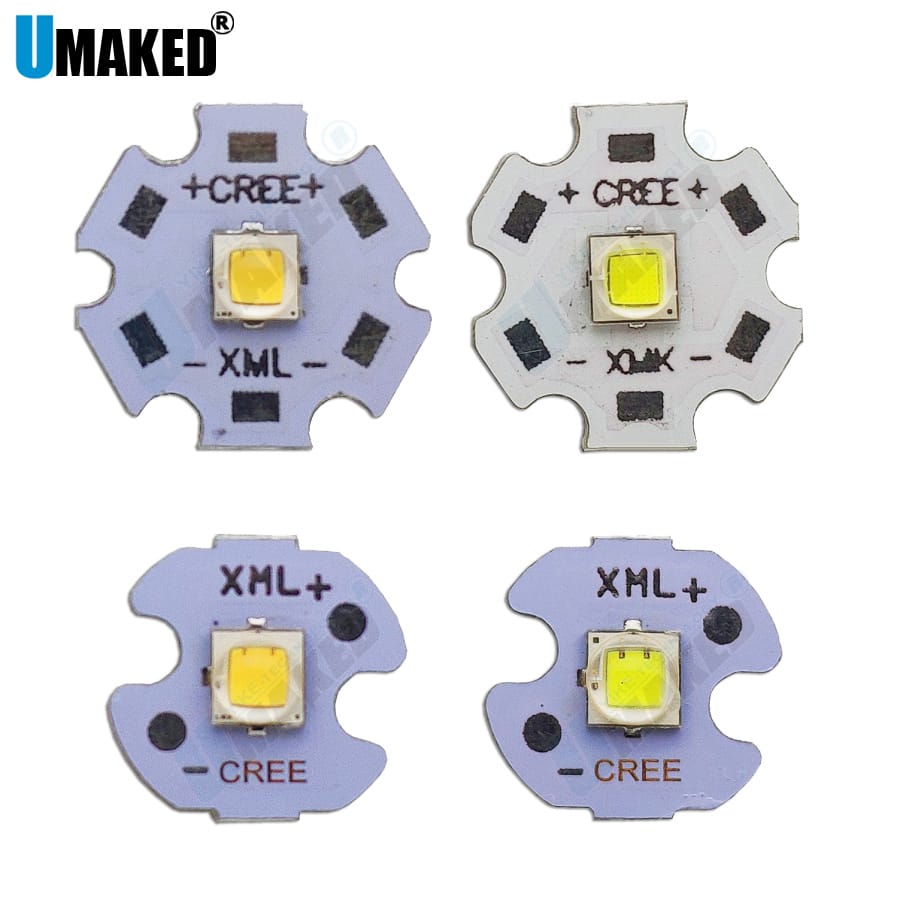

10W CREE XM-L2 LED light emitter diodes, WW/W/R/G/B/UV Light Power LED chip on 20mm 16mm PCB board Bead For Bicycle/Head lamp
XLamp XM-L2 Highest-Performing, Commercially Available, Single-Die LED
Delivering breakthrough lumen output and efficacy in the XM package, the XLamp XM-L2 LED is the highest-performing, commercially available, single-die LED. Built on the SC3; Technology Platform, the XLamp XM-L2 LED delivers up to 20
Low thermal resistance: 2.5C/W
Maximum junction temperature: 150C
Viewing angle: 125\'
ANSI-compatible chromaticity bins
Unlimited floor life at <30C/85% RH
Reflow solderable-JEDES J-STD-020C
Electrically neutral thermal path
Technical Parameters:
Model Type: Cree XM-L2
Emitted Color :Warm white/ White/ Red/ Green/ Blue/ UV Purple
Color Temperature: 3000K/ 6000K/ 620-625NM/ 520-525NM/ 460-465NM/ UV
DC Forward Voltage (VF): 2.9-4Vdc
DC Forward Current (IF): 3.0A
Power: 10W
Low thermal resistance: 2.5°C/W
Maximum junction temperature: 150°C
Viewing angle: 125°

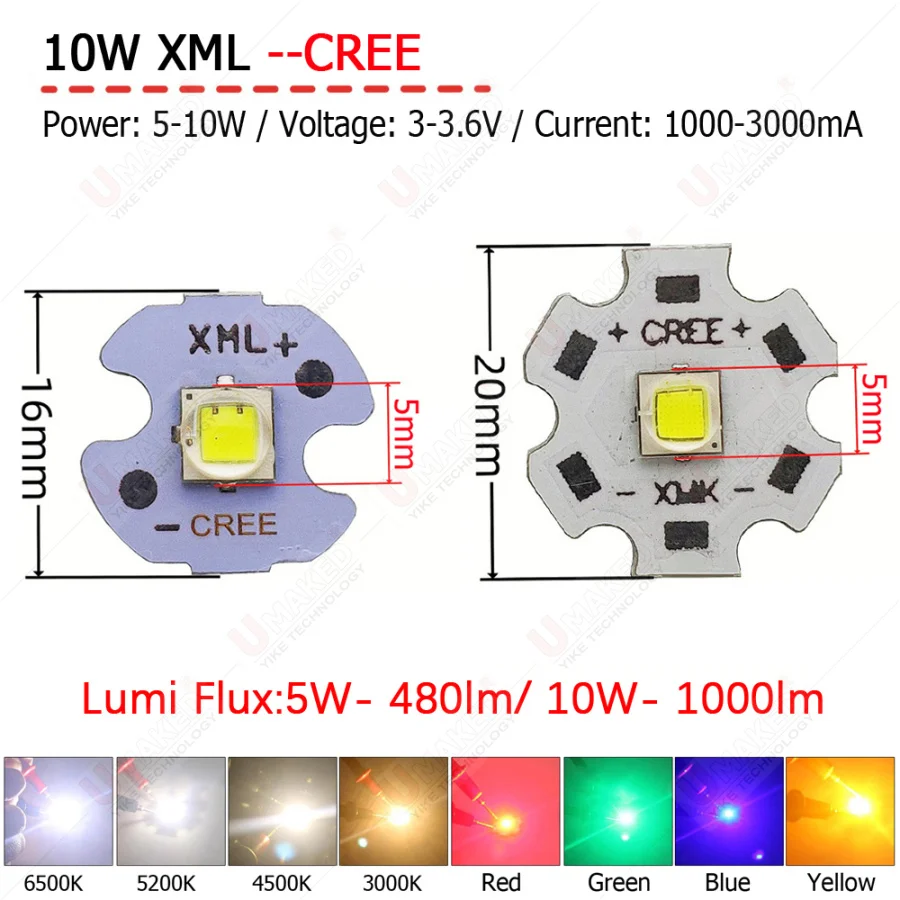

Diameter :16mm/20mm
ANSI-compatible chromaticity bins
Unlimited floor life at ≤ 30oC/85% RH
Reflow solderable - JEDEC J-STD-020C
Electrically neutral thermal path
Packing included:
5 x1piece XM-L2 leds Diodes
,
