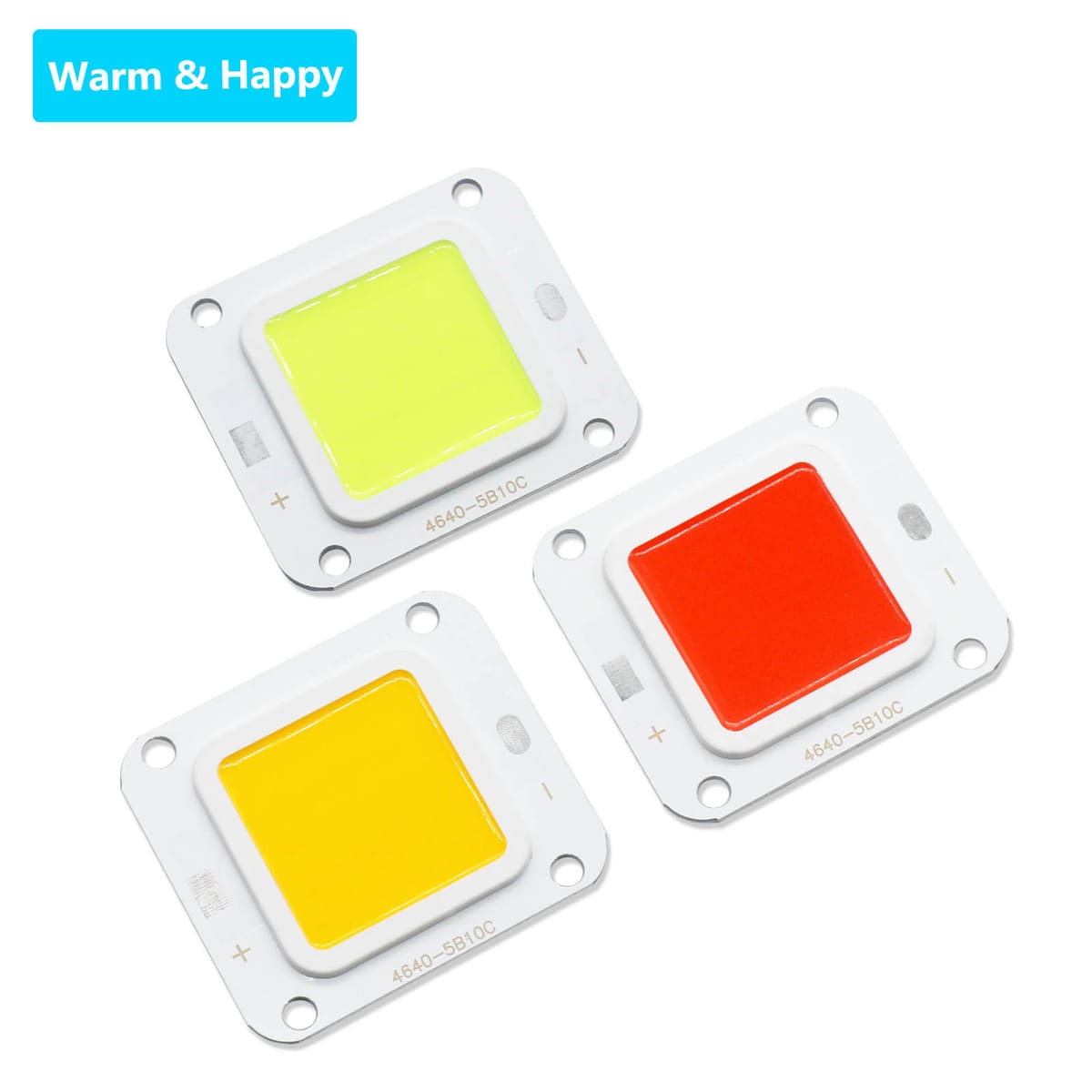

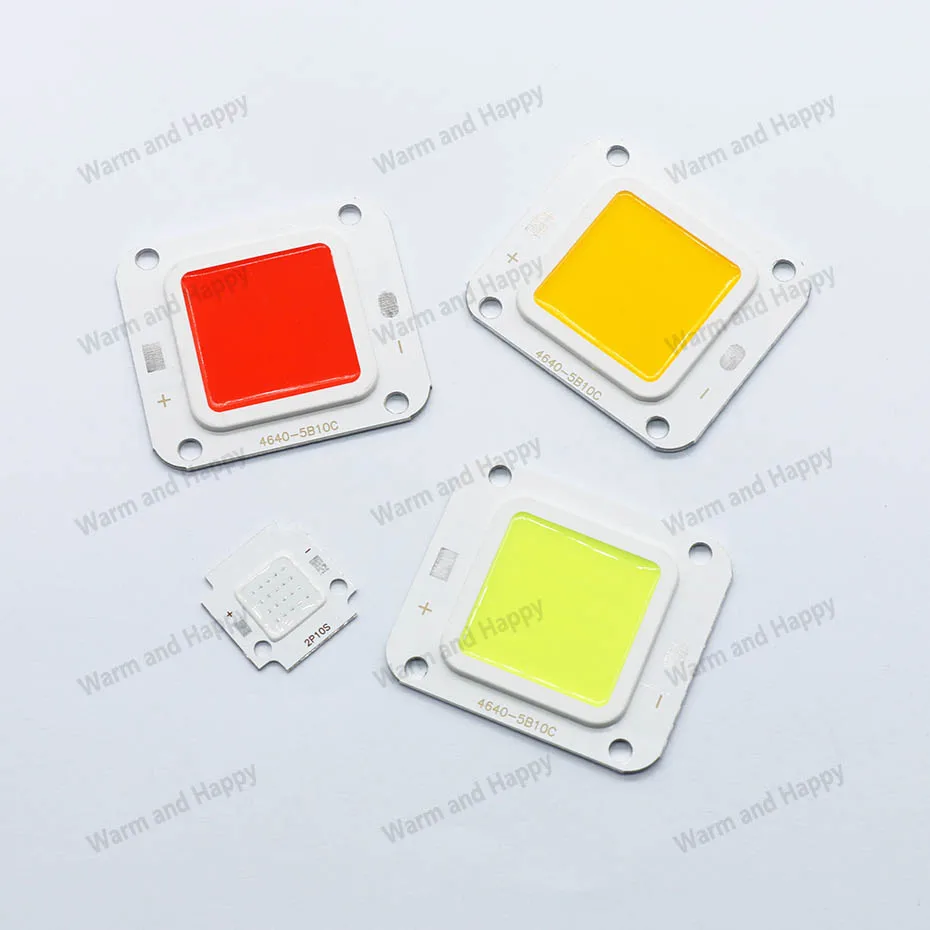

10W 20W 30W 50W High Power LED Chip Lamp DC30-32V LED COB Six Color Diode Bead Aluminum Floodlight Spot Light LED Bulb DIY
Product Details

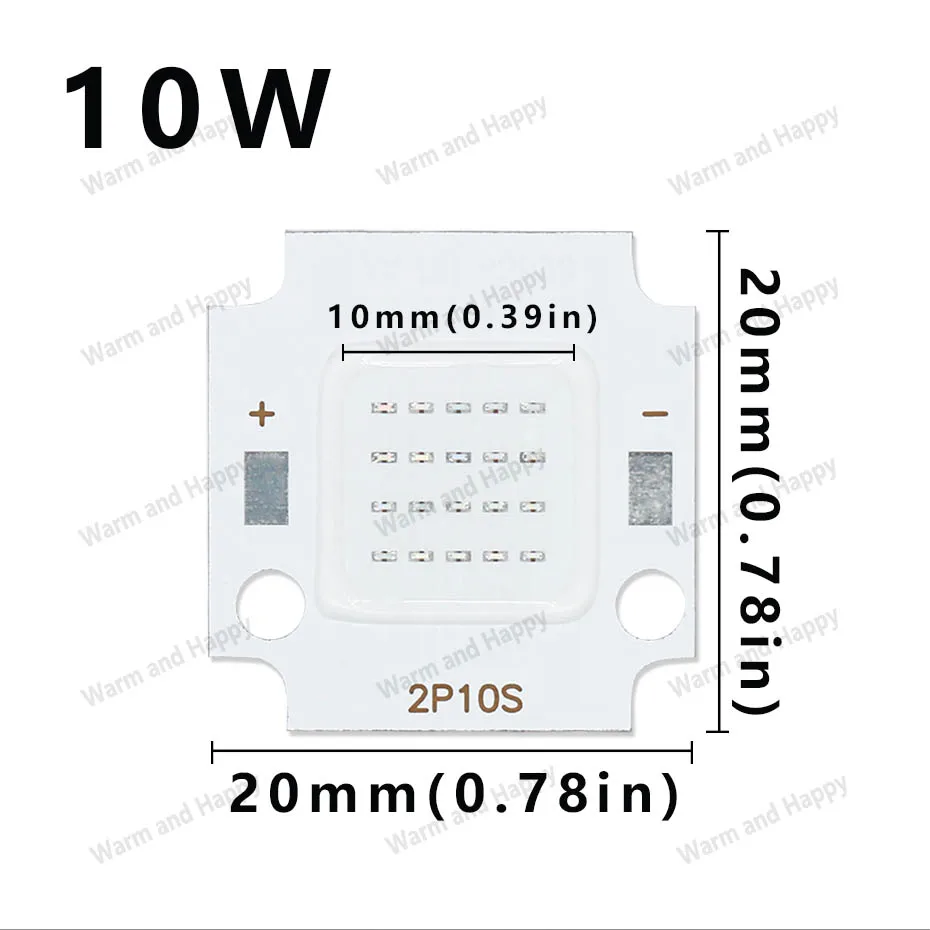

Power : 10W

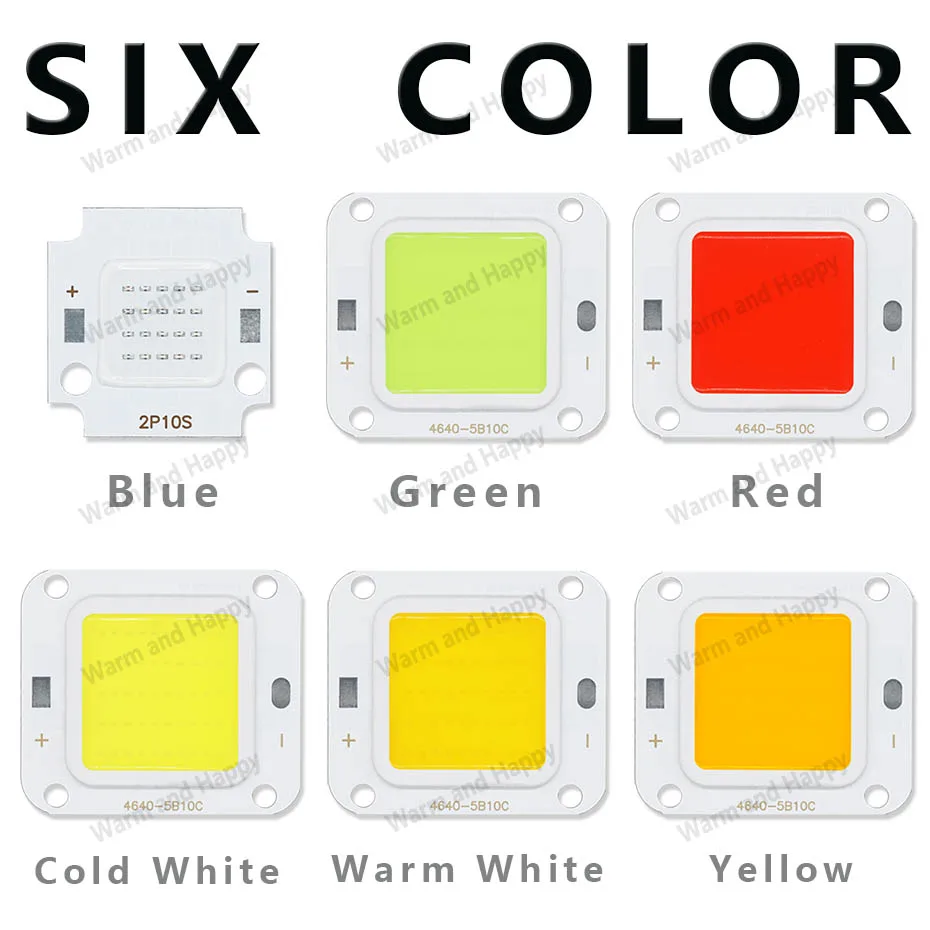

Color: Yellow/Warm White/White/Red/Green/Blue
Serial : 2 parallel circuits 10 series（2B10C）
Voltage : DC30-32V
Current : 280-300mA
Lumen : 1000lm
Display Value : Ra≥70
Chip Crystal Size : 10*21mil
Number of chip crystals :20pcs
Material : Aluminum PCB
Thickness : 1MM
Size : 20*20mm
Light-Emitting surface size : 10*10mm

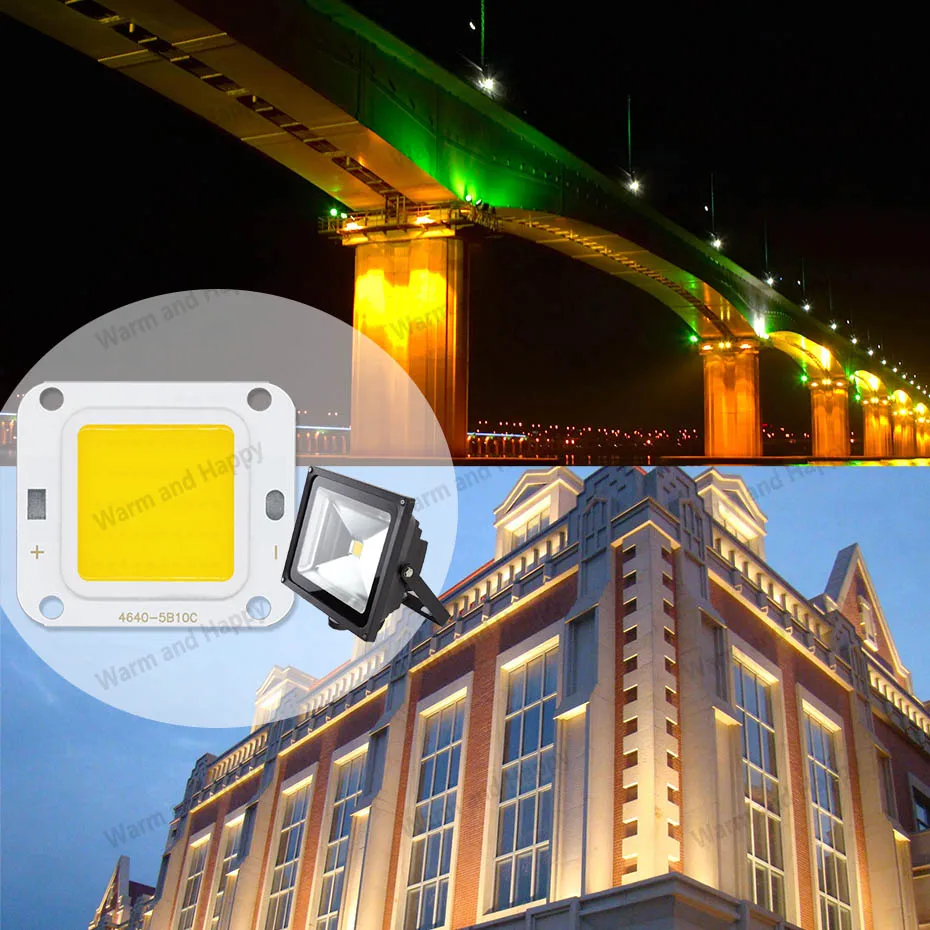

Application: Floodlight/Spotlight/LED Bulb

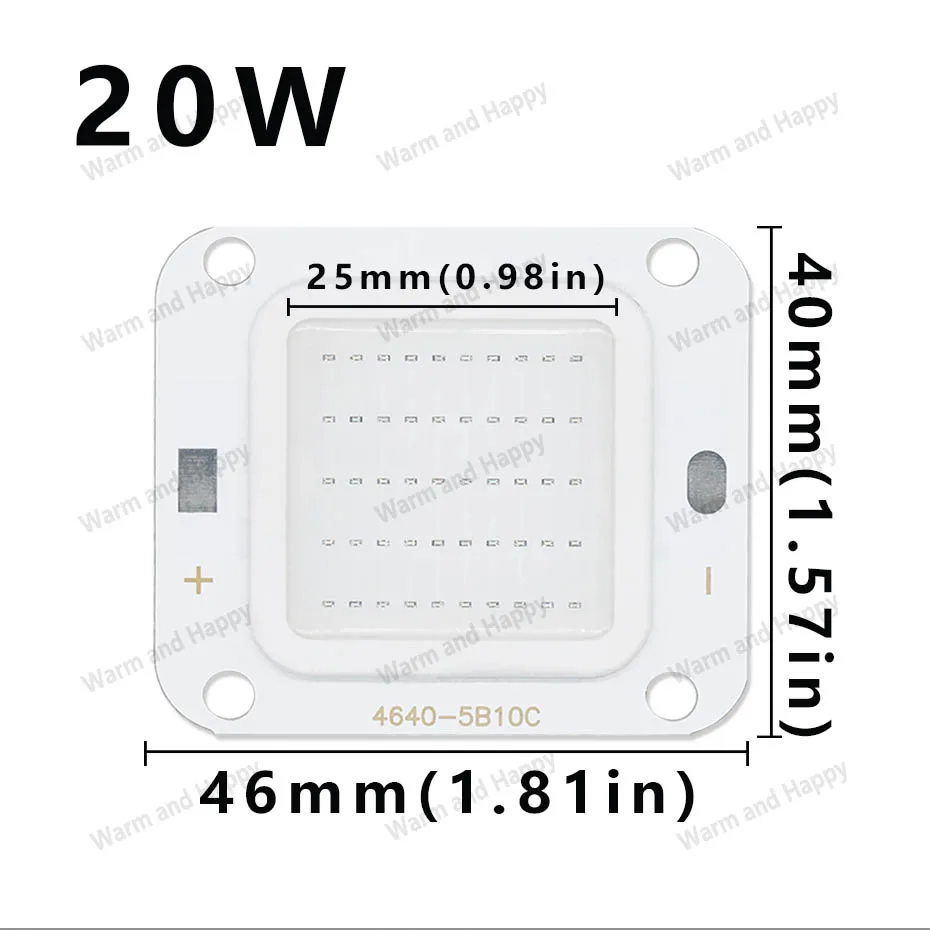

Power : 20W
Color: Yellow/Warm White/White/Red/Green/Blue
Serial : 5 parallel circuits 10 series（5B10C）
Voltage : DC30-32V
Current : 560-600mA
Lumen : 2000lm
Display Value : Ra≥70
Chip Crystal Size : 10*21mil
Number of chip crystals :50pcs
Material : Aluminum PCB
Thickness : 1.5MM
Size : 46*40mm
Light-Emitting surface size : 25*25mm
Application: Floodlight/Spotlight/LED Bulb

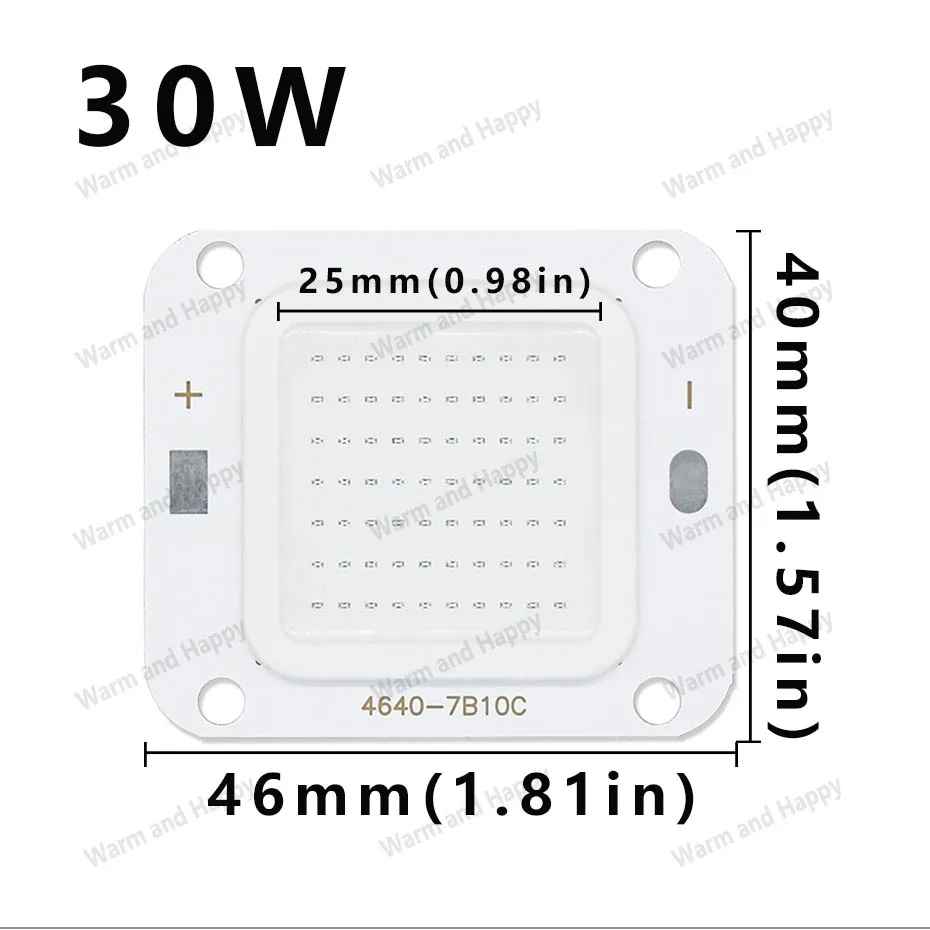

Power : 30W
Color: Yellow/Warm White/White/Red/Green/Blue

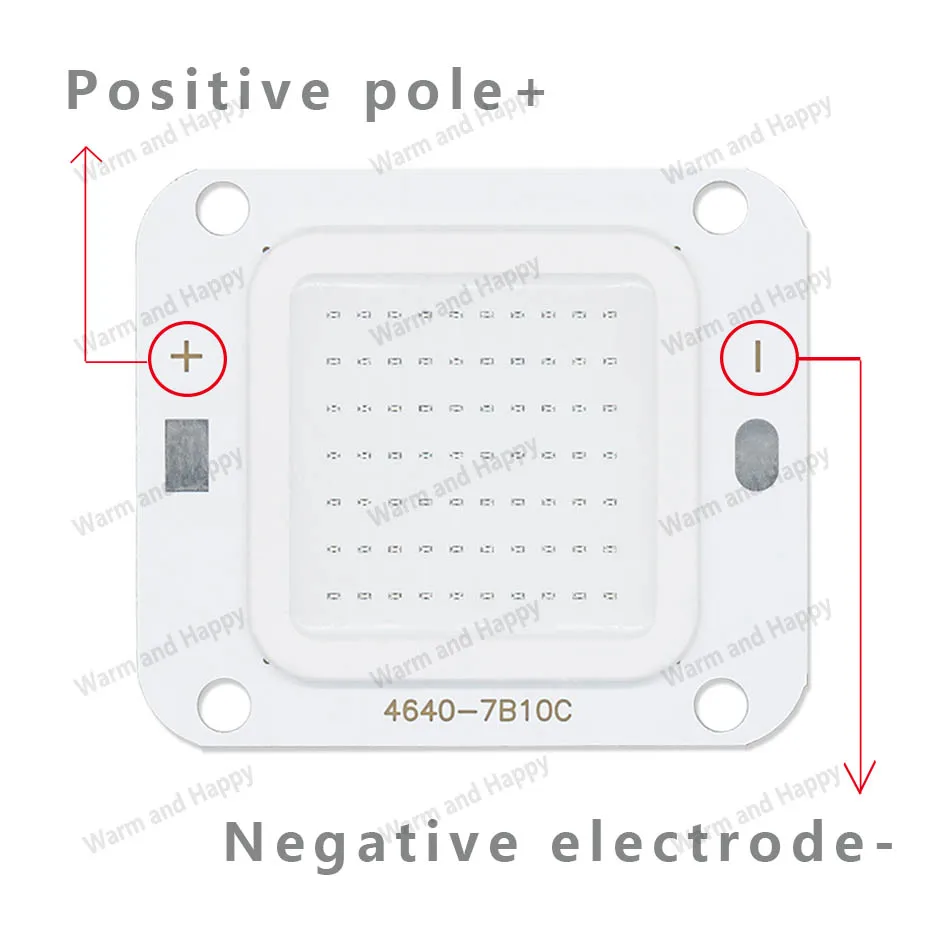

Serial : 7 parallel circuits 10 series（7B10C）
Voltage : DC30-32V
Current : 840-900mA
Lumen : 3000lm
Display Value : Ra≥70
Chip Crystal Size : 10*21mil
Number of chip crystals :70pcs
Material : Aluminum PCB
Thickness : 1.5MM
Size : 46*40mm
Light-Emitting surface size : 25*25mm
Application: Floodlight/Spotlight/LED Bulb

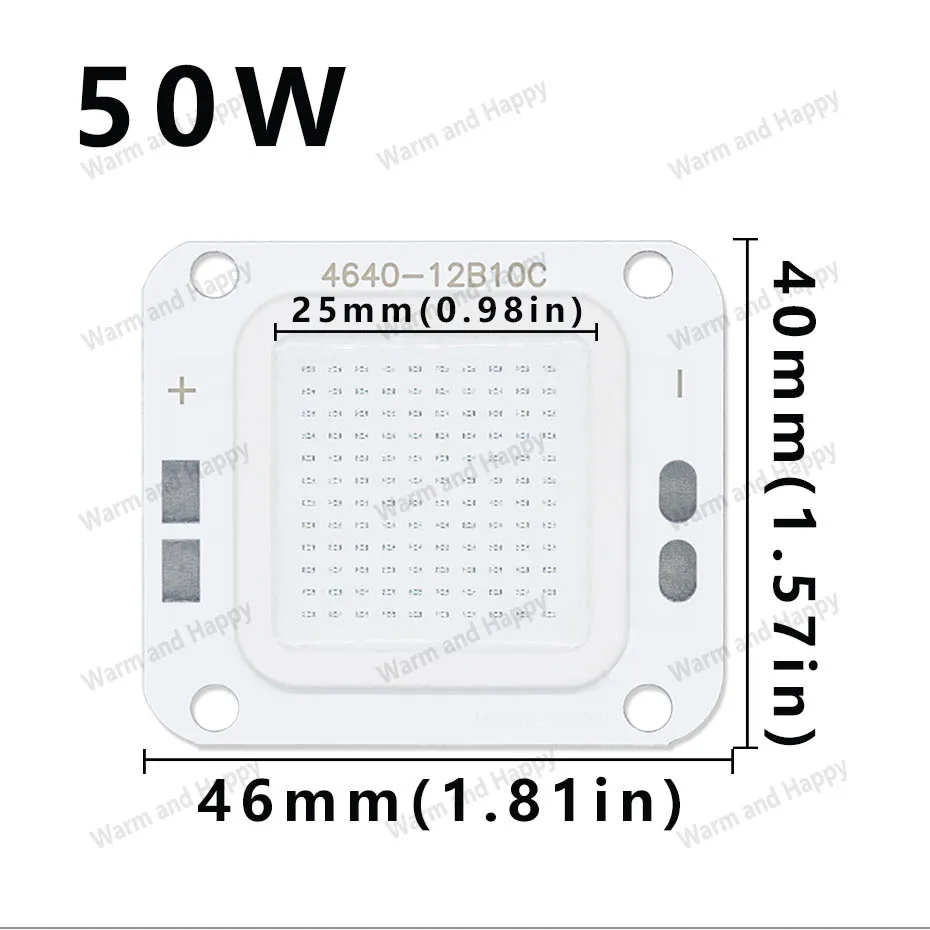

Power : 50W
Color: Yellow/Warm White/White/Red/Green/Blue
Serial : 12 parallel circuits 10 series（12B10C）
Voltage : DC30-32V
Current : 1400-1500mA
Lumen : 5000lm
Display Value : Ra≥70
Chip Crystal Size : 10*21mil
Number of chip crystals :120pcs
Material : Aluminum PCB
Thickness : 1.5MM
Size : 46*40mm
Light-Emitting surface size : 25*25mm
Application: Floodlight/Spotlight/LED Bulb
,
