10W 20W 30W 50W 100W DC 12-14V 30-32V COB Module LED Chip Diodes Lamp Bulb For Outdoor Focus Spotlight Integrated Light Bead DIY

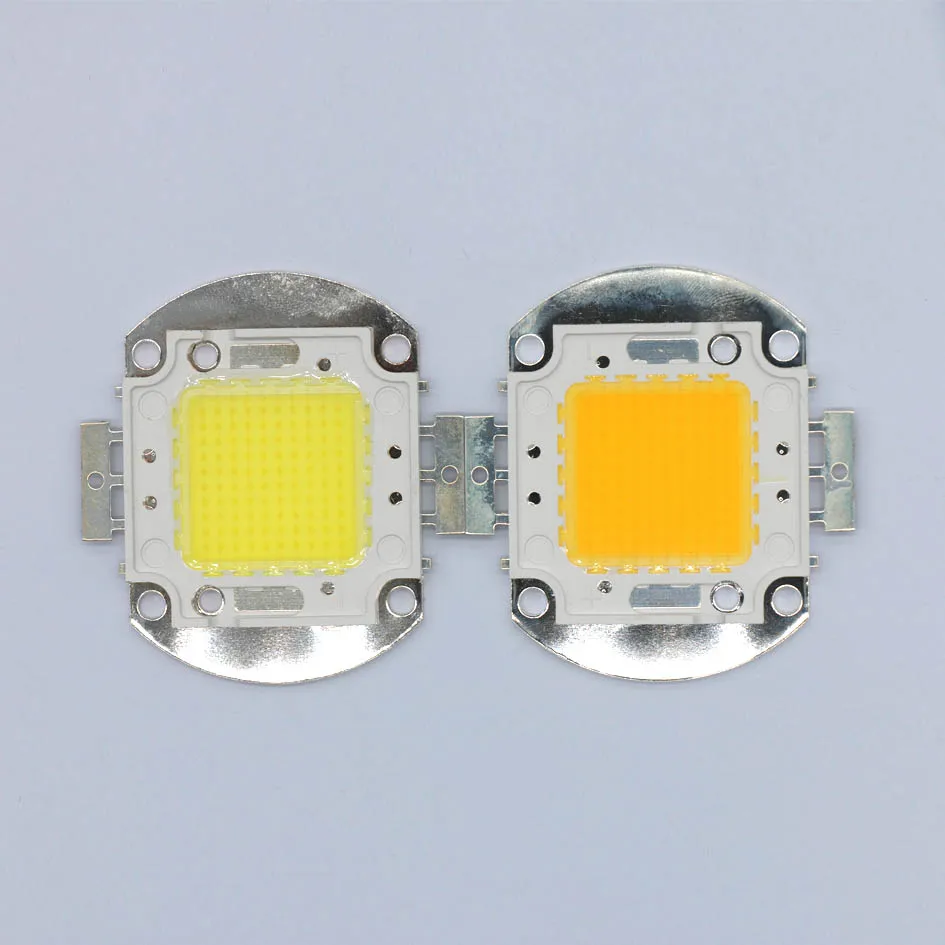

100W
Power: 100W
Voltage: DC30-32V
Current: 3000mA±5%
Serial and parallel circuit: 10 series and 10 parallel
Size: 57*53mm (2.2441*2.0866in)
Light-emitting surface size: 25*25mm (0.9842*0.9842in)
Crystal size: 35*35mil
Number of crystals: 100pcs
Crystal name: Epistar chip
Lumens: 12000LM
Copper substrate thickness: 1.5mm (0.0591in)
Thermal conductivity of copper substrate: 4.0W/(m·K)
Application place: Flood light
Conditions of use: radiator required
Chip temperature does not exceed 65℃
50W
Power: 50W
Voltage: DC30-32V
Current: 1500mA±5%
Serial and parallel circuit: 10 series and 5 parallel
Size: 57*53mm (2.2441*2.0866in)
Light-emitting surface size: 25*25mm (0.9842*0.9842in)
Crystal size: 35*35mil
Number of crystals: 50pcs
Crystal name: Epistar chip
Lumens: 6000LM
Copper substrate thickness: 1.5mm (0.0591in)
Thermal conductivity of copper substrate: 4.0W/(m·K)
Application place: Flood light
Conditions of use: radiator required
Chip temperature does not exceed 65℃
30W
Power: 30W
Voltage: DC30-32V
Current: 900mA±5%
Serial and parallel circuit: 10 series and 3 parallel
Size: 57*53mm (2.2441*2.0866in)
Light-emitting surface size: 25*25mm (0.9842*0.9842in)
Crystal size: 35*35mil
Number of crystals: 30pcs
Crystal name: Epistar chip
Lumens: 3600LM
Copper substrate thickness: 1.5mm (0.0591in)
Thermal conductivity of copper substrate: 4.0W/(m·K)
Application place: Flood light
Conditions of use: radiator required
Chip temperature does not exceed 65℃
20W
Power: 20W
Voltage: DC30-32V
Current: 600mA±5%
Serial and parallel circuit: 10 series and 2 parallel
Size: 57*53mm (2.2441*2.0866in)
Light-emitting surface size: 25*25mm (0.9842*0.9842in)
Crystal size: 35*35mil
Number of crystals: 20pcs
Crystal name: Epistar chip
Lumens: 2400LM
Copper substrate thickness: 1.5mm (0.0591in)
Thermal conductivity of copper substrate: 4.0W/(m·K)
Application place: Flood light
Conditions of use: radiator required
Chip temperature does not exceed 65℃

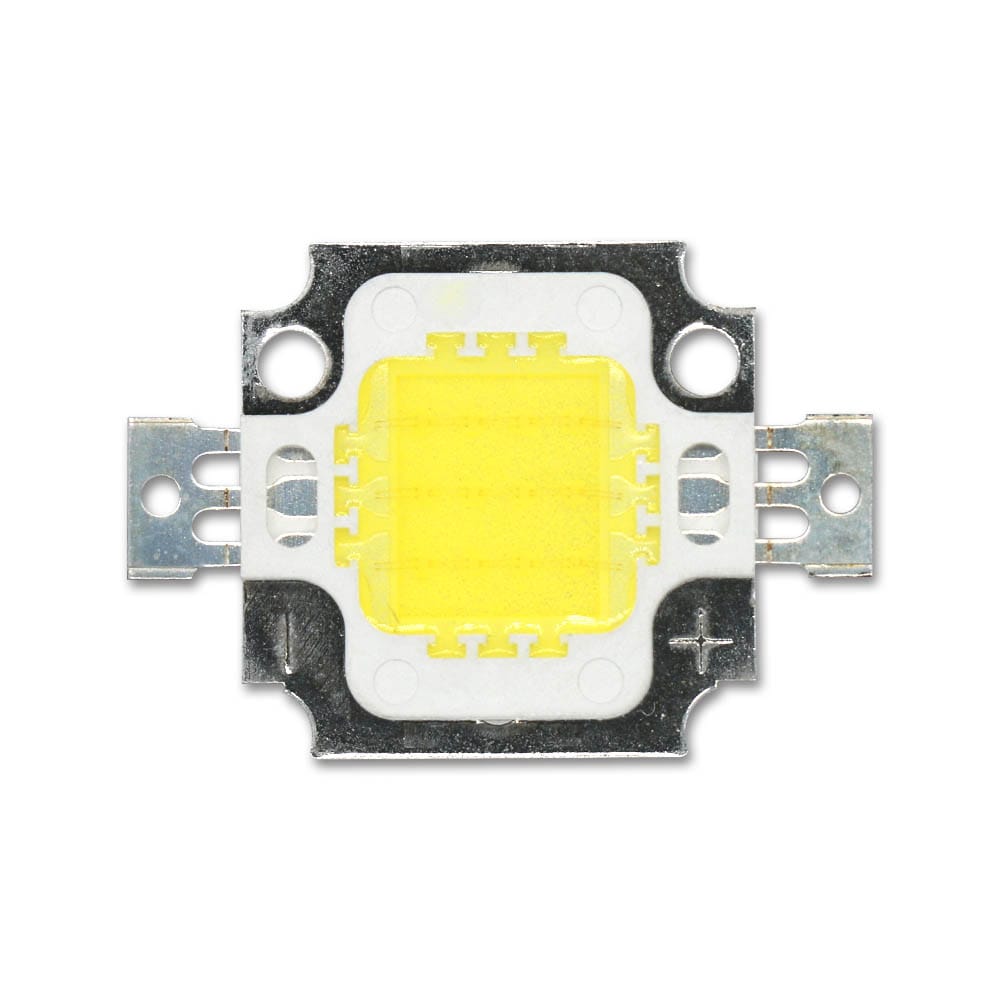

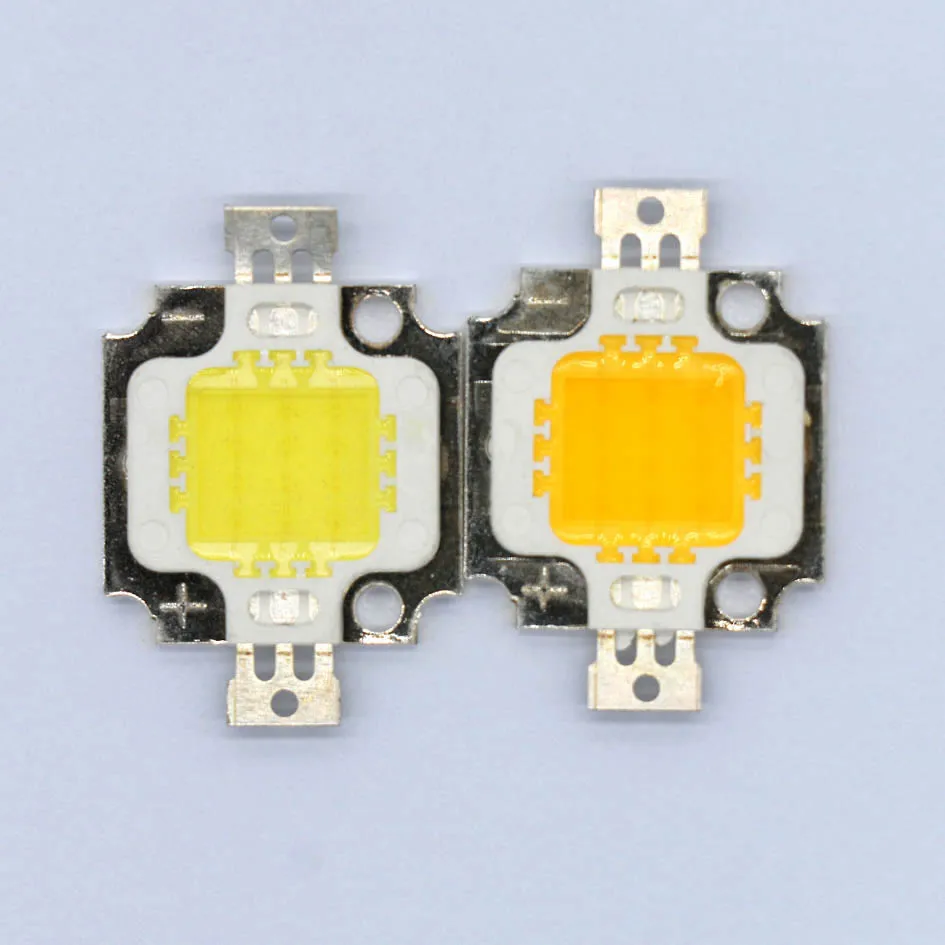

10W
Power: 10W
Voltage: DC12-14V
Current: 800mA±5%
Serial and parallel circuit: 4 series and 3 parallel
Size: 20*30mm (0.7874*1.1811in)
Light-emitting surface size: 12*12mm (0.4724*0.4724in)
Crystal size: 35*35mil
Number of crystals: 12pcs
Crystal name: Epistar chip
Lumens: 1200LM
Copper substrate thickness: 1.5mm (0.0591in)
Thermal conductivity of copper substrate: 4.0W/(m·K)
Application place: Flood light
Conditions of use: radiator required
Chip temperature does not exceed 65℃
,
