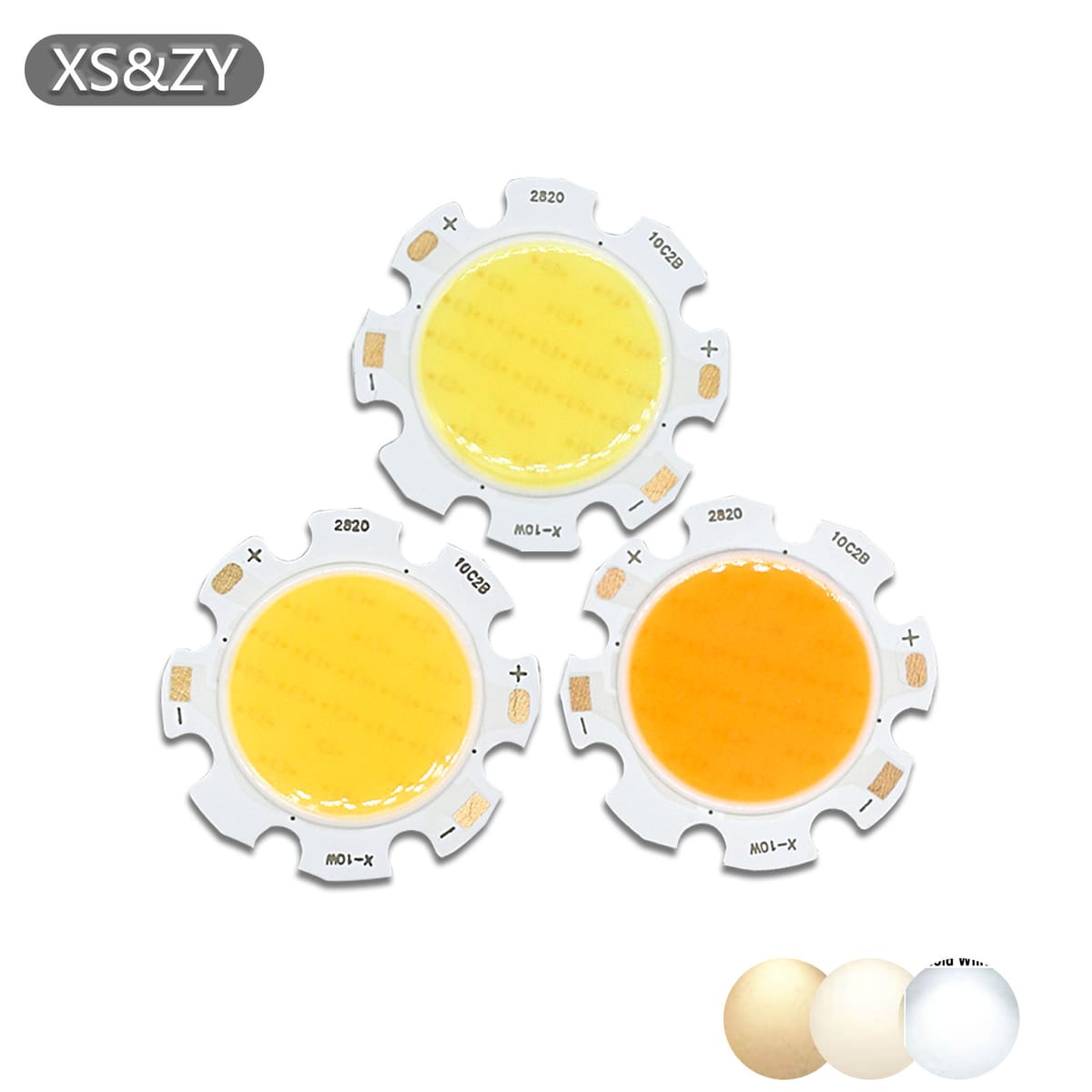

10pcs LED Lamp Bead COB Chip 2828 3W 5W 7W 10W CRI80 18*35 Light Emitting Diode Warm Natural White For Spotlights, hallway light
Specification
Power：3W
Voltage: 9-12V
Current : 300mA(max)
CRI: Ra≥80
Lumens: 360-390LM
LED Number : 6pcs Bridgelux Crystals
Crystal Size : 18*35mil
Serial/Parallel: 3C/2B
Luminous diameter : 20mm
Chip substrate thickness：1mm
Power：5W
Voltage: 15-18V
Current : 300mA(max)
CRI: Ra≥80
5W Lumens: 600-650LM
LED Number : 10pcs Bridgelux Crystals
Crystal Size : 18*35mil
Serial/Parallel: 5C/2B
Luminous diameter : 20mm
Chip substrate thickness：1mm
Power：7W
Voltage: 21-24V
Current : 300mA(max)
CRI: Ra≥80
7W Lumens: 840-910LM
LED Number : 14pcs Bridgelux Crystals
Crystal Size : 18*35mil
Serial/Parallel: 7C/2B
Luminous diameter : 20mm
Chip substrate thickness：1mm
Power：10W
Voltage: 30-33V
Current : 300mA(max)
CRI: Ra≥80
10W Lumens: 1200-1300LM
LED Number : 20pcs Bridgelux Crystals
Crystal Size : 18*35mil
Serial/Parallel: 10C/2B
Luminous diameter : 20mm
Chip substrate thickness：1mm
,
