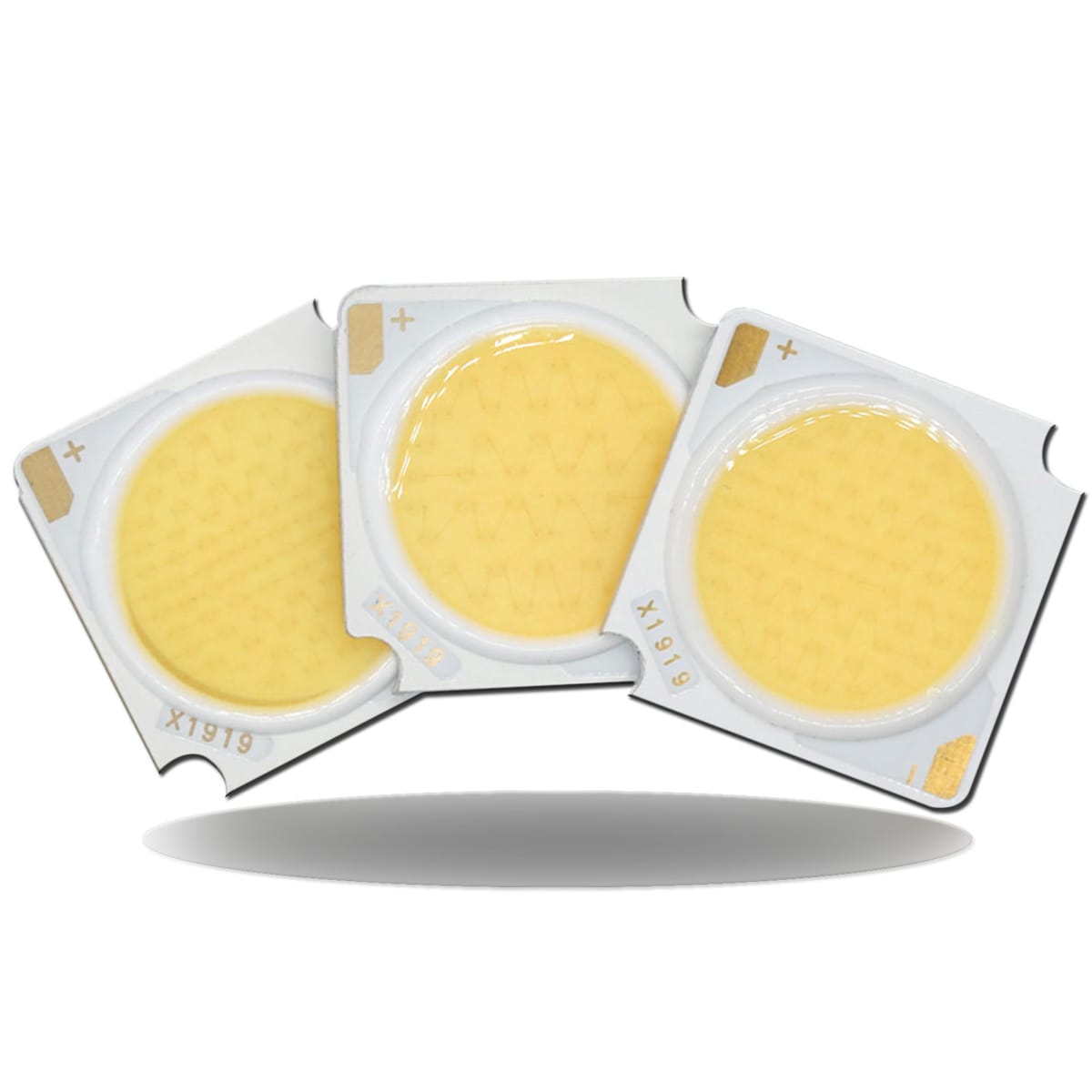

10PCS led Beads Super power 50W 40W 30W 20W 10W DC30-33V 1917mm led bridgelux chip for Backlight Flashing light Led module
Power: 10W/20W/30W/40W
Color: Cold white / Natural white /Warm white
Size: 19*19MM
Serial and parallel mode: 10W=10C2B,20W=10C4B
30W=10C6B ，40W=10C8B，50W=10B10C
Chip crystal size: Bridgelux 18*35mil
Chip substrate thickness:1mm
Lumens: 10W=1200ml，20W=2400ml
30W=3600ml，40W=4800ml，50W=6000ml
Input voltage: DC30-33V
Input Current: 10W=300mA,20W=600mA,
30W=900mA,40W=1200mA，50W=1500mA
CRI: Ra≥90
Chip material: Gold thread 99.99%
Imported Bridgelux crystal chip
,
