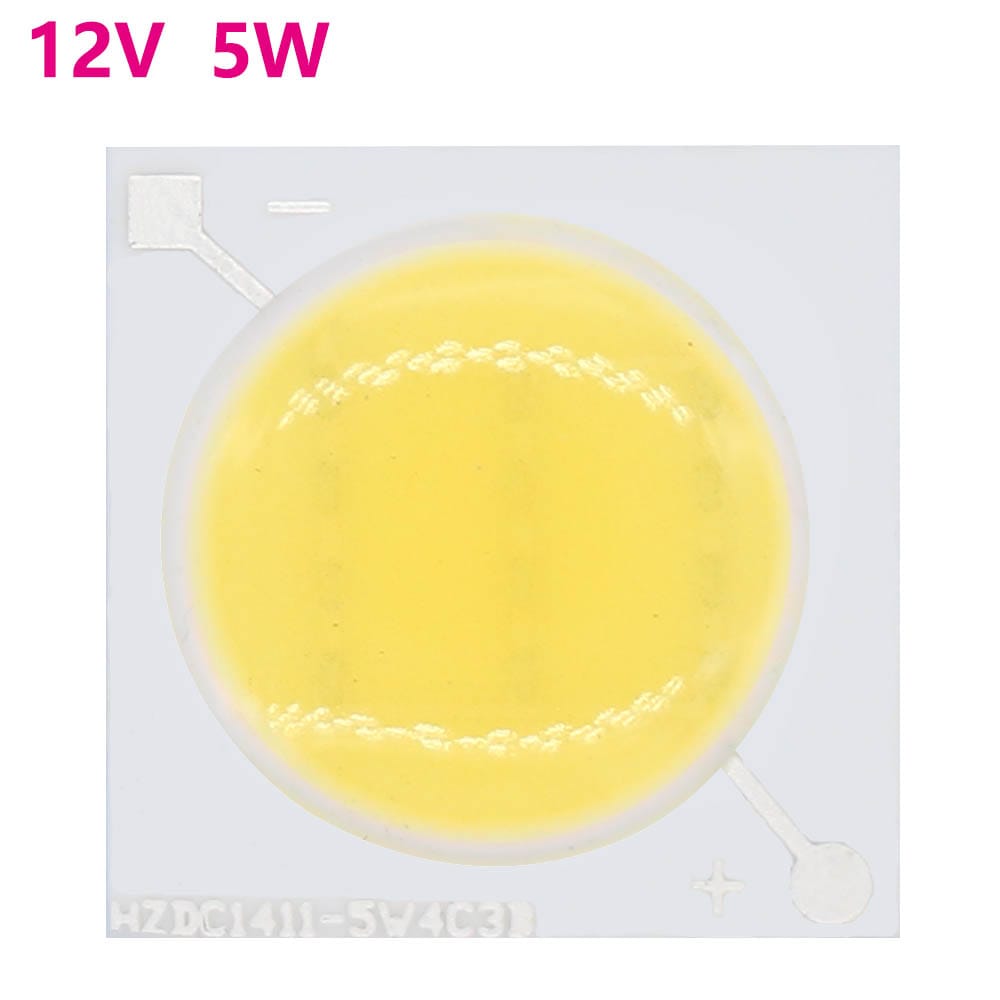

Power：5W and 10W
Color： Cold white / warm white
Volotage : DC 12V

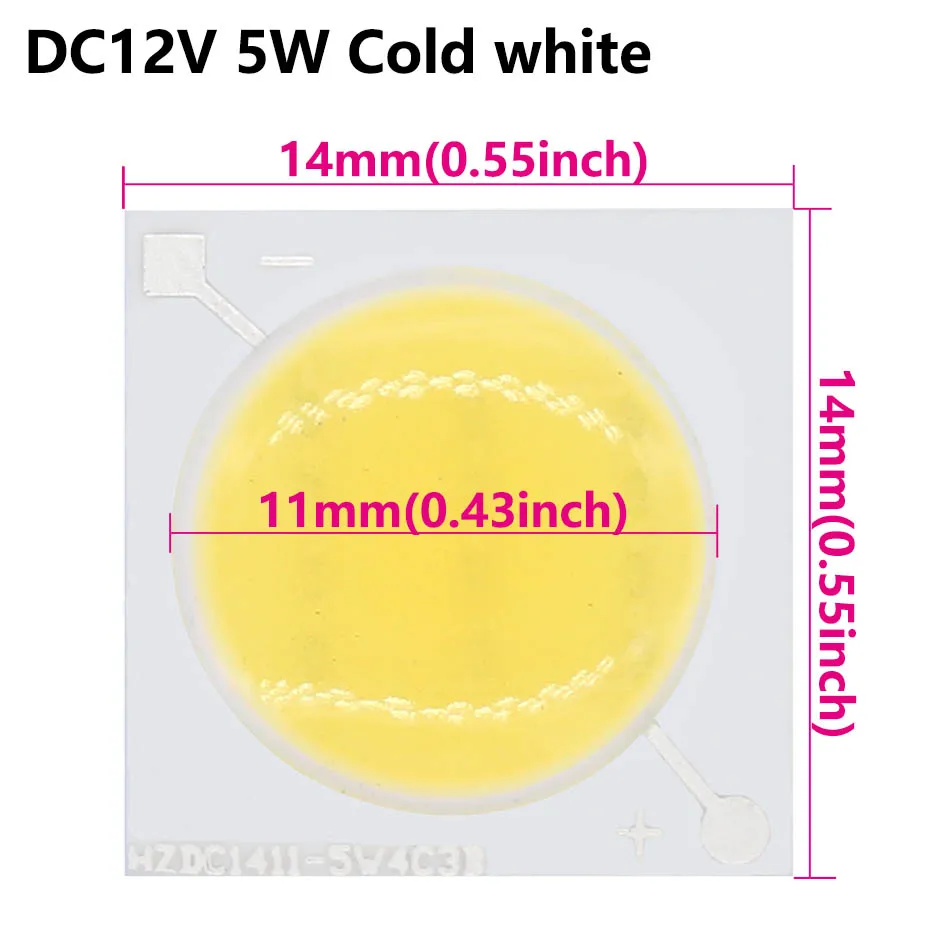

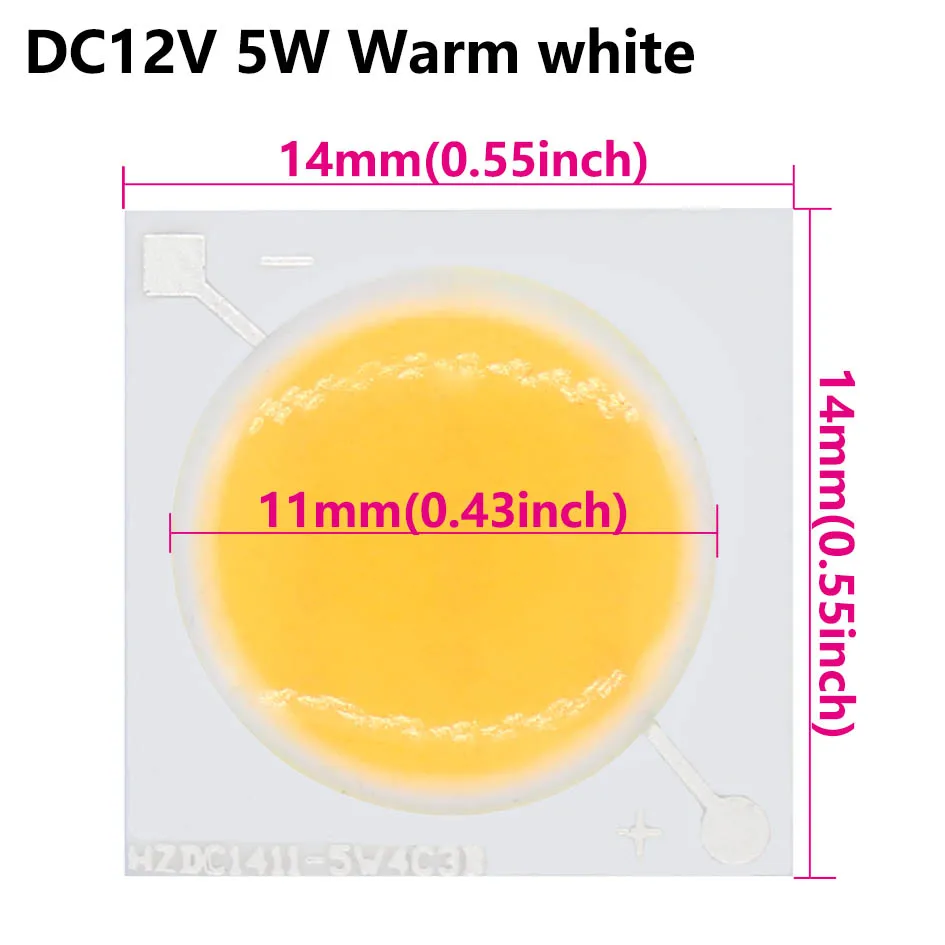

Size : 14*14mm(Luminous area=11mm)
Lumen: 5W= 500lm ，10W=1000lm
Material: ceramic substrate
Ceramic substrate thermal conductivity: 20 w / mk
Heat dissipation: you need a radiator
Welding temperature: 250-300 ℃, no more than 3 seconds, and the welding angle is 25 °.
N = positive
L = negative
,
