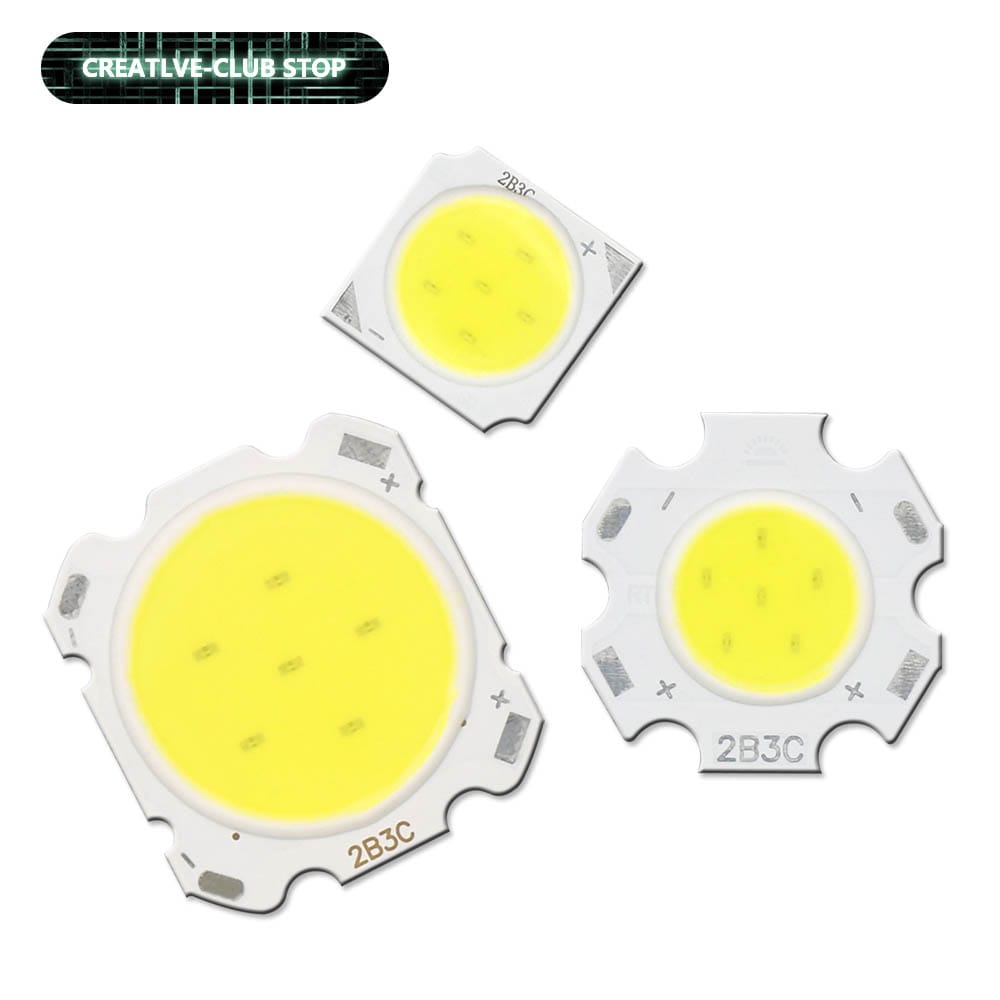

10pcs a lot LED COB Source Lamp Beads 3W 5W 7W 10W White/Warm White/Neutral White Flashlight Light Bulb Light Lamp Spotlight DIY
Product details
Model: 1313
Model: 1313
Power：3W/5W/7W/10W
CRI: Ra≥70
Crystal Size : 10*21mil
Shiny surface ：φ11mm
OutSize:13*13mm
LED Voltage and Current:
3W=DC9-10V 250mA(max)
5W=DC15-17V 250mA(max)
7W=DC20-22V 250mA(max)
10W=DC30-32V 250mA(max)
LED Lumens:
3W=270-300LM
5W=450-500LM
7W=630-700LM
10W=900-1000LM
Model: 2020
Model: 2020
Power：3W/5W/7W/10W
CRI: Ra≥70
Crystal Size : 10*21mil
Shiny surface ：φ11mm
OutSize:20*20mm
LED Voltage and Current:
3W=DC9-10V 250mA(max)
5W=DC15-17V 250mA(max)
7W=DC20-22V 250mA(max)
10W=DC30-32V 250mA(max)
LED Lumens:
3W=270-300LM
5W=450-500LM
7W=630-700LM
10W=900-1000LM
Model: 2422
Model: 2422
Power：3W/5W/7W/10W
CRI: Ra≥70
Crystal Size : 10*21mil
Shiny surface ：φ20mm
OutSize:24*22mm
LED Voltage and Current:
3W=DC9-10V 250mA(max)
5W=DC15-17V 250mA(max)
7W=DC20-22V 250mA(max)
10W=DC30-32V 250mA(max)
LED Lumens:
3W=270-300LM
5W=450-500LM
7W=630-700LM
10W=900-1000LM
,
