10PCS 3W High Power LED Chip light bead emitter Cool White Warm White Red Green Blue Pink Yellow RGB with 20MM Star PCB

Ghost

— 4 min read

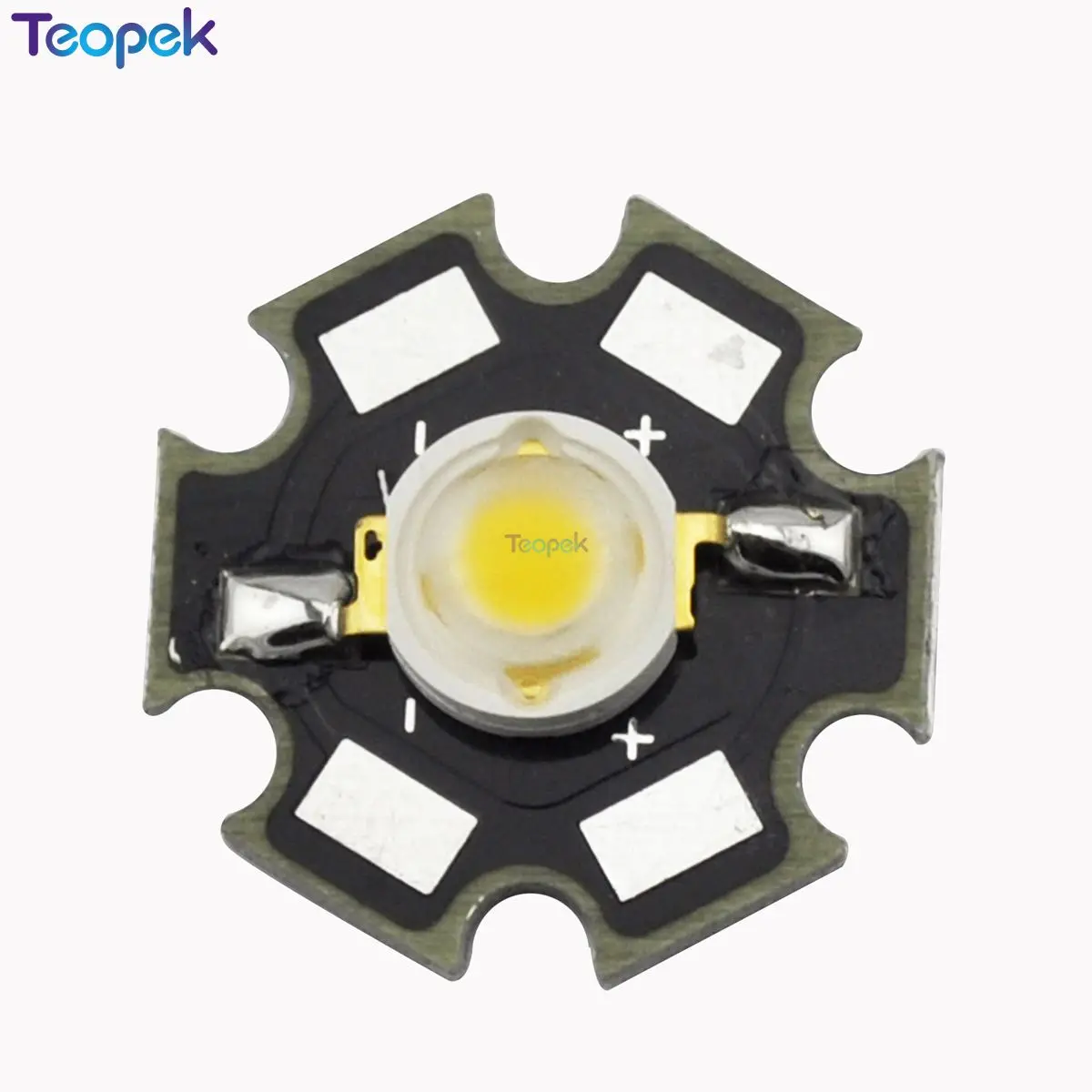

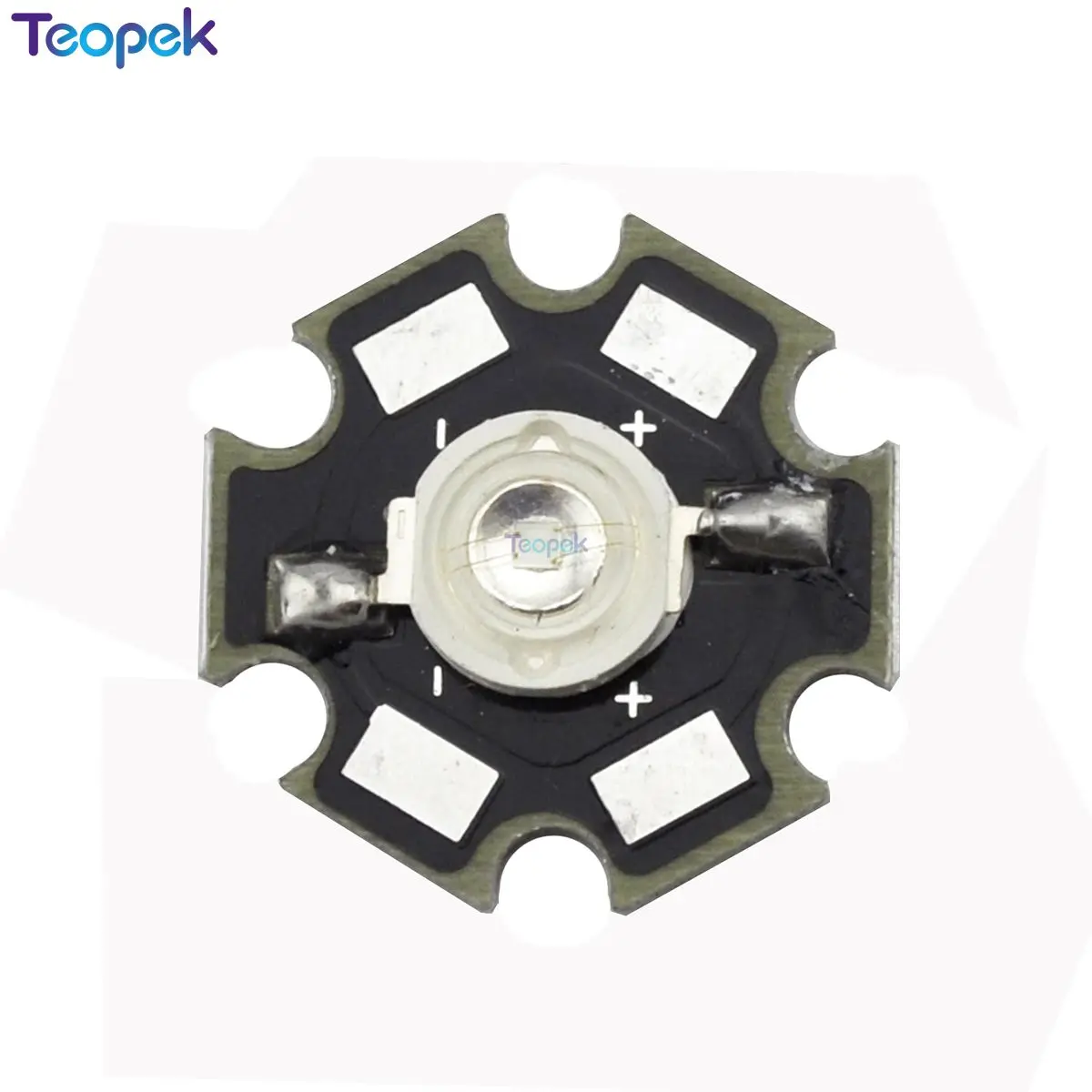

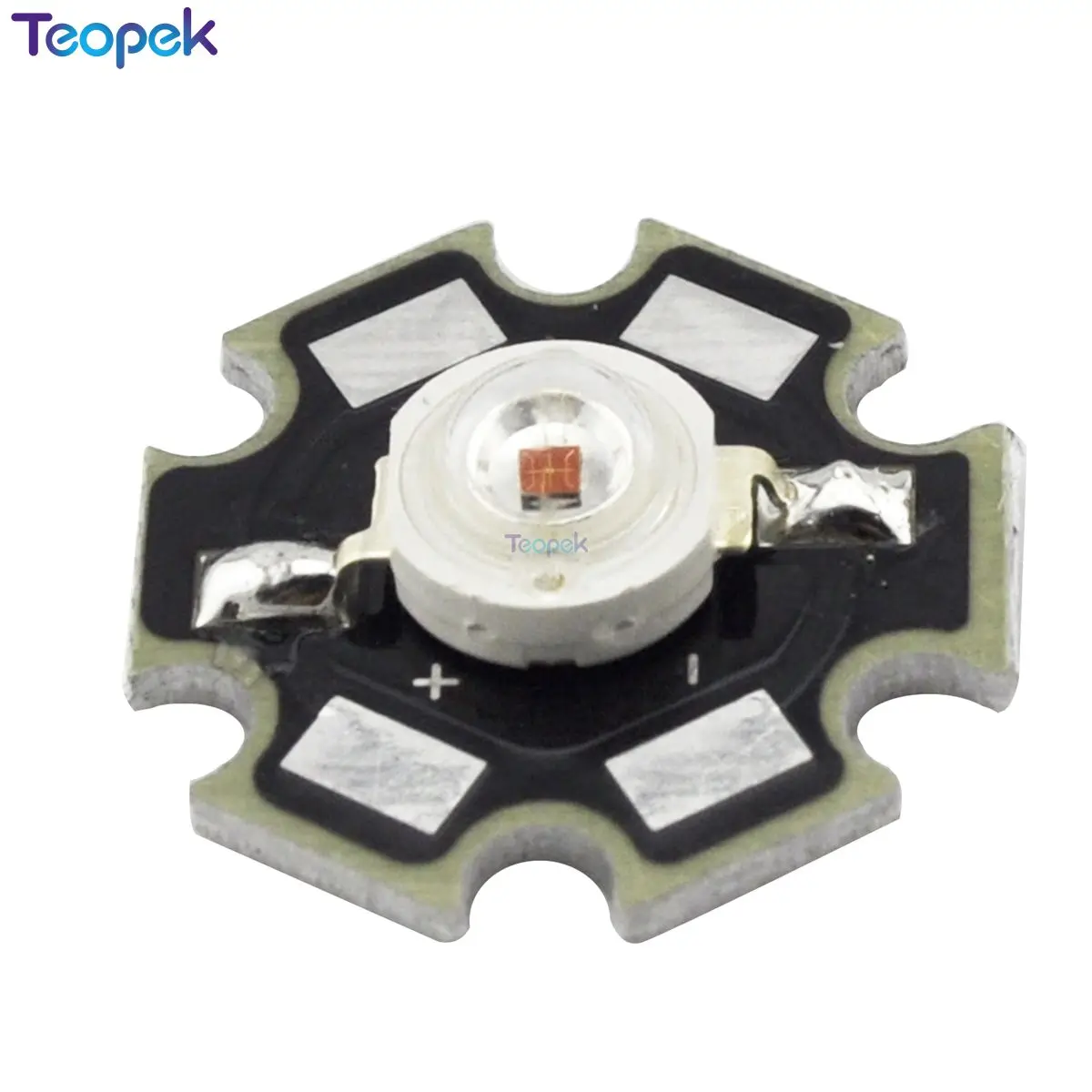

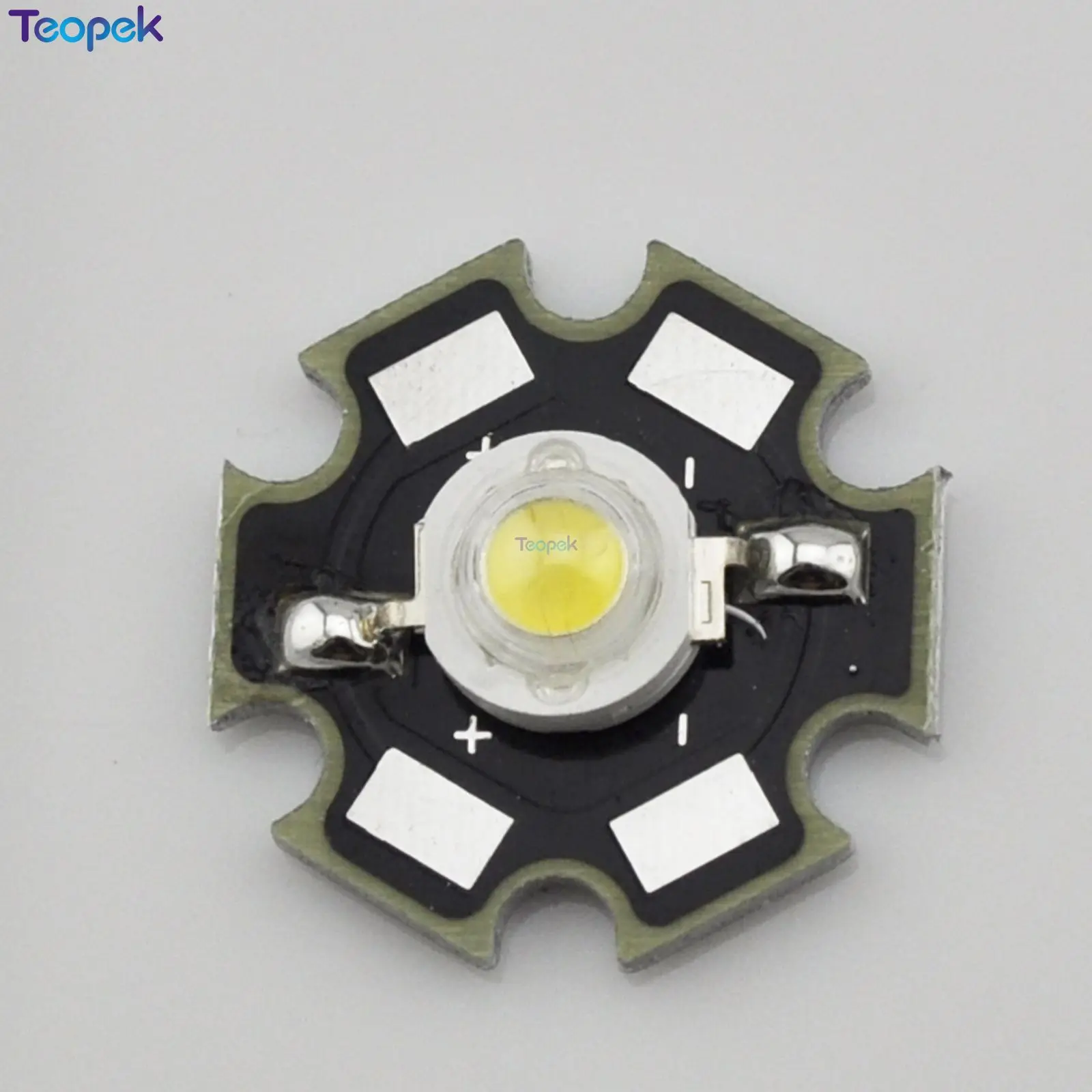

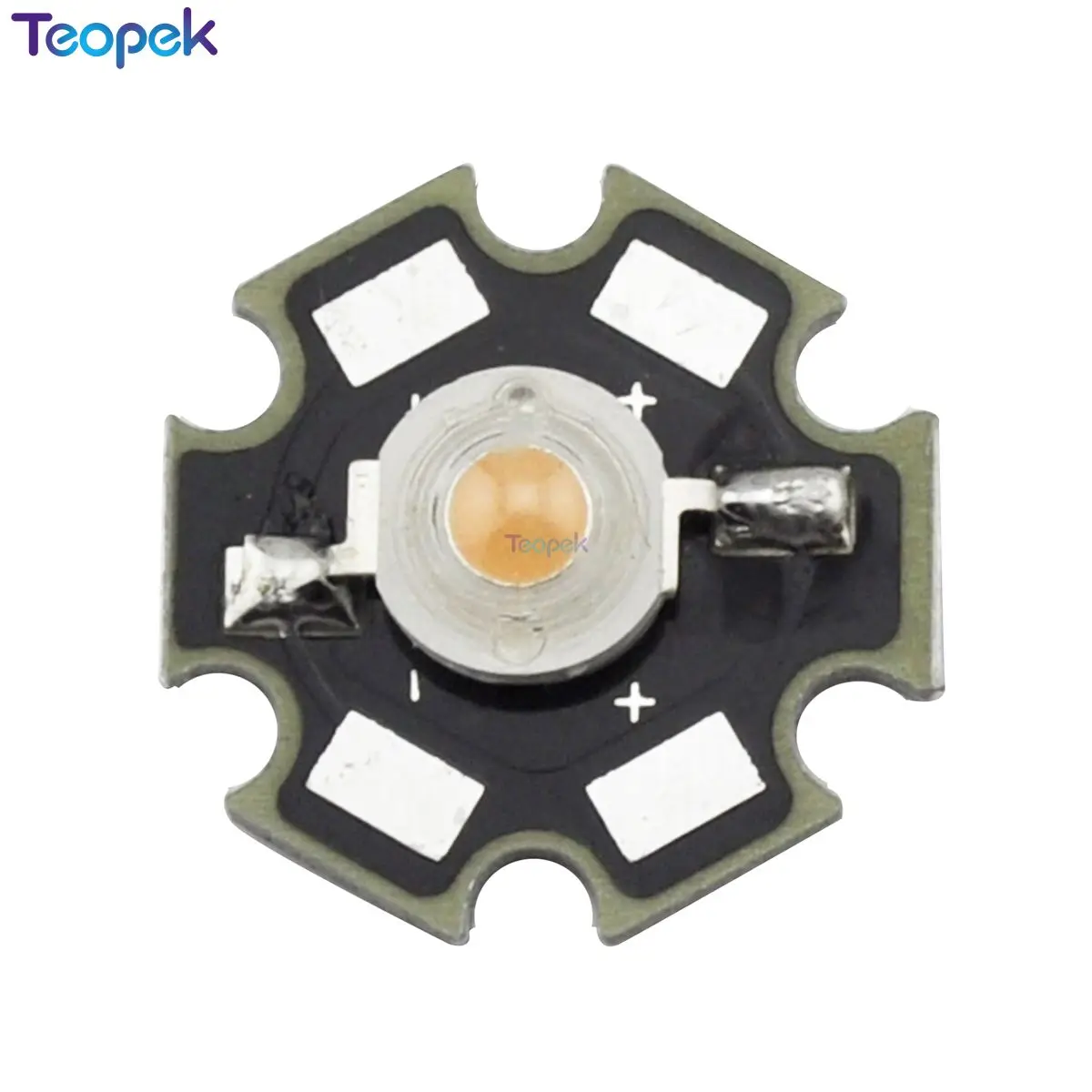

10PCS 3W High Power LED Chip light bead emitter Cool White Warm White Red Green Blue Pink Yellow RGB with 20MM Star PCB

10PCS 3W High Power LED Chip light bead emitter Cool White Warm White Red Green Blue Pink Yellow RGB with 20MM Star PCB

item picture







Specification:

White/Cold White/Warm White
LED Emitter: 1W / 3W
CCT: 25000K/ 20000K/ 12000K/ 6000-6500K/3000-3200K
Lumens: 100-110Lumens/ 1W     180-210Lm/3W
DC Forward Voltage (VF) : 3.2-3.6Vdc
DC Forward Currect (IF) : 350mA for 1W       700mA for 3W
Beam Angle: 115 degrees
Lens color: water clear
PCB board: Diameter star 20mm base
Resin (Mold): Silicone Resin
Certificate: CE&ROSH
LifeSpan Time : > 50,000 hours

Blue/ Green
LED Emitter: 1W/ 3W
Wavelength:460-465nm/520-525nm
Lumens: 40-60Lumens/ 1W    90-120Lm/ 3W
DC Forward Voltage (VF) : 3.2-3.6Vdc
DC Forward Currect (IF) : 350mA for 1W     700mA for 3W
Beam Angle: 115 degrees
Lens color: water clear
PCB board: Diameter star 20mm base
Resin (Mold): Silicone Resin
Certificate: CE&ROSH
LifeSpan Time : > 50,000 hours

Red/Yellow
LED Emitter: 1W/ 3W
Wavelength:620-625nm/585-590nm
Lumens: 30-60Lumens/ 1W    90-120Lm/ 3W
DC Forward Voltage (VF) : 2.0-2.6Vdc
DC Forward Currect (IF) : 350mA for 1W     700mA for 3W
Beam Angle: 115 degrees
Lens color: water clear
PCB board: Diameter star 20mm base
Resin (Mold): Silicone Resin
Certificate: CE&ROSH
LifeSpan Time : > 50,000 hours

RGB (4pin +, R,B,G)
LED Emitter: 3W
DC Forward Voltage (VF) :  Red 2.0-2.6V, Green: 3.0-3.6V. Blue: 3.0-3.6V
DC Forward Currect (IF) : 350mA for each color
Beam Angle: 115 degrees
Lens color: water clear
PCB board: Diameter star 20mm base
Resin (Mold): Silicone Resin
Certificate: CE&ROSH
LifeSpan Time : > 50,000 hours

Features:
High-power LED 3W maximum junction temperature of 200 high brightness, low thermal
resistance, in accordance with RoHS high temperature (70 , 70%), it can be a continuous
trouble-free work5000Hrs. High-power LED 1000Hrs. photodegradation less than 3%, the
normal life can up to 100,000 hours.

Applications:
High-power LED 1W 3W widely used in general illumination, contour LED lights, garden LED
lights, ceiling LED lights, decorative LED lights, architectural LED lighting, LED
street lamps and so on.

Package Include:
10 x 3W High Power LED Light with 20mm Base
