10pcs 3W 10W LED SMD 3535 6565 chip UV 365nm 395nm 385 405nm high power light bead Ceramic base Quartz glass lens free shipping

Product Description

Specifications:

1. Model Number:DRP-3W3535LG45UV395

DRP-3W3535LG45UV365

DRP-10W6565LG45UV365

DRP-10W6565LG45UV395

2. Product name: SMD 3535 LED CHIP

SMD 6565 LED CHIP

3. Shapes: Square

4. Power:3W, 10W

5. Forward Voltage:3W:3.3-3.8V

10W:6.0-8.0V

6. Forward Current: 3W:700mA

                               10W:1400mA

7. Luminous Flux:3W 3535 365-370nm :2-3lm

                            3W 3535 395-400nm: 15-25lm

                            3W 3535 385-390nm: 15-25lm

                            3W 3535 400-410nm: 15-25lm

                            10W 6565 365-370nm :12-20lm

                            10W 6565 385-390nm: 30-40lm

                             10W 6565 395-400nm: 30-40lm

                             10W 6565 400-410nm: 30-40lm

8. color-rendering index :70-80 Ra

10. Working Temperature:-20 centigrade to 60 centigrade

11. Gold Wire: Gold Wires

12. Wavelength: UV365-370nm

UV390-400nm

13. Substrate Material: Aluminium nitride Ceramic substrate

14. Life Span: 50,000 Hours

15.Quartz glass lens

16.Beam Angle:60°

Features:

1,Aluminum nitride ceramic substrate: inorganic integration, high thermal conductivity, high insulation, high temperature multi-layer sintered Aluminum nitride ceramic substrate.2. Welding process: high temperature bonding nano-silver slurry solidification process, ultra-low thermal resistance, some products using eutectic process solidification;3. Extra long life: Ultraviolet LED (Ultraviolet LED) service life is more than 10 times the traditional mercury lamp curing machine, energy saving 90%.And the service life is not affected by the number of switches.4. High efficiency and energy saving: the conversion rate of UV LED is up to 40%, the output of light is stable, the energy consumption is low, and the power consumption is only 10% of the traditional mercury lamp curing machine.5. Safety and environmental protection: UVLED (Ultraviolet LED) is driven by constant current and low pressure, does not contain mercury, does not produce ozone, does not pollute the environment, cold light source, no thermal radiation, low carbon environmental protection.It is a safer and environmentally friendly alternative to traditional light source technology.6. Zero-time start-up: UVLED (ultraviolet LED) does not need preheating, and instantly achieves 100% power ultraviolet light output.7. Maintenance cost is low, using UVLED curing equipment saves at least 10,000 yuan per unit of consumables per year on average.

Applications:

1. UV solidifying of wood and vinyl chloride, electronic equipment, automobiles, musical instruments and Fixtures

2. UV plays an important role in medical biochemistry, food and water treatment, stage translation, criminal detection and military aerospace.

3. UV LED curing technology is widely used in digital inkjet, screen, flexographic and flat-panel printing fields of ideal ink curing products.

4. UV curing applications include UV curing in electronic, industrial, medical, optical and many other fields.

Pictures

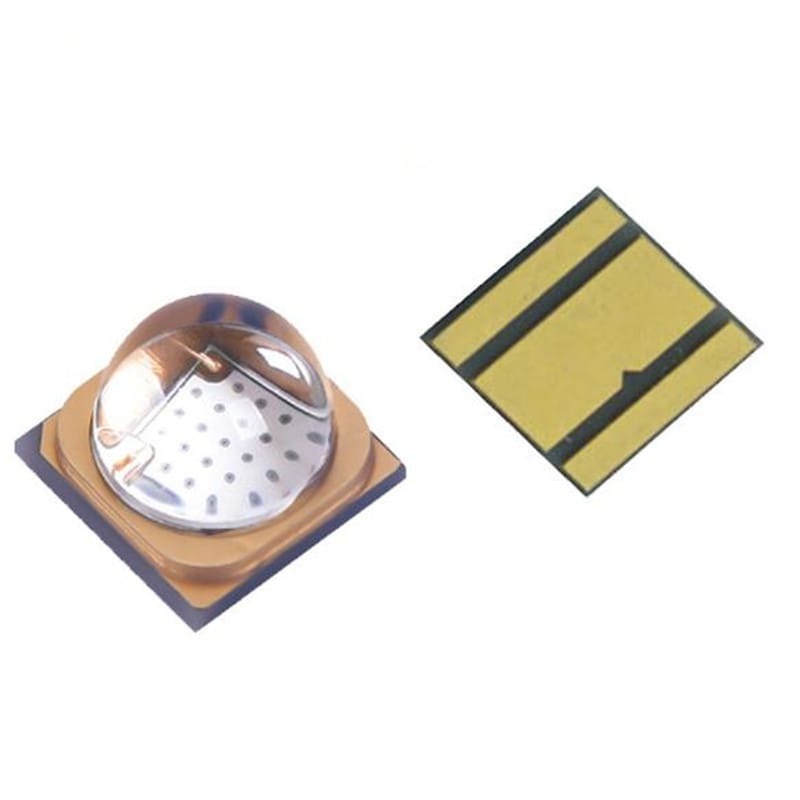

Picture of 3W SMD 3535

Picture of 10W SMD 6565

APPLICATION
