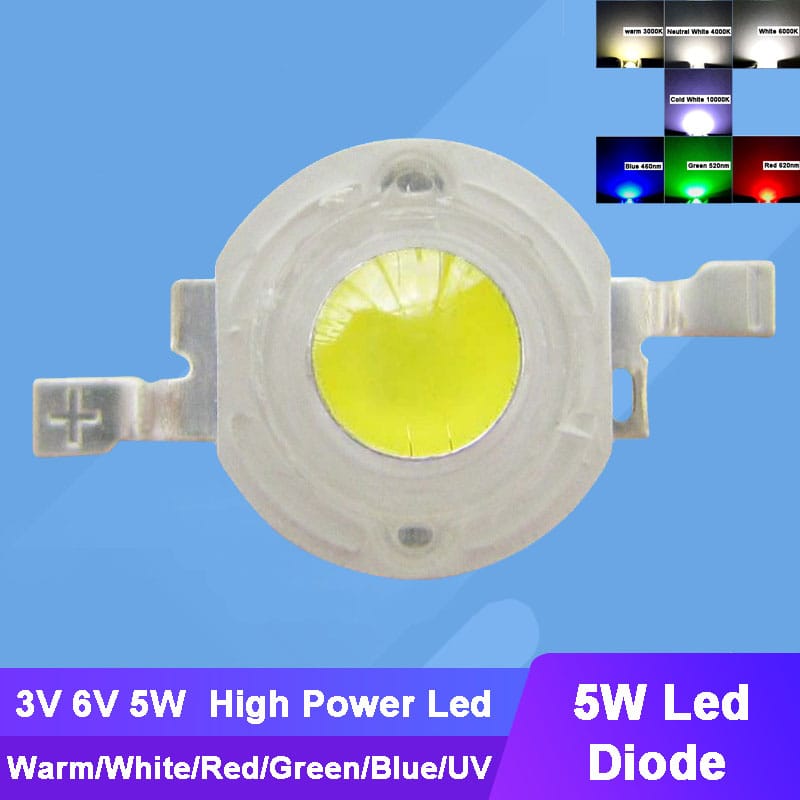

10pcs 3V 6V 5W White Warm UV Blue Green Red LED Diodes Light Lamp Part
10pcs 3V 6V 5W White Warm UV Blue Green Red LED Diodes Light Lamp Part

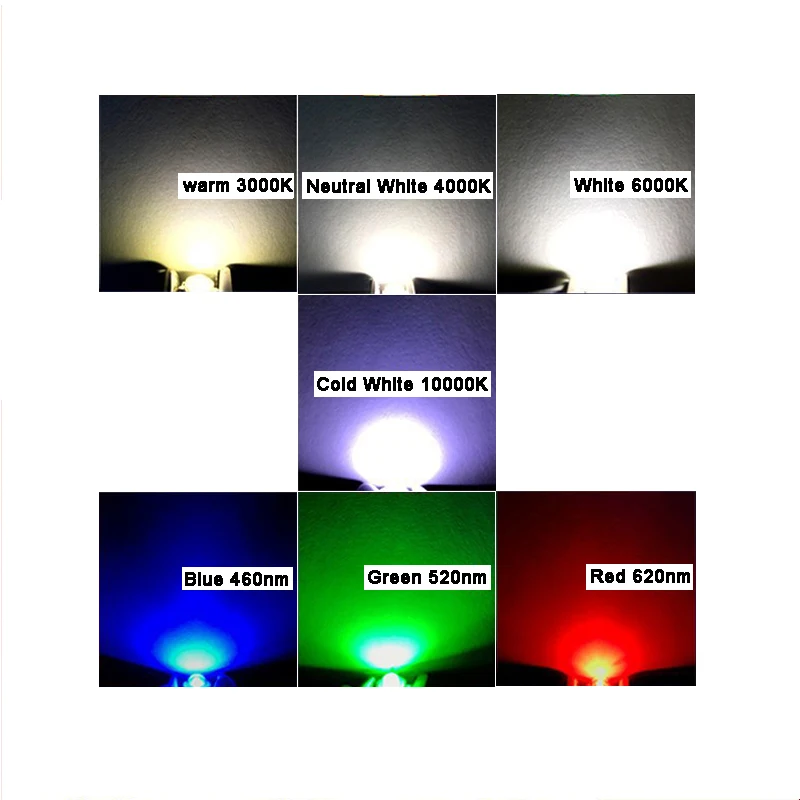

Color Temperature:
Warm White (3000K)
Neutral White (4000K)
White (6000K)----4W
Cold White (10000K)
UV (395nm)
Blue (460nm)
Green (520nm)
Red (620nm)
Current:700mA.
Attention:we advice input 700mA.pls use constant current driver.
Voltage and Wattage:
3-3.6V(red is 2-2.6V) / 5-7V(red is 4-6V).

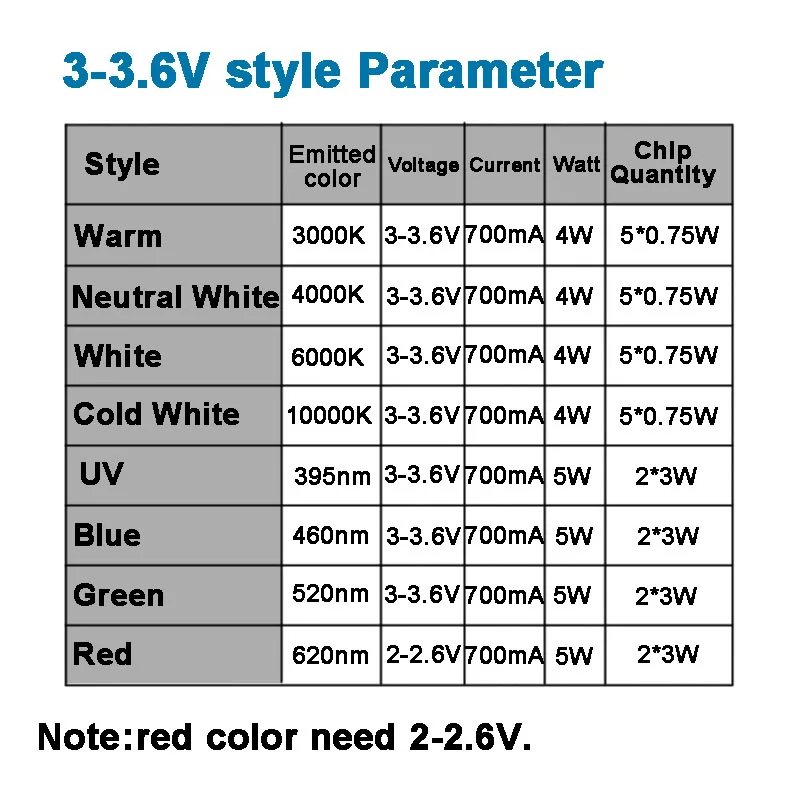

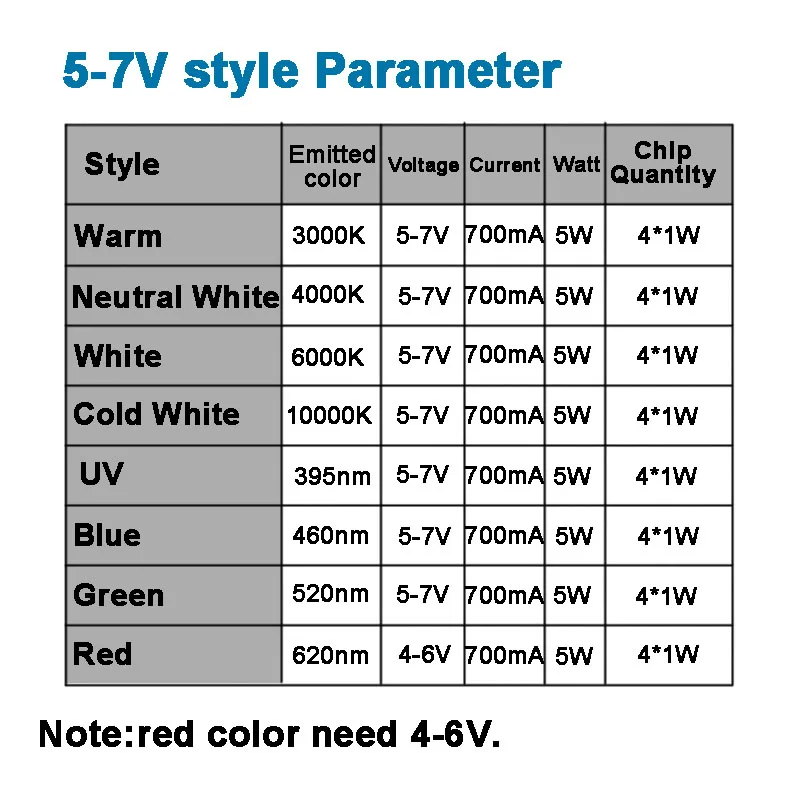

Pls refer to the 2 pictures,then select.
Feature
Viewing Angle: 120°
Working temperature: >-20° <+60°
Lead Soldering Temp:300°C for 2 seconds
Long lasting (over 100,000hours)
Attention:use the diode,pls aluminum heatsink.
,
