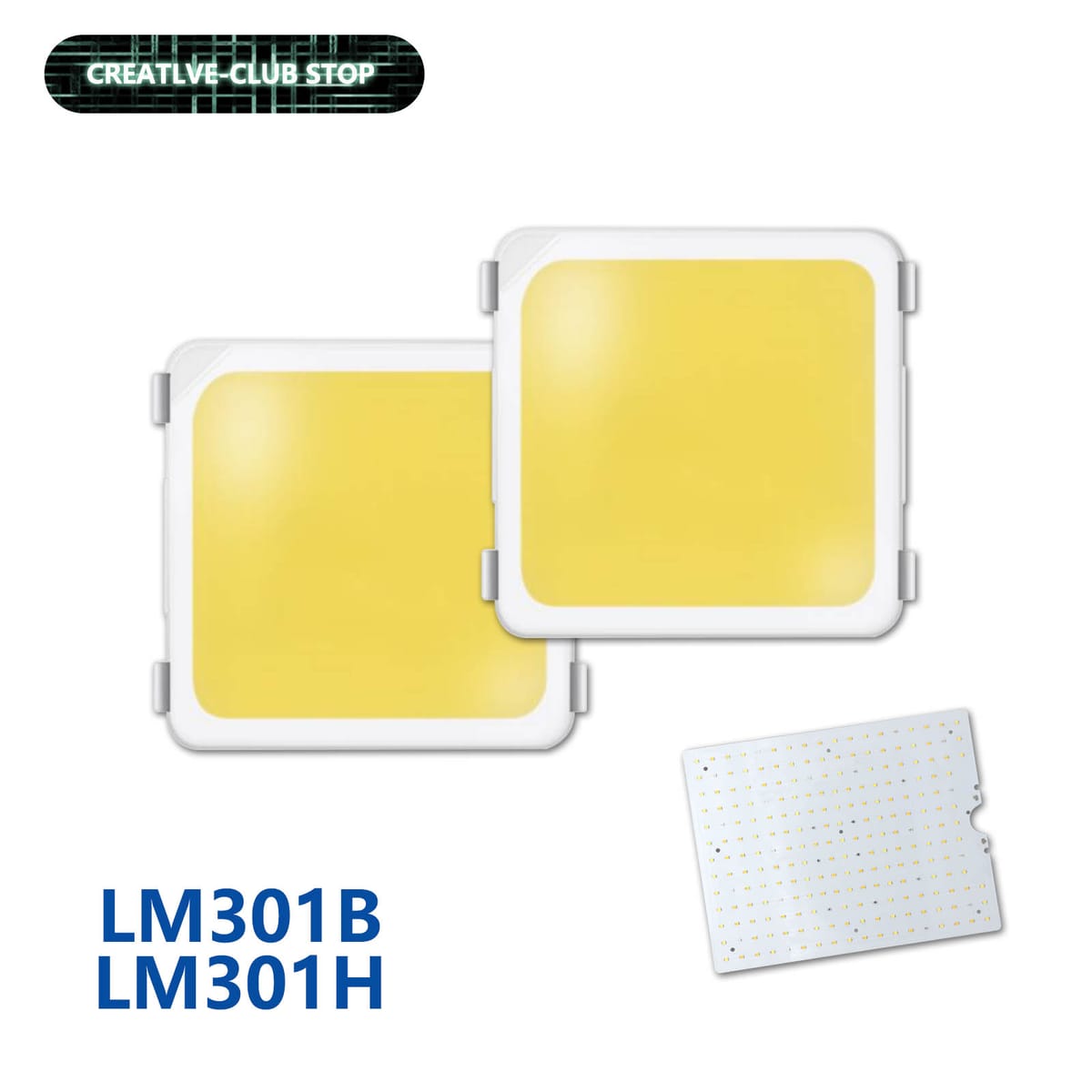

10pcs 0.5W 3V Led Light Beads Chips LM301H LM301B CRI80 3000K 4000K 5000K Medium Power for Quantum Board Plants Growing Lamp DIY

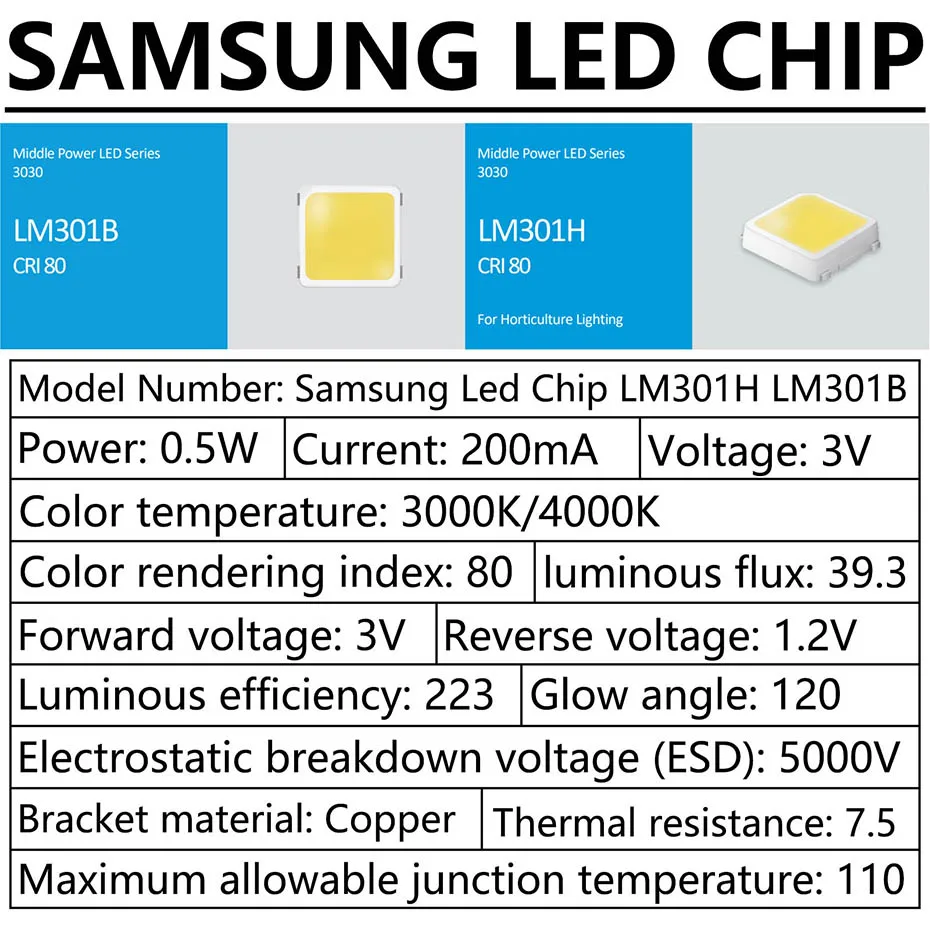

Product details
Current: 200mA
Voltage: 3V
Model Number: Samsung Led Chip LM301H LM301B
Item Type: BALL
Luminous efficiency: 223
Power: 0.5W
Color temperature interval: 2700-6500K
Model: LM301H LM301B-SJ/SK/SL
Color rendering index: 80
Rated current: 200mA
1000 hours conventional aging: 100
Forward voltage: 3V
Size specifications: 3030
Thermal resistance: 7.5
Wire material: Gold thread
6000 hours of regular aging: 98
Bracket material: Copper
Glow angle: 120
Maximum allowable junction temperature: 110
Electrostatic breakdown voltage (ESD): 5000V
Reverse voltage: 1.2V
Chip brand: San'an
luminous flux: 39.3

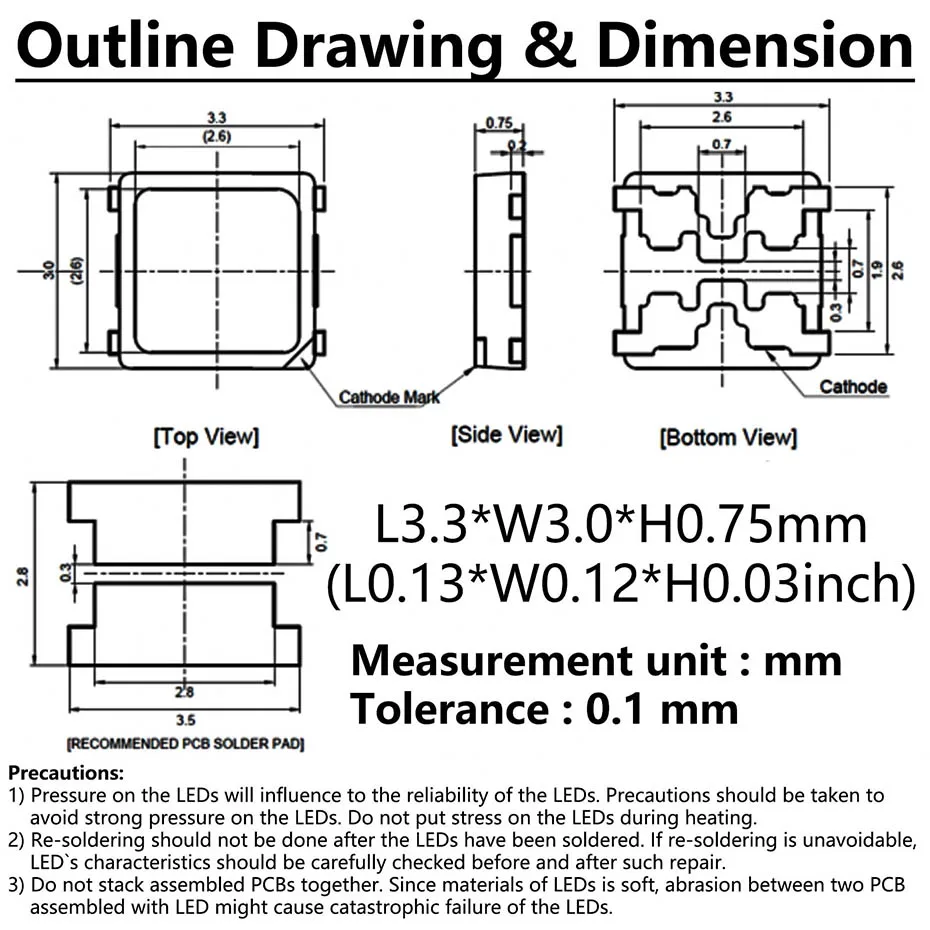

Precautions:
1) Pressure on the LEDs will influence to the reliability of the LEDs, Precautions should be taken toavoid strong pressure on the LEDs. Do not put stress on the LEDs during heating.
2) Re-soldering should not be done after the LEDs have been soldered. lf re-soldering is unavoidableLED's characteristics should be carefully checked before and after such repair.
3) Do not stack assembled PCBs together. Since materials of LEDs is soft, abrasion between two PCBassembled with LED might cause catastrophic failure of the LEDs.

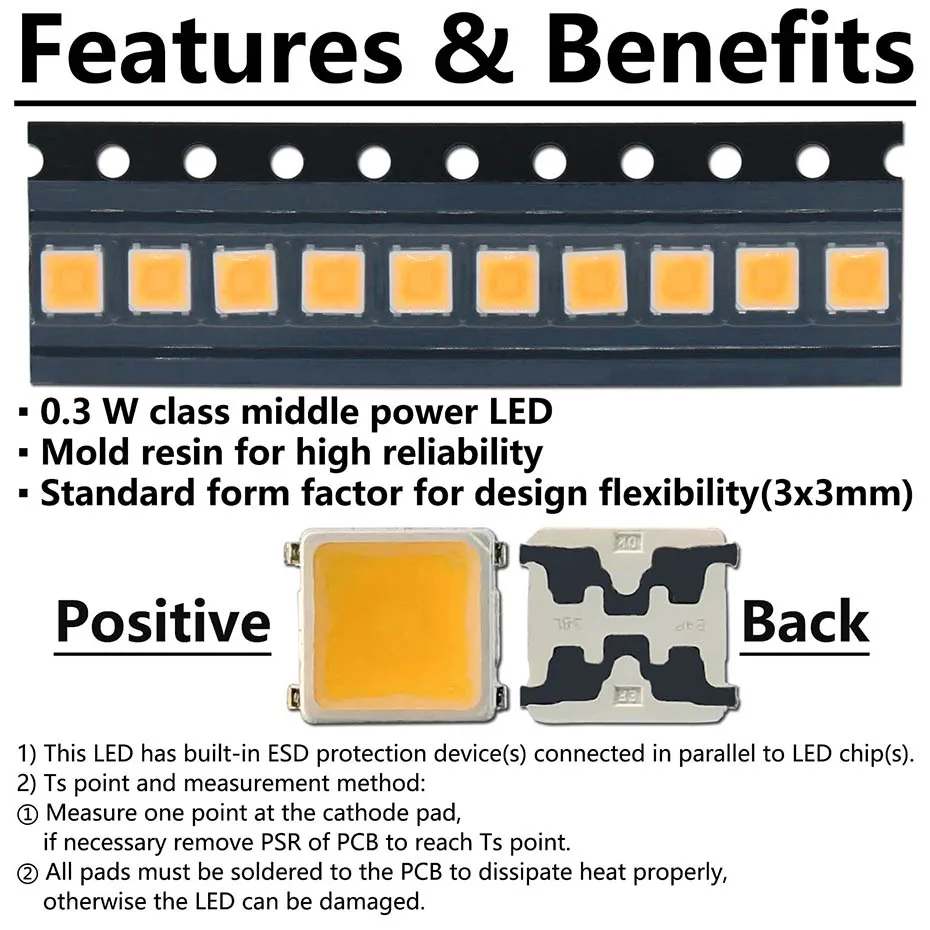

Features & Benefits
0.3 W class middle power LED
Mold resin for high reliability
Standard form factor for design flexibility(3x3mm)
1) This LED has built-in ESD protection device(s) connected in parallel to LED chip(s)
2) Ts point and measurement method:
1.Measure one point at the cathode padif necessary remove PSR of PCB to reach Ts point.
2.All pads must be soldered to the PCB to dissipate heat properly.otherwise the LED can be damaged.
,
