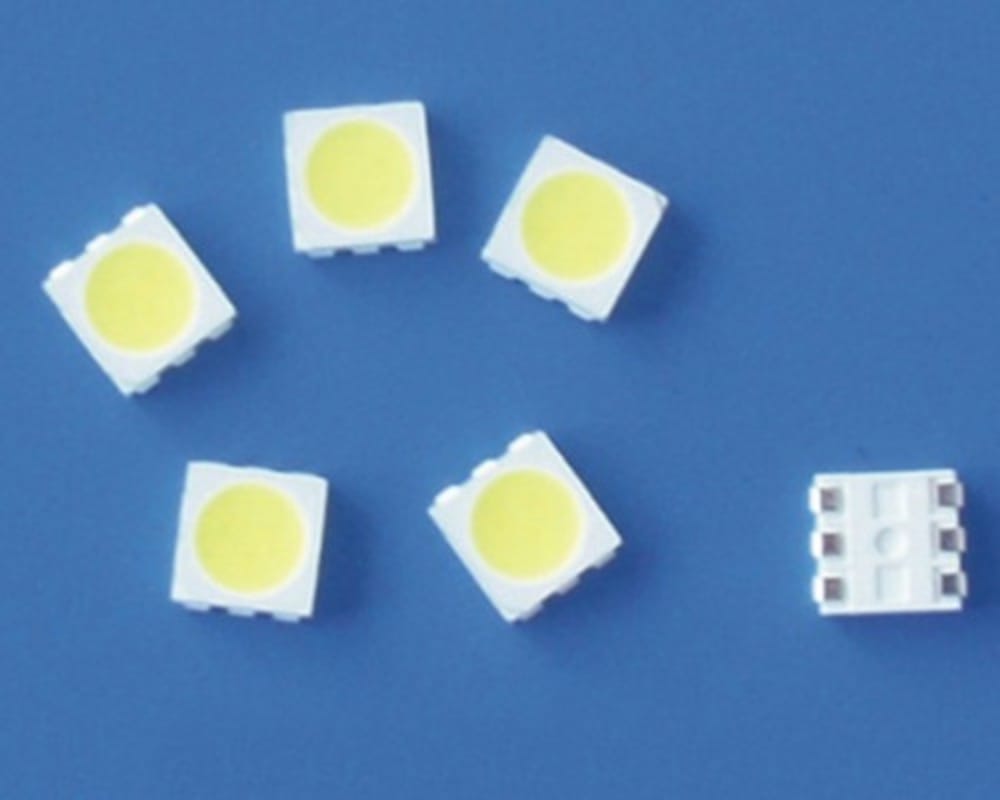

100pcs SMD 5050 Chip LED RGB/Red/ Blue/ Green/yellow/Pink/white/warm white LED Light Emitting Diode Lamp PCB SMT Beads
5050Product Specifications
Product Name: 5050 LED BlueColor: (460-465)Luminous flux :1000-1500MCD
Forward Current: 60MA
Forward Voltage :3.2-3 .4 V Product Name: 5050 LED RedColor: (620-625)Luminous flux :400-500MCD
Forward Current: 60MA
Forward Voltage :1.8-2 .4 V
Product Name: 5050 LED Green
Color: (510-525)
Luminous flux :1500-2000MCD
Forward Current: 60MA
Forward Voltage :3.2-3 .4 V Product Name: 5050 LED YellowColor: (588-592)Luminous flux :1000-1500MCD
Forward Current: 60MA
Forward Voltage :1.8-2 .4 V Product Name: 5050 LED pinkLuminous flux :800-1000MCD
Forward Current: 60MA
Forward Voltage :3.2-3 .4 V
Photoelectricity Parameter Ambient temperature : 25 humidity: RH60%
Item | Symbol | Test condition | Min | Type | Max | Unit | |
Forward voltage | VF | IF=60mA | 3.0 | 3.3 | 3.6 | V | |
Reverse current | IR | VR=5V | -- | -- | 10 | μA | |
Luminous intensity | IV | IF=60mA | 20 | 21 | 23 | lm | |
Color coordinate | X | IF=60mA | 0.310 | 0.320 | 0.330 | --- | |
Y | IF=60mA | 0.320 | 0.333 | 0.350 | |||
Color temperature | Tc | IF=60mA | 6000 | 6200 | 6500 | K | |
Viewing Angle | 2θ1/2 | IF=60mA | -- | 120 | -- | deg | |
Color Rendering Index | Ra | IF=60mA | 80 | 82 | 85 | --- | |
Remark : The tolerance of intensity:±15%, The tolerance of coordinate:±0.005,The tolerance of forwards voltage: ±0.05V. Only reference for above data when testing. Please use the following methods to comply with the protection of SMD LED products
1 countermeasure
Static electricity and high volt can damage led,The production whose Die material is Green and blue must strictly required to prevent ESD,Must put on static glove and static fillet,Soldering tool and the cover of device must connect the
ground,soldering condition follows the related stating of production specification manual.
2 Protecting countermeasure when over current
Need add the protecting resistor in circuit in order to avoid damaging led due to big current and voltage fluctuation.
3 Manual soldering
The tip temperature of soldering iron don't exceed 300C soldering time don't exceed 3s.
4 Soldering temperature curve chart(figure A.figure B)
Must avoid any strike and force on led before the soldering temperature return to room temperature.
,
