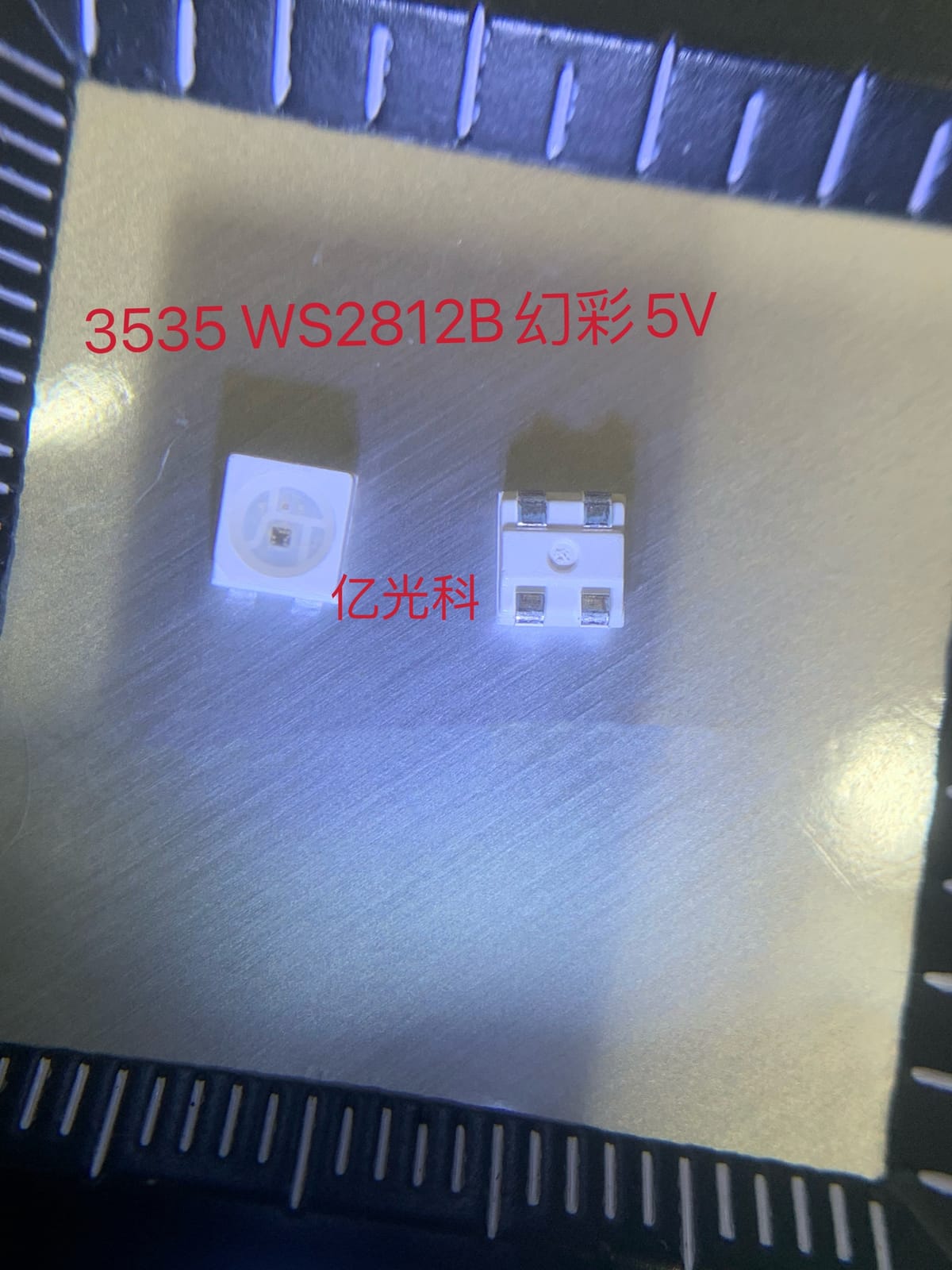

100PCS SK6812 WS2812B IC Bulit in 3535 RGB SMD Addressable Digital RGB Full Color LED Chip Pixels Light Bead DC5V
Specification:
1.Document No.: SK6812-SMD-RGB LED chip
2.IC type：SK6812
3.LED type:3535 SMD
4.PCB color: white
5.color:RGB full color 24bit,256 gray scale
6.size:5.4*5.0*1.6mm
7.power:0.24W
8.Llifespan:50000h
9.input voltage:DC5V
10.viewing angle:120 degree
11.Current: 20ma per color, 60mA total at full brightness
12. Color/Wave :WWA (Warm white 2700-3000K/ Cool white 6000-6500K/ Amber 1800-2000K), RGB (R 620-630nm/G 515-525nm/B 460-470nm), RGBW (R 620-630nm/G 515-525nm/B 460-470nm/WW 2700-3000K/ CW 6000-6500K)
13. Driver method: Constant current circuit
14.Certification: CE and RoHS
15.Operation temperature: -40-50
16.Store temperature: -50-60

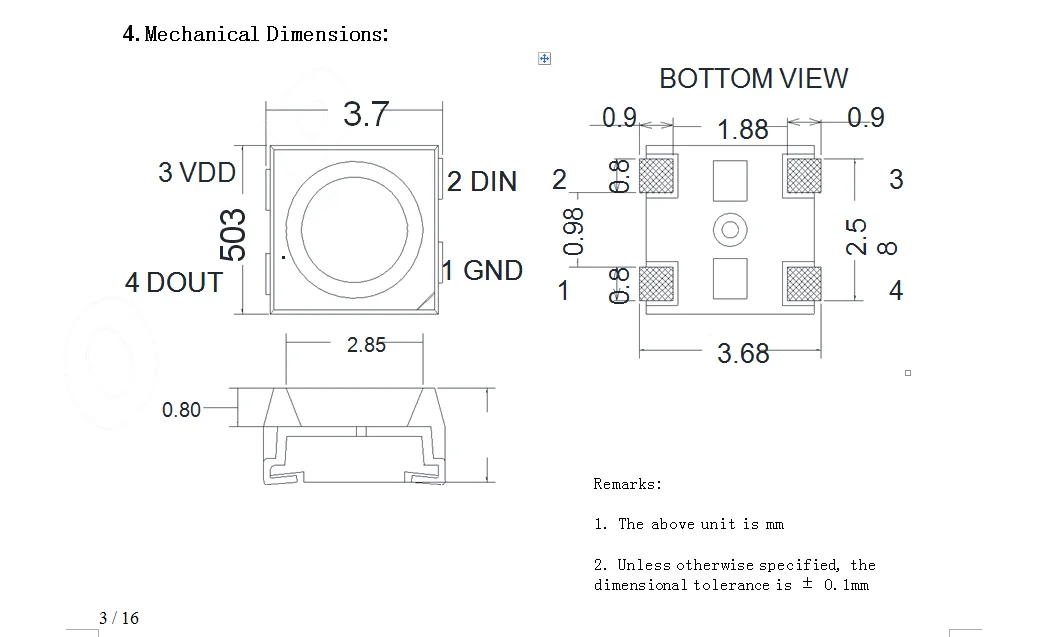

SMD3535 size: 3.5*3.5mm(Mini)
SMD5050 size: 5.0*5.0mm
Features:
1. SK6812MINI is a set of control circuit and lighting circuit in one of the smart external control LED Light.
2. Pixels contained within an intelligent digital interface data latch signal shaping amplifier drive circuit
3. Power regulator circuit, built-in constant current circuit, high precision RC oscillator, the output driven by professionals
Lee PWM technology to effectively guarantee the color of light within pixels high consistency.

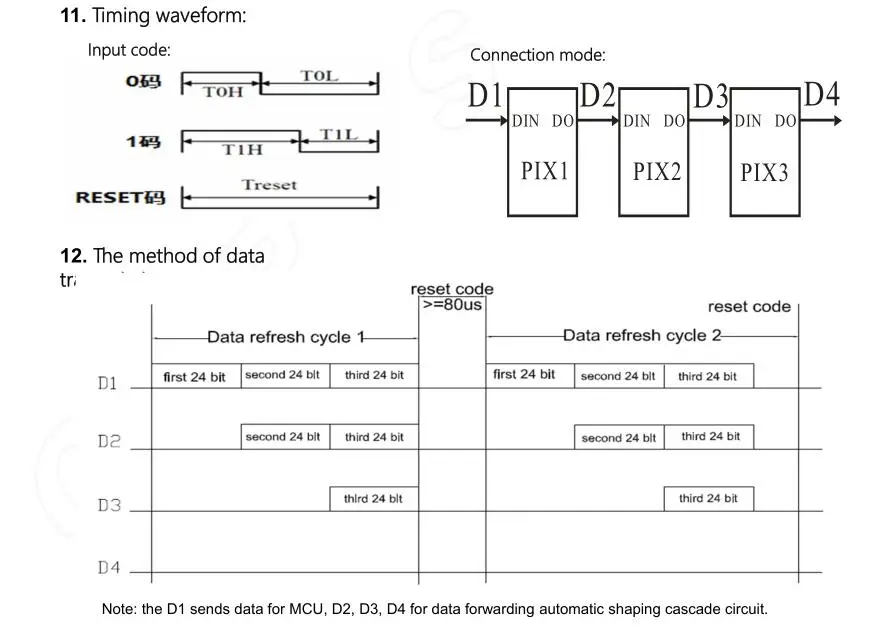

4. NRZ data protocol of communication, the pixels on the POR,

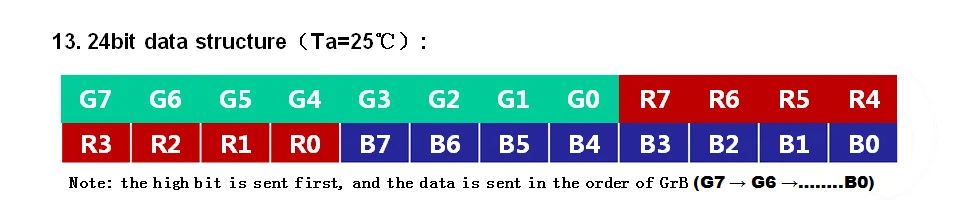

DIN terminal receiving the data transmitted from the controller, the first 24bit data is sent over the first
product description:
1. Through the internal plastic processing circuit shaping amplified output through DO port forwarding to the next start Cascade pixels, each pixel through the transmission of a signal to reduce 24bit.
2. Automatic shaping forwarding technology, so the number of cascade is not limited to the pixel signal transmission
System, only limited by the signal transmission speed requirements
3. Top SMD integrated high-wire serial cascade constant external control IC; control circuit chip in SMD 3535 RGB components constituting a complete
4. The whole of the external control pixel, blending effect uniform and high consistency.
5. Built-in data shaping circuit, any one pixel after receiving the signal through the waveform shaping again Output, to ensure line waveform distortion will not accumulate.
6. Built-in power-on reset and brown-out reset circuit, a power does not turn; gamma adjustment circuit (256 gray adjustable)
7. Red drive special treatment, color and more balanced, line data transmission, unlimited cascade. shaping forwarding enhancement technology, transmission distance between two points more than 10M.

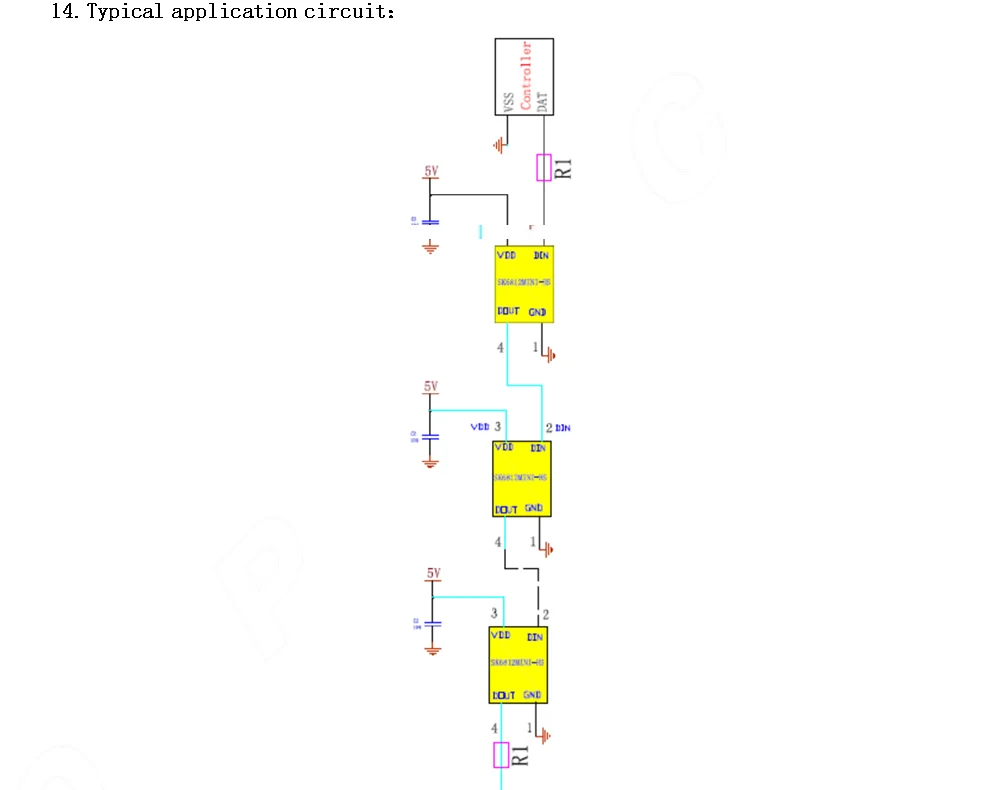

8. Data transfer rates up to 800Kbps, when the refresh rate of 30 frames / sec, Regulators need a current limiting resistor in series on an external power source, so as not to damage the reverse power IC.
Product advantages:
1. the high consistency of pixels in color.
2. Low driving voltage
3. environmental protection
4. energy saving
5. high brightness
6. scattering angle
7. good consistency
8. low power consumption
9. long life, the circuit is simple, small size, easy to install.
Applications:
1) Lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path and contour marking; etc.
2) They can be a good choice for advertising, Led screen, night clubs, coffee / wine bars, shopping malls, various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.
Package included:
50-1000pcs DC5V SK6812 RGB full color LED chip
,
