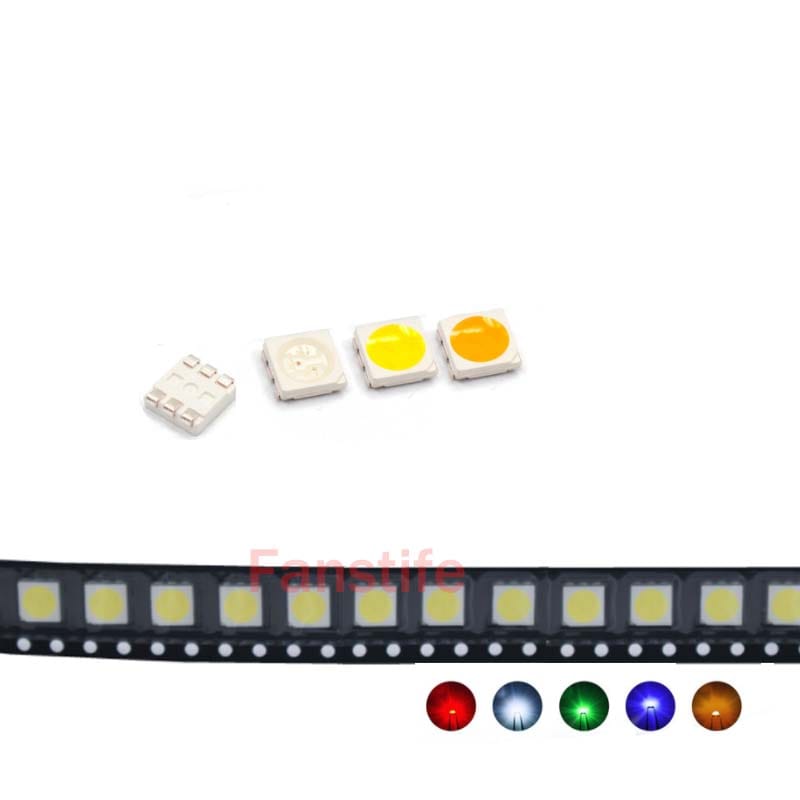

100pcs/lot LED5050 SMD Lamp Beads 0.2W Light-emitting Diode Light Source 5050 White Green Red Yellow Pink Orange Ice Blue RGB
Product model: 5050
Voltage: 3.0-3.6V
Current: 60MA
Color: white (color temperature: 6000-7000K), warm white (color temperature: 2800-3500K)

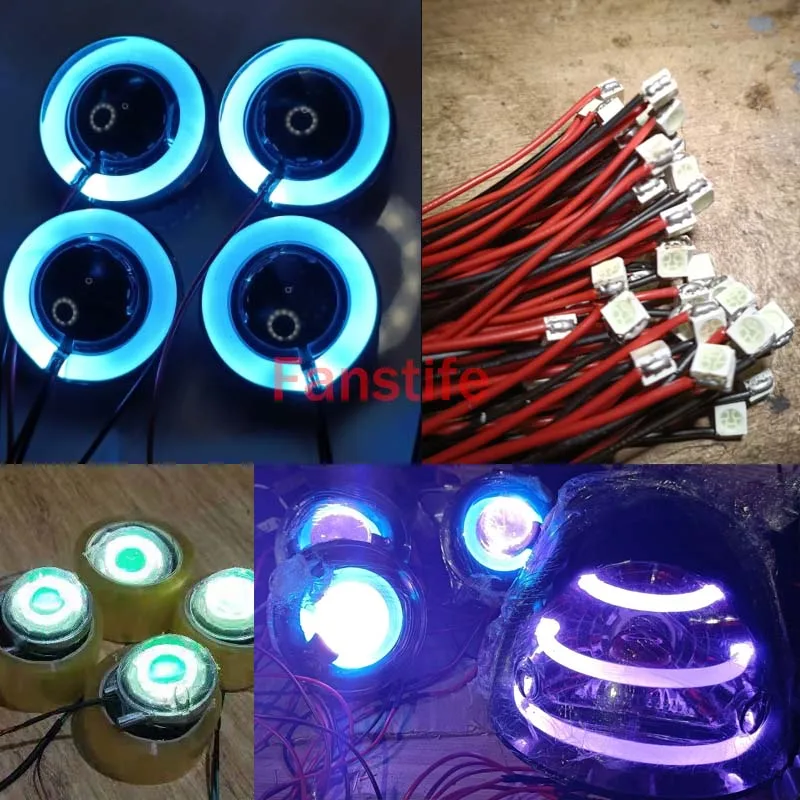

Range of application: bulb lamp/corn lamp/fluorescent lamp/candle lamp/line lamp/panel lamp/hard light bar, soft light bar and modules, LED spotlights, LED portable lamps, etc.
Features:
1. Imported chips; features: high brightness, low attenuation, low energy consumption, long life. Strong antistatic ability. The products are all packaged with silica gel, which meets the requirements of environmentally friendly lead-free process products.
2. High brightness, good light color consistency;
3. LED patch life: "50,000 hours;
Remark:
a) The number of welding of materials shall not exceed 2 times.
b) Please don't press the LED light heavily when soldering.
c) Do not twist the circuit board when the temperature has not returned to normal temperature after soldering.
Manual welding specification:
During manual soldering, the temperature of the soldering iron should not be higher than 300℃, and the soldering time for each foot should not exceed 3 seconds
,
