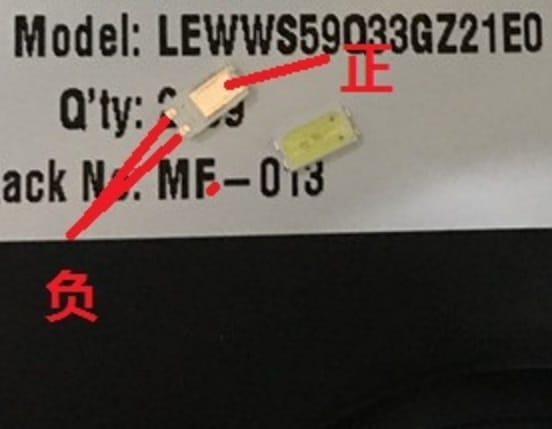

100PCS/Lot LED LCD TV display backlight beads 0.5W 3V 5630 lamp beads cool white light dual chip
Product model]: RS59P 5630 LED lamp beads [Brand]: [Product BIN]: [Packing method]: reel braiding, anti-static vacuum bag, original imported, unopened (3000PCS) disk [Forward Current Forward Current] (IF): 160mA [Forward current pulse Pulse Forward Curren"t1 】(IFp): 210mA [Reverse current allowed Reverse Current] (IR): 25mA [Reverse Voltage Reverse Voltage] (VR): V [Power Dissipation] (PD): 0.536W [Operating temperature Operatin Tgemperature] (Topr): -30~ +85 °C [Storage Temperature Storage Temperature] (Tstg): -40 ~ +100 °C [Welding Temperature Soldering Temperature] (Tsld): Reflow soldering at 260 ° C for 10 seconds / manual soldering at 350 ° C for 3 seconds [Chip Temperature Junctio Tnemperature] (Tj): 110 ° C [Forward Voltage Forward Voltage] (VF): 2.95-3.35V (110mA) [Brightness] (Iv): 21.9-24.1LM (110mA) [Band] (nm): -nm (mA) [Color Area]: Cool white light x= , y=(110mA) [Color Temperature] (CCT): K [product characteristics]: excellent heat dissipation performance [Dimensions]: 5.6 × 3.0 × 0.9 mm (L × W × H), luminous surface d = 4.6mm
,
