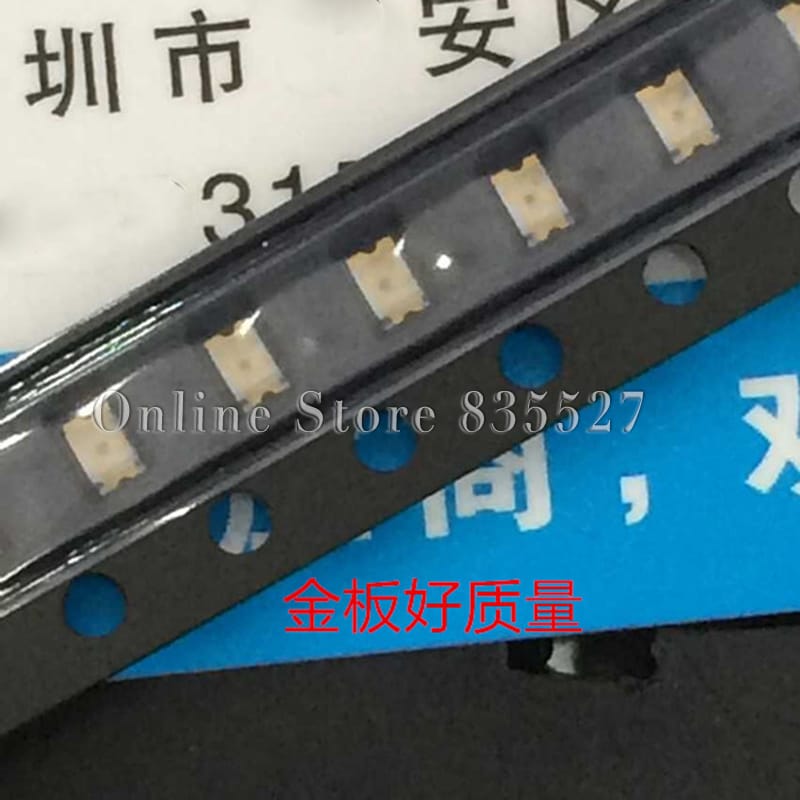

100PCS/LOT 2012 0805 gold plate red SMD lamp beads bright LED light emitting diode leds highlight Indicator light
This shop franchise IC LED diode / transistor / capacitor / resistance and other electronic components, a wide range of products, can not be recorded, please consult the owner!! You only need give list for the parts, then I will offer the best price to you.
1. features:· glow color: Red· core material: Red· 2.0mm x 1.25mm * 1.1 mm LED· has high light intensity, low power consumption, high reliability and long service lifeL complies with EU Directive on RoHS2. uses:Mobile phones, LCD backlight, automotive instrument lighting, and surface mount electronic products.3. limit parameter (TA=25 DEG C):
| parameter | minimum value | Maximum value | unit |
| 正向电流 IF |
| 25 | mA |
| 正向脉冲电流 IFP* |
| 100 | mA |
| 反向电压 VR |
| 5 | V |
| 工作温度 TOPR | -30 | +85 | ℃ |
| 贮存温度 TSTG | -40 | +85 | ℃ |
| 功 耗 PD |
| 100 | mW |
* Note: pulse width 0.1ms, duty cycle 1/10.
4. photoelectric parameters (TA=25 DEG C):
| Parameter name | condition | unit | minimum value | Typical value | Maximum value | |
| 正向电压VF | IF=20mA | V | 1.8 | 2.0 | 2.4 | |
| 反向电流IR | VR=5V | μA |
|
| 50 | |
| 波段 | IF=20mA |
| 615 | 620 | 630 | |
|
| 615 | 620 | 630 | |||
| 光 强IV | IF=20mA | mcd |
| 150 |
| |
,
