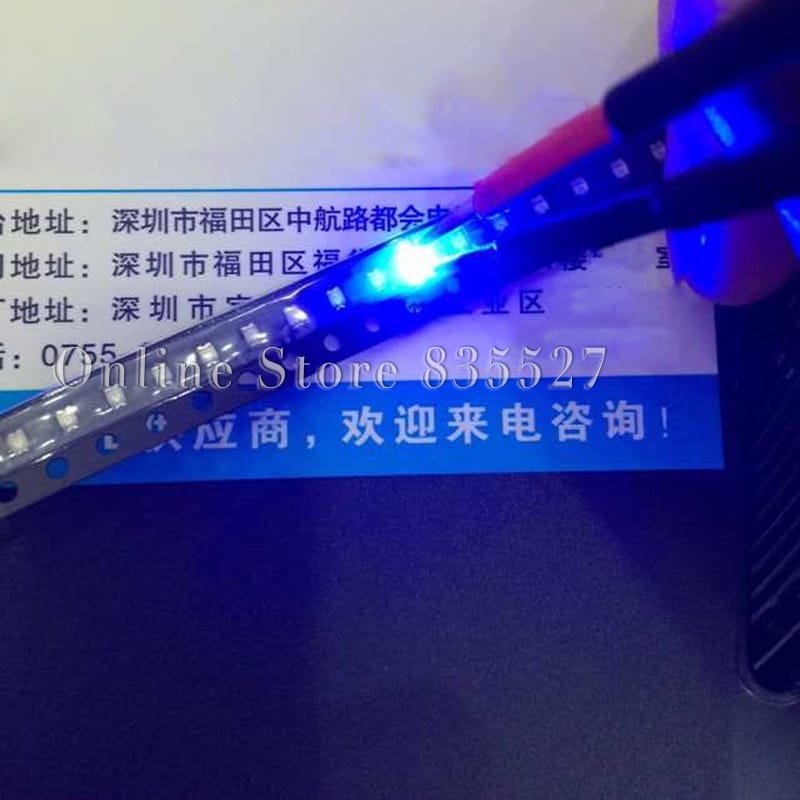

100PCS/LOT 2012 0805 blue 120-150mcd SMD lamp beads bright LED light emitting diode leds highlight Indicator light
This shop franchise IC LED diode / transistor / capacitor / resistance and other electronic components, a wide range of products, can not be recorded, please consult the owner!! You only need give list for the parts, then I will offer the best price to you.
I. features:· emitting color: Blue· core material: Blue· 2.0mm x 1.2 mm * 1.1 mm LED· has high light intensity, low power consumption, high reliability and long service life· complies with EU Directive on RoHS2. use:Mobile phones, LCD backlight, automotive instrument lighting, and surface mount electronic products.3. limit parameter (TA=25 DEG C):：
| parameter | minimum value |
| unit | ||
| 正向电流 IF |
| 25 | mA | ||
| 正向脉冲电流 IFP* |
| 100 | mA | ||
| 反向电压 VR |
| 5 | V | ||
| 工作温度 TOPR | -30 | +85 | ℃ | ||
| 贮存温度 TSTG | -40 | +85 | ℃ | ||
| 功 耗 PD |
| 120 | mW |
* Note: pulse width 0.1ms, duty cycle 1/10.
3. photoelectric parameters (TA=25 DEG C):
| Parameter name | condition | unit | minimum value | Typical value | Maximum value | |
| 正向电压VF | IF=20mA | V |
| 3.2 | 4.0 | |
| 反向电流IR | VR=5V | μA |
|
| 50 | |
| 波段 | IF=20mA |
| 460 |
|
| |
|
|
|
| 470 | |||
| 光 强IV | IF=20mA | mcd | 100 | 120 | 150 | |
,
