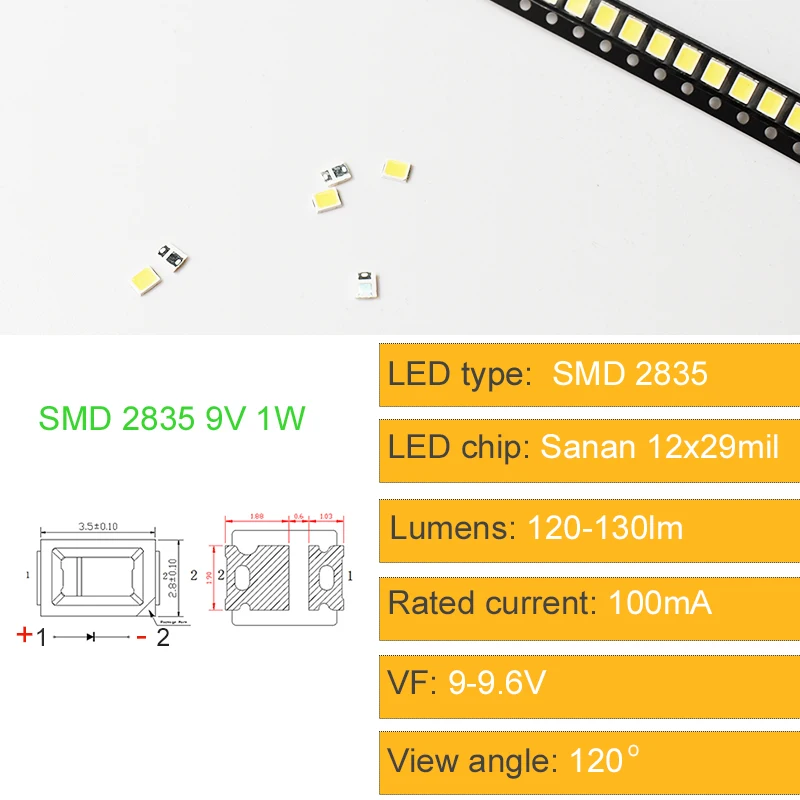

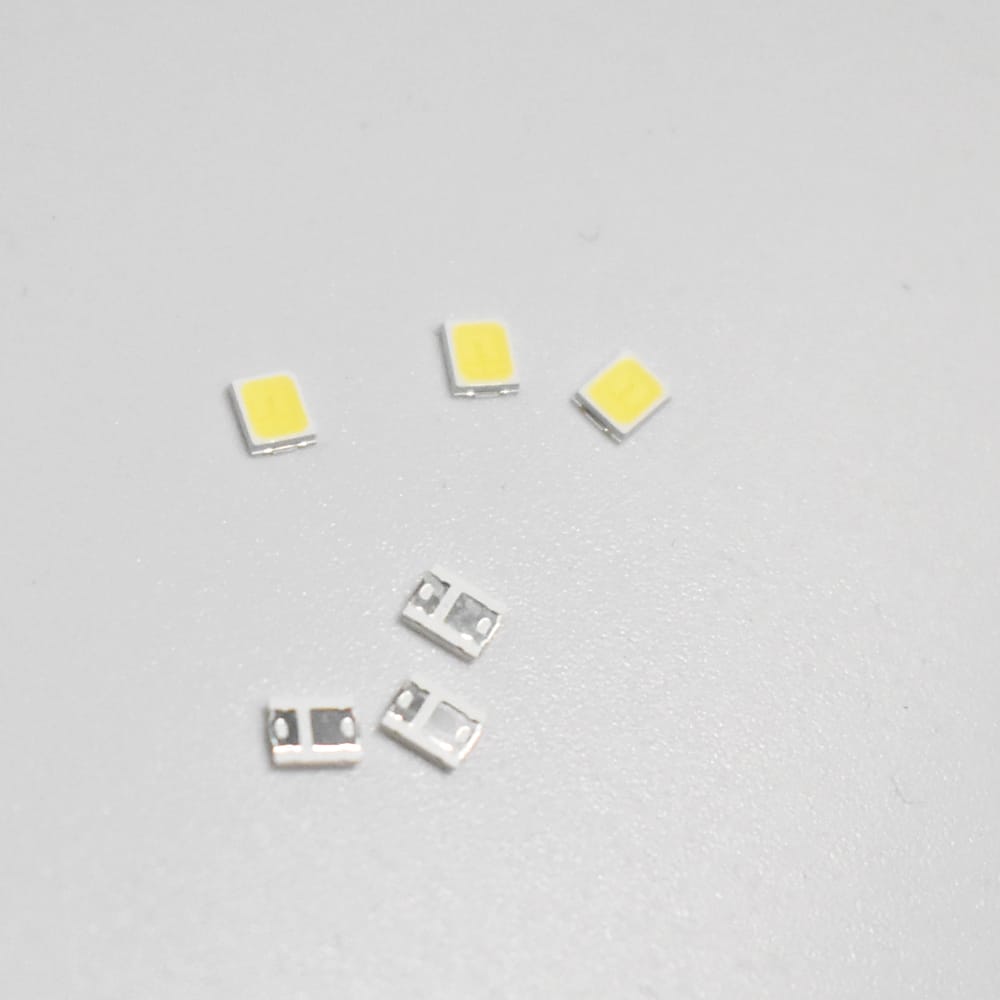

100PCS 2835 SMD Chips 1W 9V 100mA Beads LED 1.5W 150mA Super Bright Warm Nature Cold Color for Outdoor Indoor Lighting

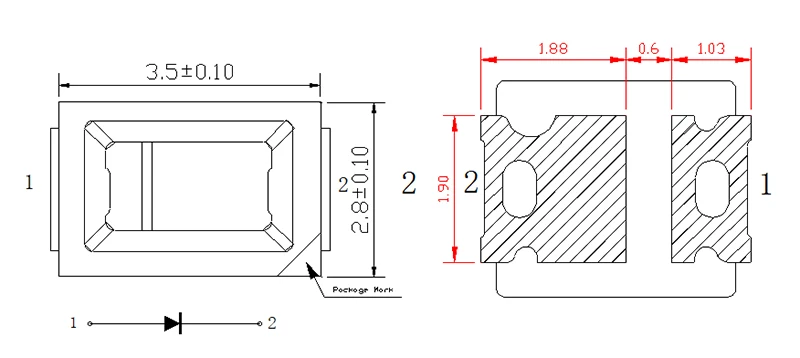

LEDs type:　SMD 2835LED chip:  Sanan 12x29milExternal Dimensions: 2.8x3.5mmBeam angle:   120 degreeLuminous efficiency:   120-130lm / watt (4000K)Forward Voltage: 9V-9.6VIF: 150mA / 100mACRI:    80RaViewing angle: 120 degreeHolder material:    BrassColor tolerance:   ＜5（SDCN）Thermal Resistance: ＜2.5 °C / WLED junction temperature:    90~120°Work temperature: -40ºC To +85ºCStorage Temperature: -40ºCTo+85ºCSoldering Temperature: Reflow Soldering 260ºC for 10 secondsHand Soldering: 300ºC for 3 secondsCautions:

1) Soldering Conditions : Number of reflow process shall be less than
2 times and cooling process to normal temperature is required between first and
Second soldering process.

2) Static Electricity:

It is recommended that a wrist band or an anti-electrostatic glove be used when handling the LEDs.

All devices, equipment and machinery must be properly grounded.

Damaged LEDs will show some unusual characteristics such as the forward voltage becomes lower, or the LEDs do not light at the low current. Criteria : (VF> 2.0VatIF=0.5mA).

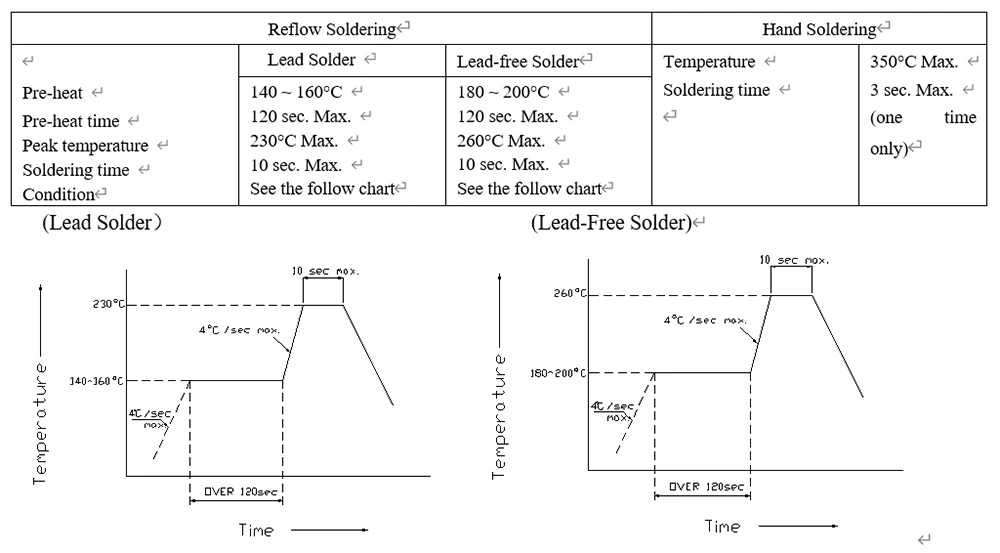

3) Recommended soldering conditions

,
