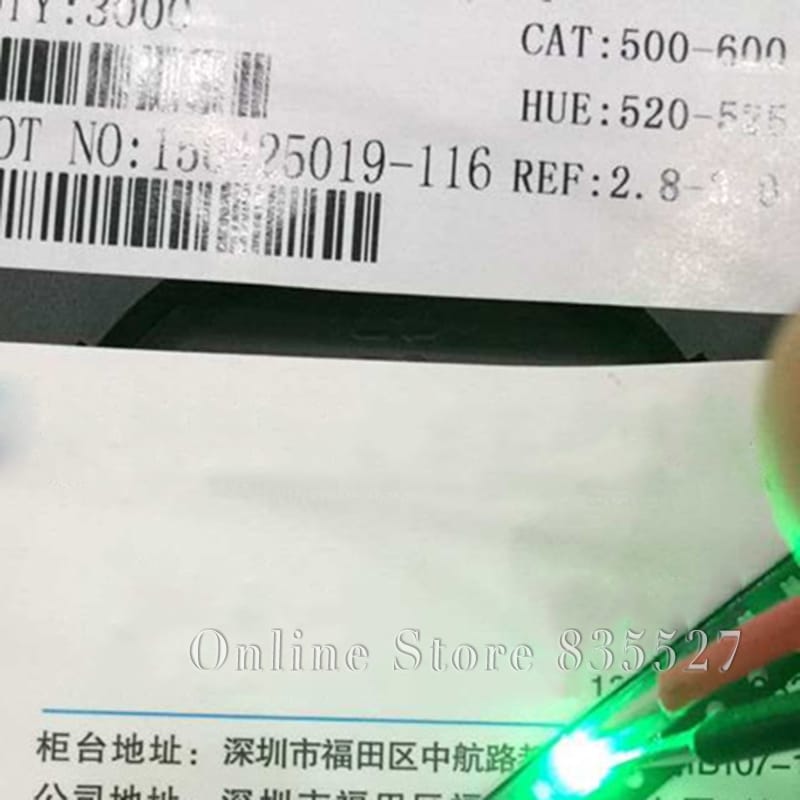

1000PCS/LOT 2012 0805 emerald green SMD lamp beads bright LED light emitting diode leds highlight
This shop franchise IC LED diode / transistor / capacitor / resistance and other electronic components, a wide range of products, can not be recorded, please consult the owner!! You only need give list for the parts, then I will offer the best price to you.
·Core material: Green·Colorless transparent package·2.0mm * 1.2 mm * 1.1 mm LED·It has high light intensity, low power consumption, high reliability and long service life·Compliance with EU directive RoHS1. uses:Mobile phones, LCD backlight, automotive instrument lighting, and surface mount electronic products.2. limit parameter (TA=25 DEG C):
| parameter | minimum value | Maximum value | unit |
| 正向电流 IF |
| 25 | mA |
| 正向脉冲电流 IFP* |
| 100 | mA |
| 反向电压 VR |
| 5 | V |
| 工作温度 TOPR | -30 | +85 | ℃ |
| 贮存温度 TSTG | -40 | +85 | ℃ |
| 功 耗 PD |
| 120 | mW |
* Note: pulse width 0.1ms, duty cycle 1/10.3. photoelectric parameters (TA=25 DEG C):
| Parameter name | condition | unit | minimum value | Typical value | Maximum value |
| 正向电压VF | IF=20mA | V |
| 3.3 | 4.0 |
| 反向电流IR | VR=5V | μA |
|
| 50 |
| 主波长λD | IF=20mA | nm |
| 520 |
|
| 半波宽度△λ | IF=20mA | nm |
| 30 |
|
| 光 强IV | IF=20mA | mcd |
| 400 |
|
,
