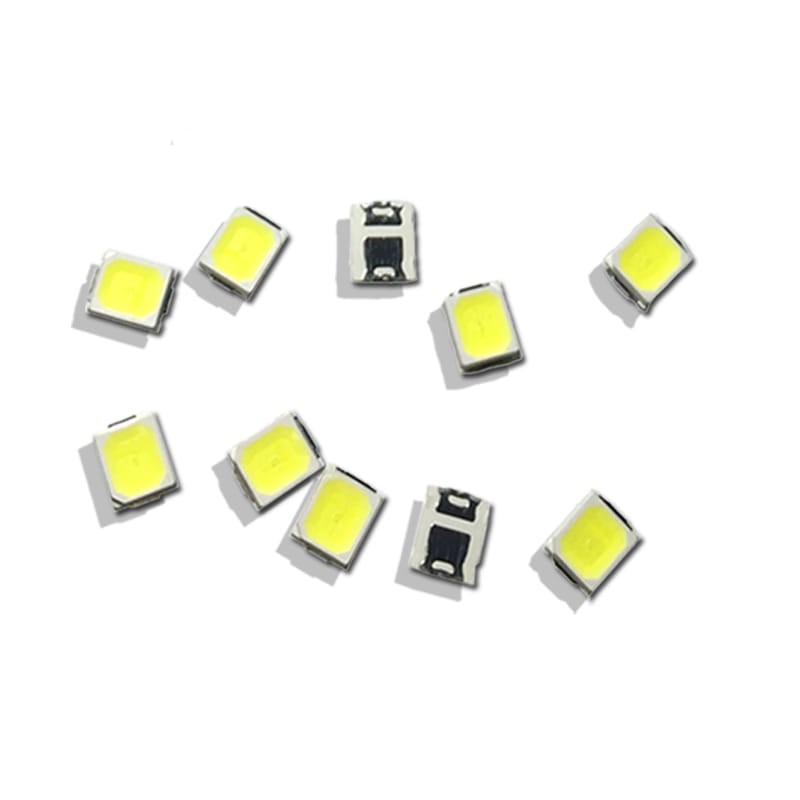

1000pcs FOR DIY LED lamp beads nature white / warm white / cool white SMD 2835 0.5W 55-60LM Super highlight light-emitting diode
The company will wholeheartedly for the general customers to provide electronic components. You can send to me a list of electronic components and I can prepare goods for quote and delivery according to an orderThe company's main: SMD/DIP electronic components, resistors, capacitors,diodes, leds, insurance tube, crystals, tantalum capacitor, thermal,varistor, aluminum electrolytic capacitor, magnetic beads, inductors,potentiometer, adjustable resistance, adjustable capacitance, discharge tube,TVS diode, schottky, power supply IC series of electronic components. Item No: TH2835WN2Product characteristic:The ultra high brightness luminous flux outputThe wide Luminous angleIt is suitable for all SMT assembly and welding processIt is suitable for carrier tape and reelThe number of the standard package: 4000PCS/ diskIt conforms to the ROHS certificationThe higher light color indexThe absolute maximum ratings (Ta=25 C)
| project | Parameter symbol | condition | unit |
|
|
|
|
|
| Peak forward current | IFp | 150 | mA |
| Reverse voltage | VR | 5.0 | V |
| Continuous working current | IF | 60 | mA |
| Recommended operating current | IF | 55 | mA |
| Operating temperature | Topr | -40 to 105 | ℃ |
| Storage temperature | Tstg | -40 to 110 | ℃ |
| Lead free soldering conditions | Tsol | 260℃For 3 Seconds | |
◆Photoelectric parameters(Ta=25℃)
| paramater | test condition | accord with | minimum value | Typical value | Maximum | unit |
| power | IF=60mA | Pd | - | 200 | - | mw |
| Correlated color temperature value | IF=60mA | CCT | 5000 | 6500 | 8000 | K |
| Forward voltage | IF=60mA | VF | 2.8 | 3.2 | 3.8 | v |
| Reverse leakage current | VR=5V | IR | / | / | 10 | μA |
| Chromaticity coordinates X/Y | IF=60mA | X | / | 0.31 | / |
|
| IF=60mA | Y | / | 0.33 | / |
| |
| Transmitted intensity | IF=60mA | IV | / | / | / | mcd |
| Luminous flux | IF=60mA | φv | 20 |
| 22 | LM |
| Color rendering index | IF=60mA | CRI | 80 | 83 | / | Ra |
| Luminous angle | IF=60mA | 2θ1/2 | / | 120 | / | deg |
◆Product package size and size of the recommended pad ◆Physical map
Product application:Indoor lighting: fluorescent lamp tubeCommercial lighting display: advertising words, advertising light boxLCD backlightDecorative lighting: flexible stripAutomotive interior lightingOther lighting and display Technical parameters:Voltage: 3.0-3.6V power: 0.5WForward current: 150mAColor temperature: 2700-8250KLuminous flux: 50-55LMColor rendering index: 80Luminous angle: 120 degreesChip size: 10*21 three chipDesign life: >50000 hoursDimensions: 2.8 (L) x 3.5 (W) x 1.3 (thick) mm
60mA working current, high light efficiency, low light decay with anti blackening and avoid color index phosphor poisoning function and general products is greater than 70Apply to ball bubble lamp, fluorescent lamp, flat lamp, advertising backlight, soft light, hard light and other fieldsCommercial lighting display: advertising words, advertising light box ,
