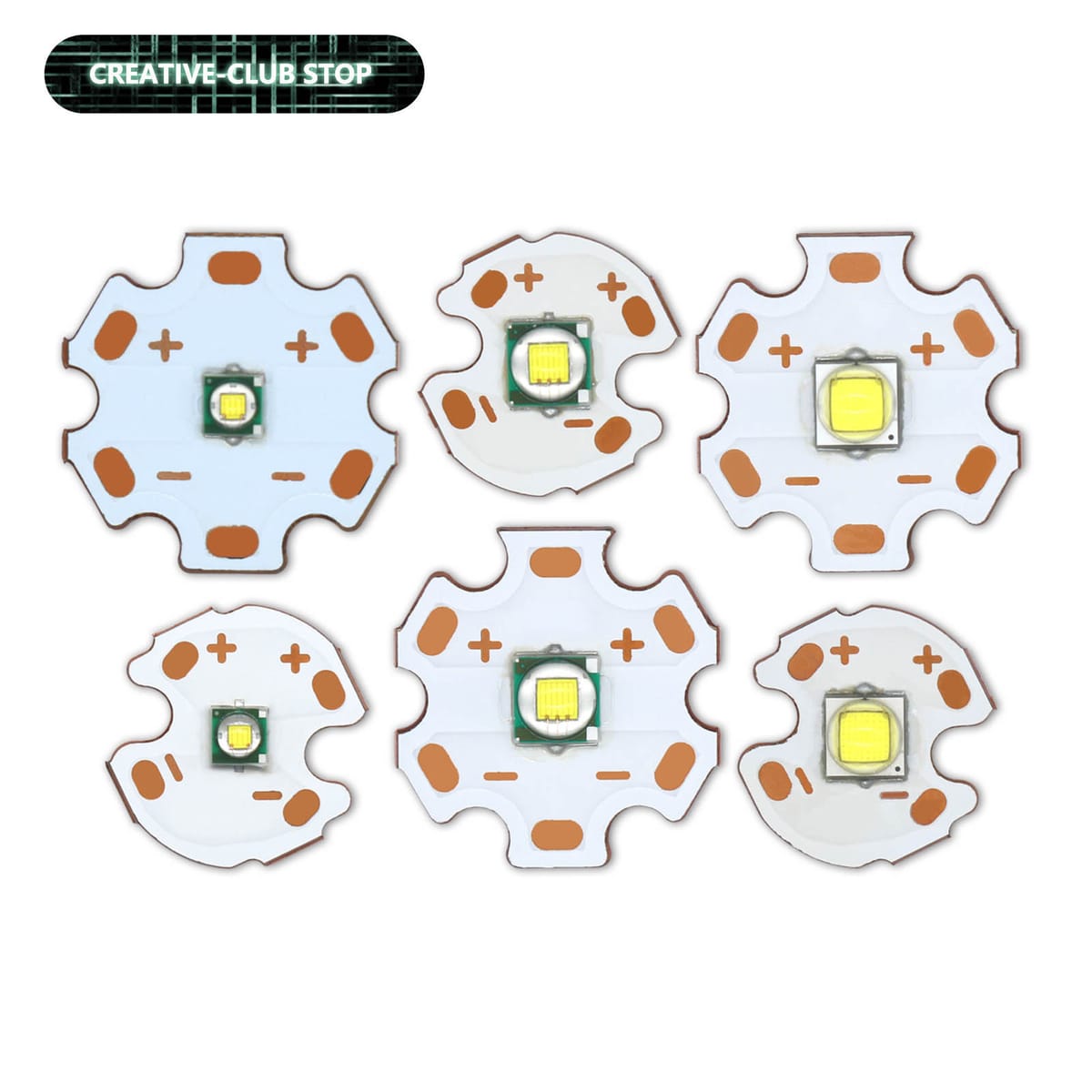

1-3W 5W 10W LED Beads High Power LED Flashlights Parts DIY 3V T6 Cold White Lamp DIY for Torch Car Lighting Bicycle Accessories
Product Details
1. Power : 1-3W-16mm
2. Voltage : DC3.0-3.4V
3. Current : 350-700mA
4. Color : 6500K
5. Lumen : 120-360ML
6. Chip size : 35 * 35mil
7. Lamp bead size : 16mm
8. Material : Copper substrate 1.5MM
9. Working conditions : LED requires a heat sink, and the temperature of the lamp beads cannot exceed 65 ℃
10. Welding Temperature : The temperature of electric soldering iron is 350℃, ≤ 2 seconds to complete welding.
1. Power : 5W-16mm
2. Voltage : DC3.4-3.6V
3. Current : 1000-1500mA
4. Color : 6500K
5. Lumen : 600ML
6. Chip size : 65*65mil
7. Lamp bead size : 16mm
8. Material : Copper substrate 1.5MM
9. Working conditions : LED requires a heat sink, and the temperature of the lamp beads cannot exceed 65 ℃
10. Welding Temperature : The temperature of electric soldering iron is 350℃, ≤ 2 seconds to complete welding.
1. Power : 10W-16mm
2. Voltage : DC3.4-3.8V
3. Current : 1500-2500mA
4. Color : 6500K
5. Lumen : 1200ML
6. Chip size : 80*80mil
7. Lamp bead size : 16mm
8. Material : Copper substrate 1.5MM
9. Working conditions : LED requires a heat sink, and the temperature of the lamp beads cannot exceed 65 ℃
10. Welding Temperature : The temperature of electric soldering iron is 350℃, ≤ 2 seconds to complete welding.
1. Power : 1-3W-20mm
2. Voltage : DC3.0-3.4V
3. Current : 350-700mA
4. Color : 6500K
5. Lumen : 120-360ML
6. Chip size : 35 * 35mil
7. Lamp bead size : 20mm
8. Material : Copper substrate 1.5MM
9. Working conditions : LED requires a heat sink, and the temperature of the lamp beads cannot exceed 65 ℃
10. Welding Temperature : The temperature of electric soldering iron is 350℃, ≤ 2 seconds to complete welding.
1. Power : 5W-20mm
2. Voltage : DC3.4-3.6V
3. Current : 1000-1500mA
4. Color : 6500K
5. Lumen : 600ML
6. Chip size : 65*65mil
7. Lamp bead size : 20mm
8. Material : Copper substrate 1.5MM
9. Working conditions : LED requires a heat sink, and the temperature of the lamp beads cannot exceed 65 ℃
10. Welding Temperature : The temperature of electric soldering iron is 350℃, ≤ 2 seconds to complete welding.
1. Power : 10W-20mm
2. Voltage : DC3.4-3.8V
3. Current : 1500-2500mA
4. Color : 6500K
5. Lumen : 1200ML
6. Chip size : 80*80mil
7. Lamp bead size : 16mm
8. Material : Copper substrate 1.5MM
9. Working conditions : LED requires a heat sink, and the temperature of the lamp beads cannot exceed 65 ℃
10. Welding Temperature : The temperature of electric soldering iron is 350℃, ≤ 2 seconds to complete welding.
▪ The thermal conductivity of copper substrate is twice that of aluminum substrate
▪ Copper substrate has a higher thermal conductivity
▪ The thermal conductivity of copper substrate follows higher standards
▪ The better the heat dissipation function of the copper substrate
,
