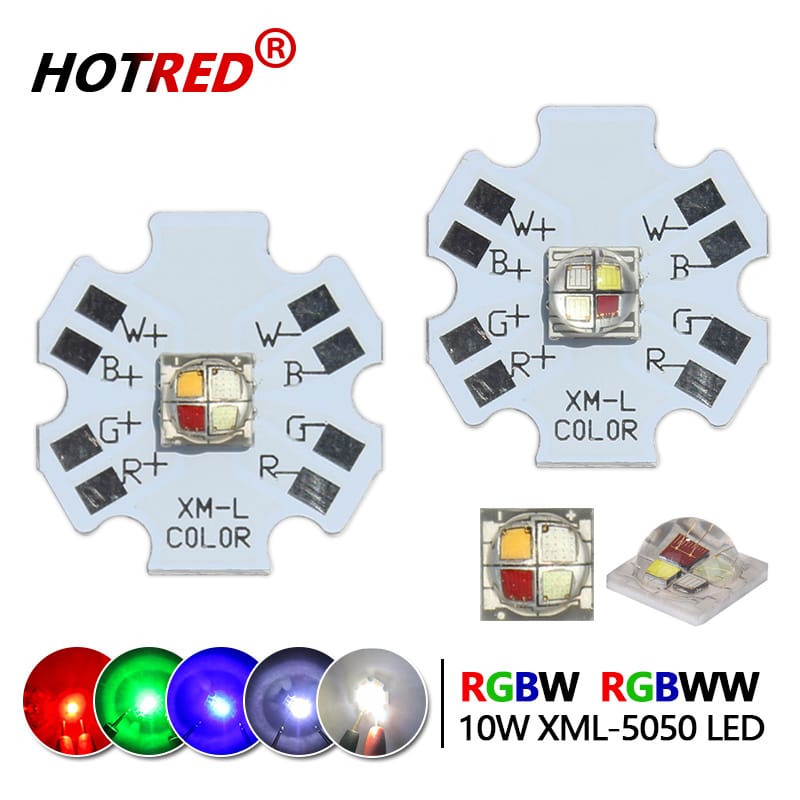

1-20pcs 10W 5050-T6L2 XLM RGBW RGBWW 4Chips Diode 12W Ceramic Lamp Red Green Blue Warm White Colorful Stage Lighting Bead DIY

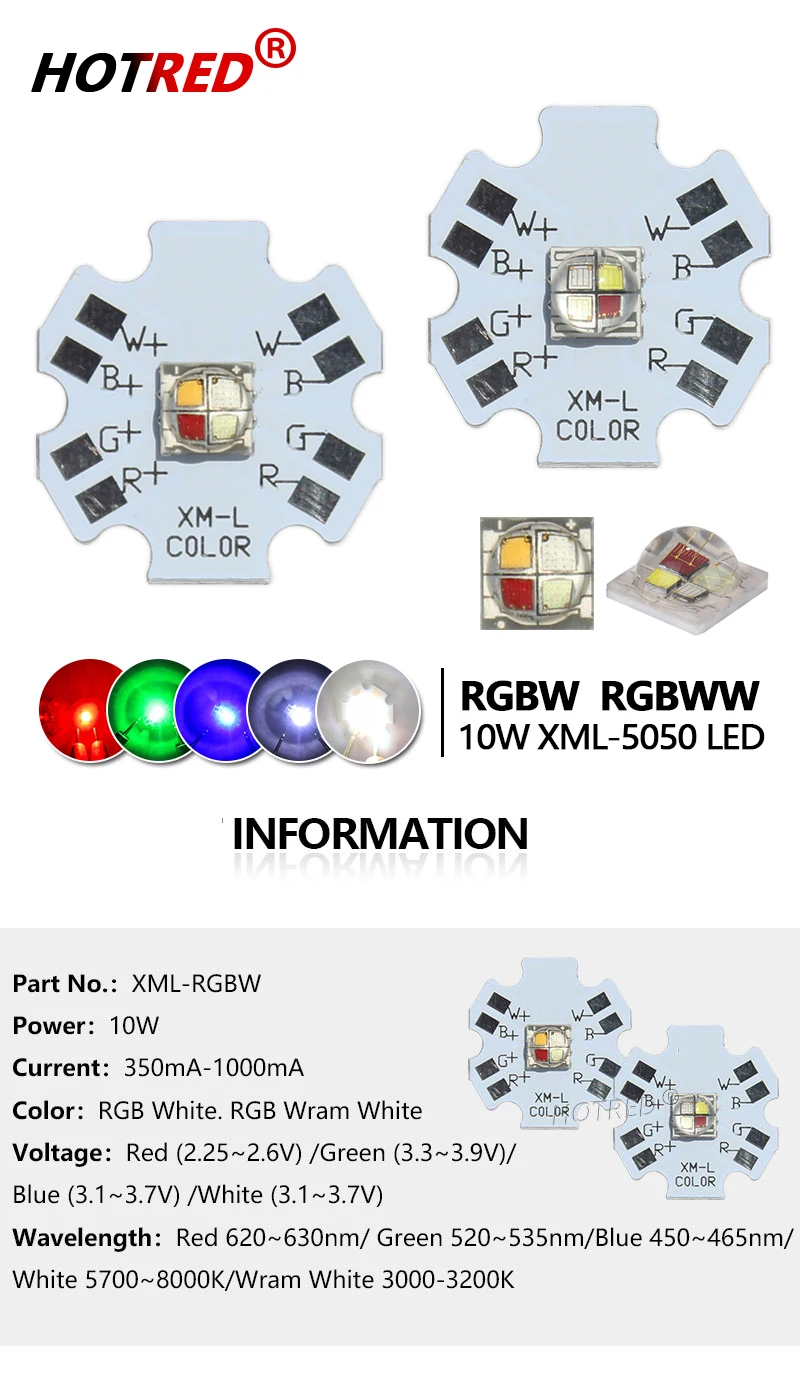

Model Name: 10W 5050 RGBW RGBWW LED
Emitted Color : RGB White/RGB Warm White
Wavelength: Red 620~630nm, Green 520~535nm; Blue 450~465nm; White 5700~8000K, Warm White 3000-3200K
Product Voltage: Red 2.25~2.6V, Green 3.3~3.9V, Blue 3.1~3.7V, White 3.1~3.7V
Maximum Drive Current: 1A
Maximum Power: 10W
Max Luminous Flux: Red 87.4LM, Green 114LM, Blue 39.8LM, White 100LM，Warm White 95LM
Viewing Angle: 120 Degree

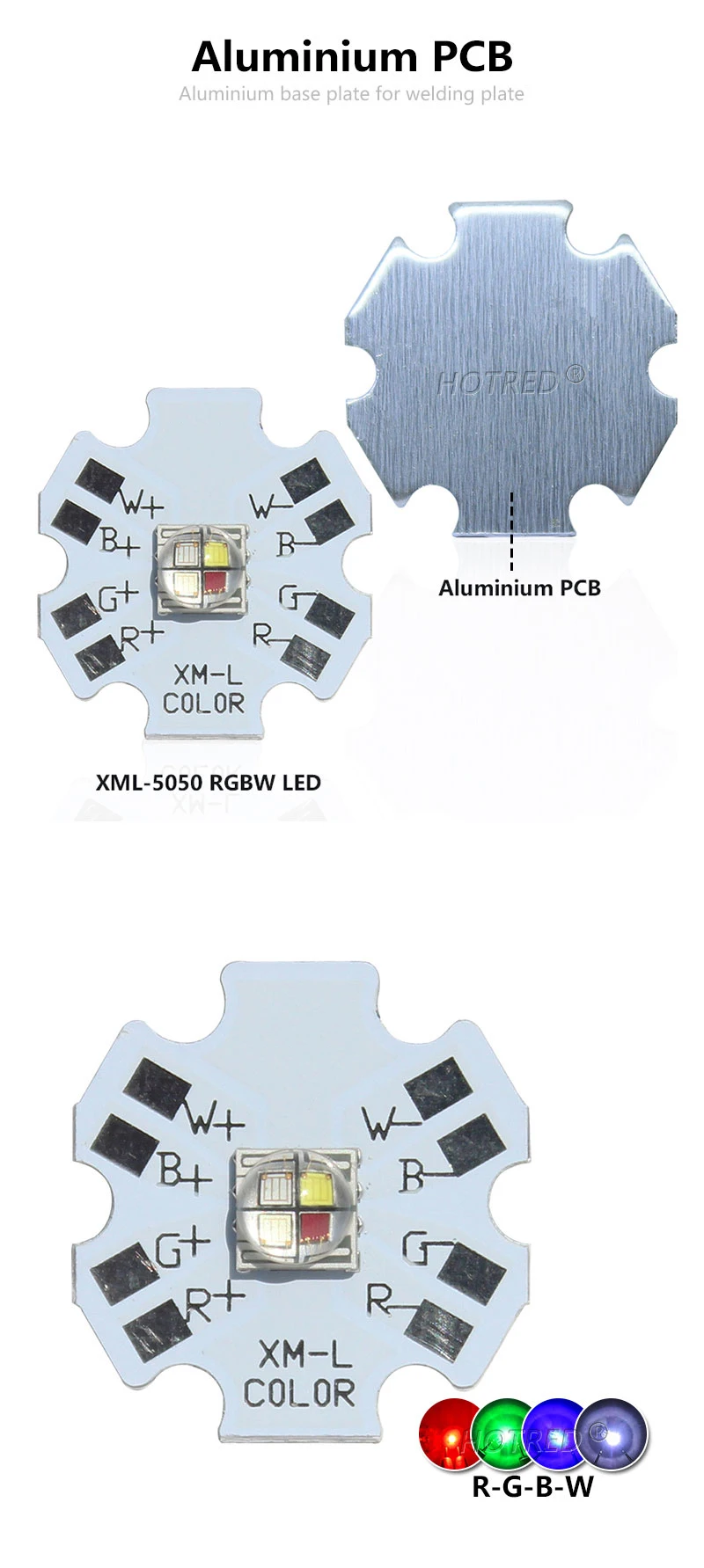

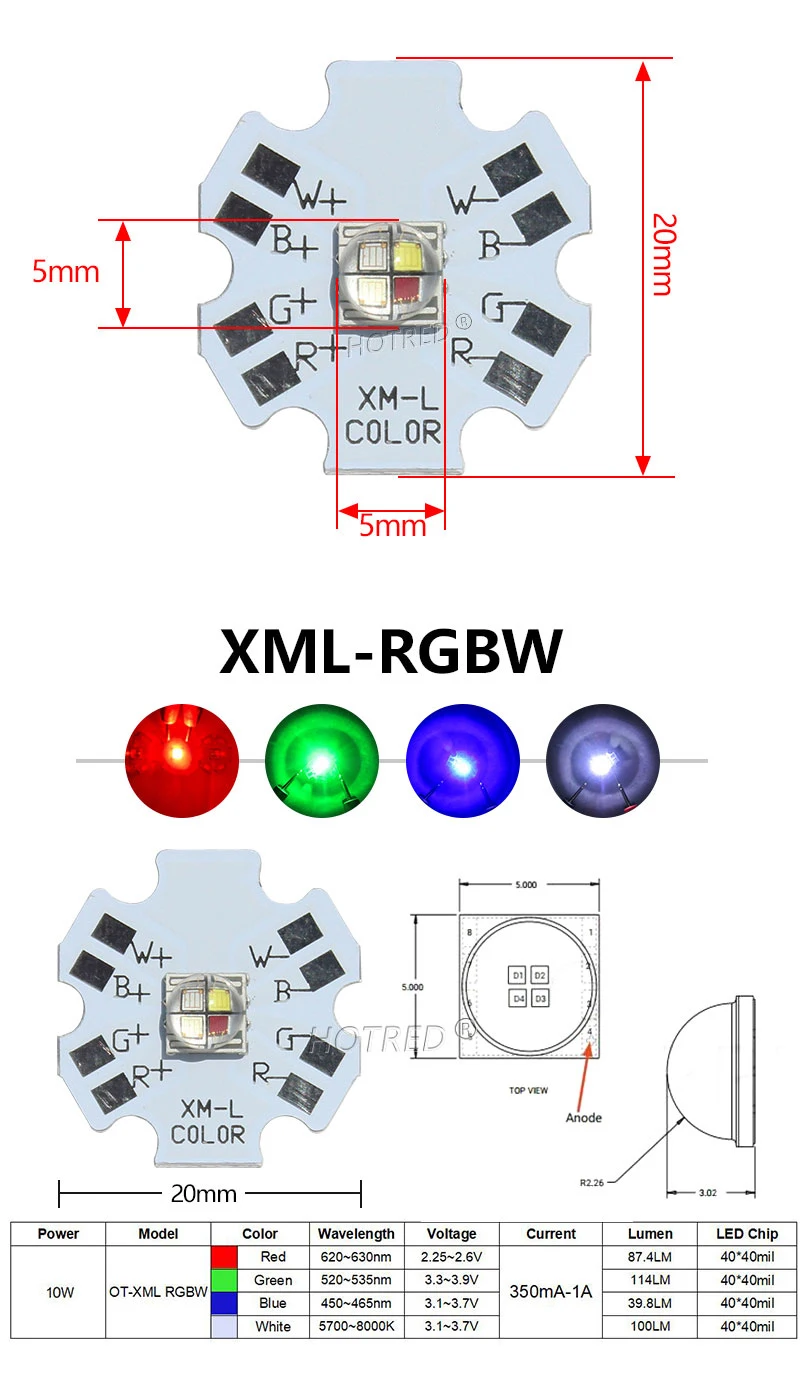

PCB Diameter: 20mm
*****Proper driver & heatsink is required.
*****10W means max power when you give max voltage and current, real power depends on the voltage and current given to the led.
,
